SDO HMI 2014-11-13 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.51 | 431.39 | 55.79 | 307.57 | 13.84 | 14.00 | 45.17 | 286.49 | 0.7195 | -413.7 | -247.4 | |
|
previous
or next observation for the same group /

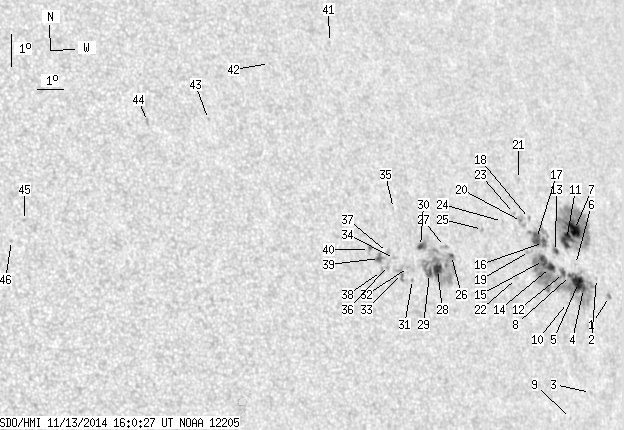

back to the solar disc SDO HMI 2014-11-13 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 2.32 | 0.39 | 1.76 | 12.48 | 17.55 | 48.73 | 283.91 | 0.7583 | -598.5 | -502.2 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 13.04 | 17.10 | 48.27 | 284.72 | 0.7541 | -124.0 | -143.0 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 9.65 | 16.06 | 47.24 | 280.33 | 0.7381 | -237.0 | -276.7 | |
| 2.49 | 138.32 | 1.85 | 101.01 | 12.77 | 16.43 | 47.61 | 284.47 | 0.7462 | -728.7 | -500.1 | |
| 10.75 | -4.00 | 7.94 | -4.00 | 12.96 | 16.25 | 47.43 | 284.75 | 0.7445 | -929.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 13.50 | 16.26 | 47.44 | 285.48 | 0.7455 | -197.0 | -229.4 | |
| 10.49 | 109.68 | 7.83 | 81.73 | 14.55 | 16.50 | 47.68 | 286.83 | 0.7501 | -850.3 | -191.5 | |
| 1.55 | -4.00 | 1.14 | -4.00 | 13.18 | 15.95 | 47.13 | 285.11 | 0.7414 | -732.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 8.91 | 15.05 | 46.23 | 279.43 | 0.7255 | -287.0 | -328.8 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 12.38 | 15.62 | 46.79 | 284.09 | 0.7364 | -427.0 | -417.8 | |
| 10.67 | -7.00 | 7.88 | -7.00 | 14.27 | 16.06 | 47.24 | 286.54 | 0.7446 | -875.4 | 999999 | |
| 1.72 | -4.00 | 1.26 | -4.00 | 13.25 | 15.65 | 46.83 | 285.26 | 0.7382 | -820.0 | 999999 | |
| 1.98 | 4.56 | 1.45 | 3.33 | 13.93 | 15.47 | 46.65 | 286.20 | 0.7373 | -695.0 | -417.0 | |
| 4.47 | -4.00 | 3.24 | -4.00 | 13.45 | 15.12 | 46.30 | 285.63 | 0.7325 | -1006.8 | 999999 | |
| 4.99 | -4.00 | 3.60 | -4.00 | 13.68 | 14.87 | 46.05 | 285.99 | 0.7300 | -1092.6 | 999999 | |
| 3.10 | 26.06 | 2.25 | 18.86 | 14.22 | 15.01 | 46.19 | 286.69 | 0.7327 | -743.9 | -589.8 | |
| 8.17 | -16.00 | 5.90 | -16.00 | 14.35 | 14.74 | 45.92 | 286.93 | 0.7298 | -889.5 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.37 | 14.96 | 14.60 | 45.78 | 287.79 | 0.7294 | -625.0 | -533.1 | |
| 0.00 | 2.49 | 0.00 | 1.79 | 13.97 | 14.33 | 45.51 | 286.50 | 0.7244 | -697.0 | -625.9 | |
| 0.00 | 6.71 | 0.00 | 4.81 | 14.89 | 14.22 | 45.40 | 287.78 | 0.7250 | -799.0 | -592.6 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 16.16 | 14.45 | 45.63 | 289.44 | 0.7305 | -385.0 | -385.9 | |
| 0.00 | 1.46 | 0.00 | 1.03 | 13.18 | 13.57 | 44.75 | 285.58 | 0.7140 | 258.0 | 199.5 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 15.14 | 13.99 | 45.16 | 288.18 | 0.7228 | -701.0 | -663.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 14.92 | 13.40 | 44.58 | 288.02 | 0.7156 | -434.0 | -451.2 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 14.71 | 12.49 | 43.67 | 287.96 | 0.7044 | -653.0 | -588.6 | |
| 1.12 | 80.95 | 0.76 | 54.34 | 13.97 | 11.01 | 42.19 | 287.30 | 0.6850 | -622.6 | -4.9 | |
| 0.00 | 3.10 | 0.00 | 2.09 | 14.25 | 10.79 | 41.97 | 287.77 | 0.6829 | -824.0 | -587.3 | |
| 8.26 | -26.00 | 5.53 | -26.00 | 13.57 | 10.35 | 41.52 | 286.90 | 0.6759 | 713.4 | 999999 | |
| 2.84 | -26.00 | 1.89 | -26.00 | 13.46 | 10.00 | 41.18 | 286.83 | 0.6713 | 758.2 | 999999 | |
| 2.15 | 9.29 | 1.43 | 6.21 | 14.28 | 9.81 | 40.99 | 288.09 | 0.6711 | 572.6 | 73.8 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 13.30 | 9.28 | 40.46 | 286.80 | 0.6619 | 40.0 | 159.8 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 13.67 | 9.19 | 40.37 | 287.36 | 0.6618 | -332.0 | -276.4 | |
| 0.00 | 6.80 | 0.00 | 4.45 | 13.50 | 8.88 | 40.05 | 287.20 | 0.6574 | 362.0 | 327.3 | |
| 0.00 | 1.55 | 0.00 | 1.01 | 13.96 | 8.69 | 39.87 | 287.94 | 0.6563 | -200.0 | -183.7 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 15.47 | 8.99 | 40.17 | 290.09 | 0.6643 | -498.0 | -497.9 | |
| 0.00 | 3.61 | 0.00 | 2.35 | 13.76 | 8.41 | 39.59 | 287.73 | 0.6522 | -100.0 | 156.8 | |
| 0.00 | 1.89 | 0.00 | 1.24 | 14.15 | 8.45 | 39.63 | 288.30 | 0.6538 | -271.0 | -265.1 | |
| 0.00 | 3.96 | 0.00 | 2.57 | 13.58 | 8.10 | 39.28 | 287.56 | 0.6478 | 572.0 | 531.5 | |
| 2.24 | 5.25 | 1.45 | 3.41 | 13.98 | 8.10 | 39.28 | 288.16 | 0.6489 | 824.2 | 569.6 | |
| 0.00 | 3.10 | 0.00 | 2.00 | 14.26 | 7.76 | 38.94 | 288.70 | 0.6454 | 620.0 | 603.0 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 20.63 | 7.80 | 38.97 | 298.03 | 0.6692 | 472.0 | 395.8 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 20.06 | 5.22 | 36.40 | 298.49 | 0.6366 | 532.0 | 461.0 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 18.41 | 2.47 | 33.65 | 297.49 | 0.5949 | 614.0 | 560.8 | |
| 0.00 | 2.24 | 0.00 | 1.34 | 18.41 | 0.20 | 31.38 | 298.88 | 0.5665 | 692.0 | 576.2 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 15.50 | 355.34 | 26.52 | 297.22 | 0.4858 | 622.0 | 451.0 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 14.91 | 354.81 | 25.99 | 296.48 | 0.4751 | 704.0 | 476.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
