SDO HMI 2014-11-13 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.07 | 0.00 | 12.44 | -9.20 | 338.95 | 10.13 | 217.63 | 0.2834 | 142.6 | -33.6 | |
|
previous
or next observation for the same group /

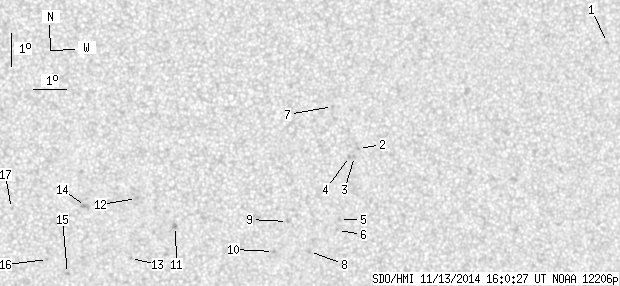

back to the solar disc SDO HMI 2014-11-13 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.70 | -4.55 | 350.75 | 21.93 | 251.01 | 0.3954 | 737.0 | 597.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -7.59 | 343.03 | 14.21 | 233.08 | 0.3057 | 799.0 | 674.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -7.83 | 342.91 | 14.09 | 232.23 | 0.3065 | 978.0 | 857.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -7.83 | 342.76 | 13.94 | 231.93 | 0.3045 | 927.0 | 756.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -9.73 | 342.52 | 13.70 | 226.76 | 0.3218 | 861.0 | 627.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -10.07 | 342.47 | 13.65 | 225.90 | 0.3250 | 709.0 | 549.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -6.32 | 342.19 | 13.37 | 234.99 | 0.2819 | 778.0 | 646.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.70 | 341.63 | 12.81 | 222.71 | 0.3227 | 829.0 | 611.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -9.77 | 340.92 | 12.10 | 223.12 | 0.3035 | 852.0 | 682.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.68 | 340.52 | 11.70 | 220.17 | 0.3103 | 871.0 | 708.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -9.89 | 337.49 | 8.67 | 213.66 | 0.2692 | -893.0 | -805.8 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -9.03 | 336.29 | 7.47 | 211.62 | 0.2459 | -890.0 | -703.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -10.85 | 336.15 | 7.32 | 207.60 | 0.2715 | -761.0 | -608.9 | |
| 0.00 | 3.96 | 0.00 | 2.02 | -9.26 | 334.75 | 5.93 | 205.62 | 0.2369 | -891.0 | -709.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -11.30 | 334.24 | 5.42 | 200.53 | 0.2652 | -926.0 | -750.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.86 | 333.63 | 4.80 | 198.92 | 0.2549 | -827.0 | -647.1 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -9.31 | 332.52 | 3.70 | 196.60 | 0.2239 | -729.0 | -467.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
