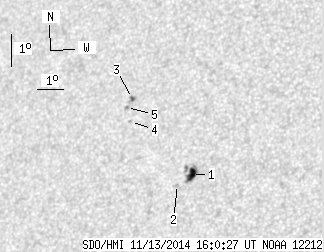

SDO HMI 2014-11-13 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.65 | 21.68 | 4.80 | 13.71 | 17.13 | 292.44 | -36.38 | 65.93 | 0.6229 | -232.8 | 24.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.62 | 14.37 | 4.13 | 8.96 | 16.53 | 293.32 | -35.50 | 66.44 | 0.6096 | -812.3 | -344.9 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 16.21 | 292.86 | -35.97 | 67.15 | 0.6143 | -483.0 | -394.8 | |
| 1.03 | 3.61 | 0.67 | 2.36 | 18.78 | 290.48 | -38.34 | 64.33 | 0.6539 | 806.0 | 588.2 | |
| 0.00 | 1.12 | 0.00 | 0.73 | 18.07 | 290.59 | -38.23 | 65.33 | 0.6498 | 709.0 | 637.5 | |
| 0.00 | 1.55 | 0.00 | 1.01 | 18.50 | 290.32 | -38.51 | 64.82 | 0.6547 | 773.0 | 675.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
