SDO HMI 2014-11-13 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.86 | 0.00 | 5.38 | 8.21 | 294.34 | -33.93 | 78.83 | 0.5791 | -186.2 | -4.4 | |
|
previous
or next observation for the same group /

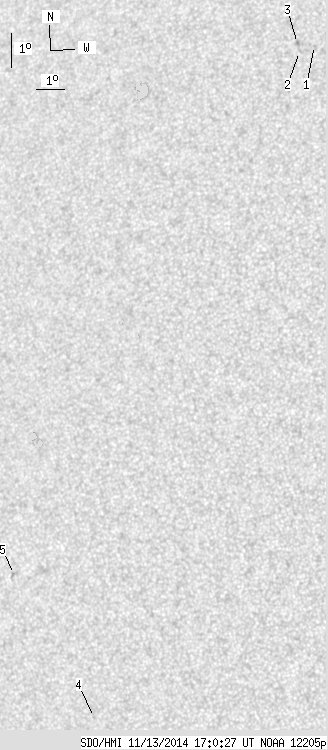

back to the solar disc SDO HMI 2014-11-13 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.40 | 18.08 | 299.42 | -28.85 | 59.90 | 0.5322 | -657.0 | -510.5 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 17.88 | 298.92 | -29.35 | 60.61 | 0.5375 | -533.0 | -509.6 | |
| 0.00 | 2.06 | 0.00 | 1.21 | 18.12 | 298.81 | -29.46 | 60.28 | 0.5404 | -784.0 | -620.2 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -2.22 | 293.28 | -34.99 | 98.14 | 0.5811 | 512.0 | 456.1 | |
| 0.00 | 3.87 | 0.00 | 2.43 | 1.94 | 290.33 | -37.94 | 90.73 | 0.6168 | 531.0 | 394.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
