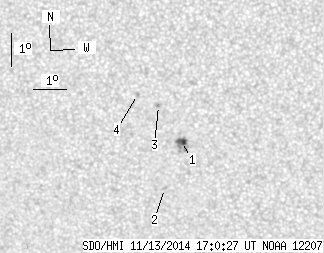

SDO HMI 2014-11-13 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.61 | 15.31 | 1.83 | 7.77 | -8.55 | 323.02 | -5.25 | 155.61 | 0.2212 | 1078.2 | 831.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.61 | 10.32 | 1.83 | 5.24 | -8.64 | 323.29 | -4.98 | 156.98 | 0.2205 | 1280.6 | 891.5 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -10.07 | 322.75 | -5.52 | 157.30 | 0.2465 | 833.0 | 682.9 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -7.55 | 322.61 | -5.66 | 151.95 | 0.2088 | 1084.0 | 847.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.22 | 321.98 | -6.28 | 148.57 | 0.2092 | 947.0 | 731.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
