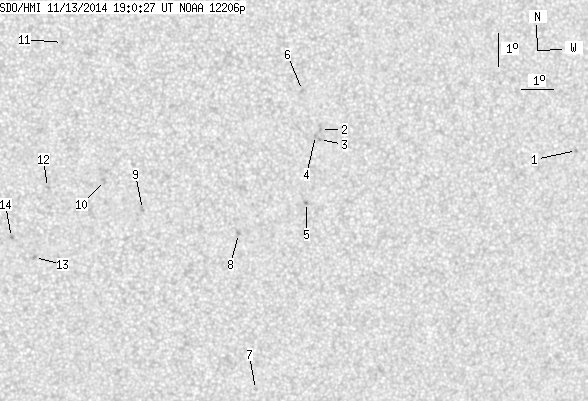

SDO HMI 2014-11-13 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.25 | 0.00 | 11.06 | -9.34 | 339.31 | 12.14 | 223.07 | 0.3043 | 124.2 | 31.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.52 | -8.35 | 351.15 | 23.99 | 244.39 | 0.4480 | 813.0 | 673.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -7.56 | 342.95 | 15.79 | 236.03 | 0.3267 | 841.0 | 694.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -7.86 | 342.93 | 15.77 | 235.23 | 0.3292 | 887.0 | 739.2 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -7.74 | 342.80 | 15.64 | 235.32 | 0.3263 | 919.0 | 732.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -9.76 | 342.61 | 15.44 | 230.09 | 0.3436 | 799.0 | 666.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -6.37 | 342.35 | 15.19 | 238.19 | 0.3078 | 858.0 | 691.3 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -15.50 | 341.34 | 14.17 | 216.72 | 0.3963 | 695.0 | 600.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -10.68 | 340.53 | 13.37 | 223.98 | 0.3287 | 954.0 | 833.3 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -9.91 | 337.55 | 10.38 | 218.52 | 0.2863 | -734.0 | -661.6 | |
| 0.00 | 2.75 | 0.00 | 1.41 | -9.01 | 336.36 | 9.20 | 217.21 | 0.2623 | -798.0 | -606.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -4.85 | 335.02 | 7.86 | 224.94 | 0.1937 | -873.0 | -628.5 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -9.21 | 334.64 | 7.47 | 211.25 | 0.2486 | -839.0 | -677.4 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -11.34 | 334.29 | 7.12 | 206.14 | 0.2772 | -800.0 | -624.9 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.72 | 333.58 | 6.41 | 204.81 | 0.2627 | -983.0 | -832.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
