SDO HMI 2014-11-13 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.72 | 24.95 | 5.92 | 15.38 | 16.91 | 292.71 | -34.45 | 65.33 | 0.5977 | -371.7 | 34.4 | |
|
previous
or next observation for the same group /

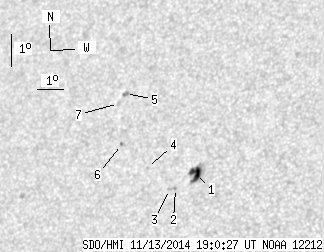

back to the solar disc SDO HMI 2014-11-13 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.72 | 15.57 | 5.92 | 9.48 | 16.49 | 293.63 | -33.53 | 65.52 | 0.5842 | -791.8 | -218.2 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 16.01 | 292.98 | -34.18 | 66.62 | 0.5906 | -658.0 | -597.0 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 15.97 | 292.76 | -34.40 | 66.79 | 0.5932 | -637.0 | -463.8 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 16.62 | 291.80 | -35.36 | 66.22 | 0.6083 | -802.0 | -583.5 | |
| 0.00 | 3.01 | 0.00 | 1.92 | 18.86 | 290.43 | -36.73 | 63.46 | 0.6349 | 833.0 | 637.1 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 17.29 | 290.66 | -36.51 | 65.72 | 0.6255 | 795.0 | 698.2 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 18.54 | 290.24 | -36.93 | 64.02 | 0.6359 | 726.0 | 604.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
