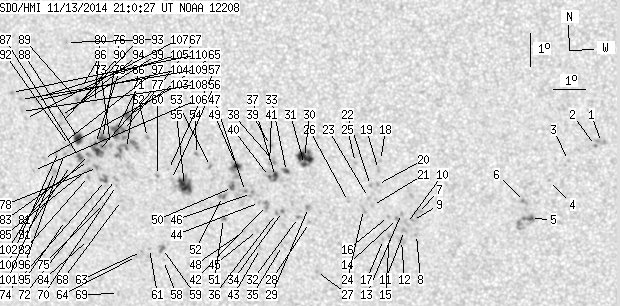

SDO HMI 2014-11-13 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.46 | 327.96 | 31.10 | 177.07 | -11.74 | 308.25 | -17.80 | 131.20 | 0.3971 | -37.4 | -62.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.73 | 0.00 | 2.42 | -10.69 | 320.20 | -5.86 | 157.02 | 0.2582 | 763.0 | 767.0 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.78 | 320.01 | -6.04 | 156.53 | 0.2609 | 879.0 | 747.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.24 | 319.18 | -6.88 | 154.48 | 0.2738 | 784.0 | 556.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.86 | 318.58 | -7.47 | 153.59 | 0.2874 | -901.0 | -686.2 | |
| 1.12 | 13.59 | 0.58 | 7.08 | -13.03 | 317.97 | -8.09 | 153.57 | 0.3095 | 935.4 | 230.1 | |
| 0.00 | 2.92 | 0.00 | 1.52 | -12.51 | 317.80 | -8.26 | 152.30 | 0.3031 | 963.0 | 813.5 | |
| 0.00 | 4.82 | 0.00 | 2.53 | -12.90 | 314.48 | -11.58 | 144.41 | 0.3376 | 758.0 | 812.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -13.55 | 314.42 | -11.64 | 145.38 | 0.3468 | 714.0 | 677.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.12 | 314.31 | -11.74 | 144.41 | 0.3421 | 1048.0 | 855.1 | |
| 0.00 | 3.10 | 0.00 | 1.63 | -13.22 | 314.12 | -11.93 | 144.14 | 0.3452 | 807.0 | 725.6 | |
| 0.00 | 2.58 | 0.00 | 1.36 | -13.43 | 314.05 | -12.01 | 144.35 | 0.3487 | 1042.0 | 776.0 | |
| 0.00 | 5.68 | 0.00 | 3.00 | -13.74 | 313.94 | -12.12 | 144.63 | 0.3539 | 850.0 | 578.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -12.91 | 313.98 | -12.07 | 143.27 | 0.3425 | 969.0 | 793.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -13.07 | 313.85 | -12.21 | 143.25 | 0.3458 | 935.0 | 841.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -13.59 | 313.57 | -12.49 | 143.57 | 0.3554 | 908.0 | 745.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -13.01 | 313.57 | -12.48 | 142.53 | 0.3478 | 845.0 | 682.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -13.72 | 313.38 | -12.68 | 143.36 | 0.3589 | 660.0 | 589.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -11.29 | 313.41 | -12.65 | 138.86 | 0.3279 | 933.0 | 763.9 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -11.56 | 313.33 | -12.72 | 139.26 | 0.3321 | 853.0 | 734.1 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -12.02 | 313.28 | -12.78 | 140.05 | 0.3384 | 1101.0 | 947.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.67 | 313.09 | -12.97 | 140.88 | 0.3485 | 776.0 | 660.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.06 | 313.06 | -13.00 | 139.64 | 0.3411 | 867.0 | 700.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -12.43 | 312.98 | -13.08 | 140.18 | 0.3466 | 688.0 | 622.7 | |
| 0.00 | 3.10 | 0.00 | 1.64 | -12.80 | 312.80 | -13.25 | 140.50 | 0.3530 | 757.0 | 552.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -11.36 | 312.63 | -13.43 | 137.32 | 0.3373 | 988.0 | 866.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.56 | 312.35 | -13.71 | 139.10 | 0.3549 | 786.0 | 646.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -14.74 | 311.20 | -14.86 | 140.73 | 0.3934 | 818.0 | 657.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.22 | 311.08 | -14.97 | 137.85 | 0.3765 | 818.0 | 608.0 | |
| 0.00 | 2.84 | 0.00 | 1.51 | -12.76 | 311.08 | -14.98 | 136.99 | 0.3711 | 948.0 | 847.1 | |
| 8.86 | 20.56 | 4.69 | 10.88 | -11.22 | 311.05 | -15.01 | 133.87 | 0.3540 | 1132.0 | 795.4 | |
| 1.55 | -30.00 | 0.82 | -30.00 | -11.44 | 311.03 | -15.02 | 134.29 | 0.3565 | 902.6 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.24 | -13.07 | 310.75 | -15.31 | 136.95 | 0.3784 | 865.0 | 664.3 | |
| 1.46 | 3.87 | 0.78 | 2.06 | -11.66 | 310.46 | -15.60 | 133.68 | 0.3658 | 1024.4 | 669.3 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -12.89 | 310.25 | -15.81 | 135.71 | 0.3819 | 951.0 | 794.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.94 | 310.18 | -15.88 | 137.50 | 0.3948 | 626.0 | 474.8 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -12.96 | 310.06 | -16.00 | 135.49 | 0.3848 | 718.0 | 576.9 | |
| 2.75 | 10.41 | 1.47 | 5.55 | -11.82 | 310.10 | -15.96 | 133.36 | 0.3717 | 1091.9 | 575.0 | |
| 0.00 | 2.92 | 0.00 | 1.56 | -11.33 | 310.07 | -15.99 | 132.30 | 0.3668 | 753.0 | 666.8 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -10.87 | 310.00 | -16.06 | 131.22 | 0.3628 | 852.0 | 716.8 | |
| 0.60 | -37.00 | 0.32 | -37.00 | -11.82 | 309.91 | -16.15 | 133.03 | 0.3740 | 709.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -11.45 | 309.93 | -16.12 | 132.32 | 0.3698 | 612.0 | 505.2 | |
| 0.00 | 4.73 | 0.00 | 2.54 | -12.71 | 309.76 | -16.30 | 134.50 | 0.3856 | 792.0 | 725.7 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -14.05 | 309.47 | -16.59 | 136.45 | 0.4037 | 822.0 | 601.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -12.63 | 309.54 | -16.52 | 133.96 | 0.3871 | 679.0 | 550.7 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -13.49 | 309.42 | -16.64 | 135.36 | 0.3981 | 732.0 | 560.2 | |
| 0.00 | 2.58 | 0.00 | 1.38 | -12.35 | 309.31 | -16.75 | 133.04 | 0.3869 | 804.0 | 773.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -12.29 | 309.12 | -16.94 | 132.61 | 0.3884 | 914.0 | 818.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -13.53 | 308.97 | -17.09 | 134.68 | 0.4036 | 492.0 | 422.3 | |
| 2.41 | 11.70 | 1.29 | 6.27 | -11.50 | 308.89 | -17.17 | 130.65 | 0.3829 | -740.5 | -116.8 | |
| 1.46 | 4.64 | 0.79 | 2.50 | -12.18 | 308.72 | -17.34 | 131.72 | 0.3920 | 957.0 | 717.6 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -13.14 | 308.36 | -17.70 | 132.97 | 0.4064 | -948.0 | -803.5 | |
| 0.00 | 3.96 | 0.00 | 2.14 | -12.46 | 308.38 | -17.68 | 131.72 | 0.3990 | 903.0 | 734.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -11.54 | 308.06 | -18.00 | 129.42 | 0.3936 | -957.0 | -790.8 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -11.18 | 307.64 | -18.42 | 128.05 | 0.3954 | -1019.0 | -877.9 | |
| 10.84 | 22.71 | 5.88 | 12.32 | -12.14 | 307.19 | -18.87 | 129.29 | 0.4103 | 663.5 | 232.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -11.96 | 306.78 | -19.28 | 128.36 | 0.4136 | -731.0 | -523.6 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -11.66 | 306.71 | -19.35 | 127.66 | 0.4117 | 681.0 | 507.6 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -14.47 | 306.31 | -19.75 | 132.28 | 0.4441 | -700.0 | -569.8 | |
| 0.86 | 3.96 | 0.47 | 2.18 | -14.10 | 306.31 | -19.75 | 131.64 | 0.4403 | -1044.7 | -882.9 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -11.85 | 306.34 | -19.72 | 127.52 | 0.4181 | 785.0 | 710.2 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -14.11 | 305.89 | -20.17 | 131.06 | 0.4454 | -782.0 | -700.4 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -10.69 | 306.10 | -19.95 | 124.89 | 0.4106 | -984.0 | -819.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -14.20 | 305.62 | -20.44 | 130.86 | 0.4495 | -889.0 | -686.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -14.36 | 305.44 | -20.62 | 130.89 | 0.4532 | -750.0 | -643.8 | |
| 2.67 | 5.33 | 1.45 | 2.90 | -10.06 | 305.50 | -20.55 | 122.82 | 0.4131 | -1085.6 | -847.5 | |
| 0.00 | 16.34 | 0.00 | 8.92 | -11.04 | 305.40 | -20.66 | 124.67 | 0.4228 | -1090.0 | -909.0 | |
| 0.95 | 42.32 | 0.52 | 23.17 | -10.49 | 305.34 | -20.71 | 123.50 | 0.4188 | -1276.5 | -849.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -12.64 | 305.11 | -20.95 | 127.37 | 0.4408 | -742.0 | -610.9 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -15.53 | 304.72 | -21.33 | 131.91 | 0.4730 | -758.0 | -620.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -12.18 | 304.99 | -21.07 | 126.35 | 0.4382 | -729.0 | -587.5 | |
| 4.82 | -67.00 | 2.63 | -67.00 | -10.52 | 305.08 | -20.97 | 123.25 | 0.4226 | -1050.8 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -11.99 | 304.97 | -21.09 | 125.98 | 0.4368 | -942.0 | -789.6 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -10.92 | 304.89 | -21.17 | 123.81 | 0.4285 | -1080.0 | -882.2 | |
| 0.69 | 5.42 | 0.38 | 2.99 | -12.03 | 304.64 | -21.42 | 125.64 | 0.4413 | -961.6 | -852.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -12.74 | 304.51 | -21.55 | 126.80 | 0.4492 | -527.0 | -481.7 | |
| 3.35 | -67.00 | 1.84 | -67.00 | -10.74 | 304.65 | -21.41 | 123.16 | 0.4303 | -993.0 | 999999 | |
| 4.73 | -67.00 | 2.60 | -67.00 | -11.14 | 304.45 | -21.60 | 123.71 | 0.4362 | -1012.9 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.80 | -11.64 | 304.41 | -21.64 | 124.61 | 0.4408 | -972.0 | -862.0 | |
| 0.86 | -67.00 | 0.47 | -67.00 | -10.90 | 304.41 | -21.65 | 123.18 | 0.4347 | -860.9 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -9.65 | 304.47 | -21.59 | 120.73 | 0.4239 | -679.0 | -603.9 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -11.24 | 304.15 | -21.91 | 123.54 | 0.4409 | -975.0 | -892.5 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -11.92 | 304.09 | -21.96 | 124.76 | 0.4473 | -697.0 | -609.1 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -11.43 | 304.14 | -21.92 | 123.88 | 0.4426 | -953.0 | -768.9 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -13.86 | 303.91 | -22.15 | 128.07 | 0.4668 | -631.0 | -493.0 | |
| 0.00 | 2.67 | 0.00 | 1.47 | -11.70 | 304.08 | -21.98 | 124.34 | 0.4457 | -872.0 | -723.3 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -9.20 | 304.08 | -21.98 | 119.37 | 0.4258 | -728.0 | -584.6 | |
| 1.98 | 4.99 | 1.09 | 2.76 | -11.34 | 303.85 | -22.21 | 123.38 | 0.4457 | -976.8 | -772.5 | |
| 5.50 | 7.91 | 3.03 | 4.36 | -10.76 | 303.86 | -22.19 | 122.27 | 0.4407 | -1060.3 | -719.4 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -9.57 | 303.92 | -22.14 | 119.95 | 0.4307 | -978.0 | -790.2 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -9.78 | 303.87 | -22.18 | 120.34 | 0.4330 | -865.0 | -732.0 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -11.59 | 303.53 | -22.52 | 123.49 | 0.4519 | -528.0 | -425.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -10.98 | 303.55 | -22.51 | 122.34 | 0.4466 | -692.0 | -603.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -7.85 | 303.67 | -22.38 | 116.08 | 0.4218 | -817.0 | -676.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -10.00 | 303.53 | -22.53 | 120.40 | 0.4393 | -784.0 | -591.1 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -13.29 | 303.21 | -22.85 | 126.22 | 0.4704 | -646.0 | -593.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -11.23 | 303.37 | -22.69 | 122.61 | 0.4511 | -713.0 | -610.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -10.89 | 303.36 | -22.69 | 121.96 | 0.4484 | -605.0 | -508.6 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -10.31 | 303.31 | -22.75 | 120.78 | 0.4446 | -776.0 | -648.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -10.07 | 303.33 | -22.73 | 120.31 | 0.4425 | -752.0 | -640.5 | |
| 0.00 | 4.30 | 0.00 | 2.39 | -11.17 | 303.18 | -22.88 | 122.29 | 0.4531 | -483.0 | -483.1 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -11.79 | 302.99 | -23.07 | 123.24 | 0.4605 | -827.0 | -644.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -12.19 | 302.75 | -23.30 | 123.73 | 0.4669 | -640.0 | -556.4 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -11.39 | 302.66 | -23.39 | 122.15 | 0.4617 | -676.0 | -509.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -9.63 | 302.58 | -23.48 | 118.65 | 0.4495 | -960.0 | -848.8 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -9.57 | 302.48 | -23.57 | 118.44 | 0.4504 | -612.0 | -516.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -11.77 | 302.30 | -23.76 | 122.46 | 0.4694 | -632.0 | -530.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -10.18 | 302.17 | -23.89 | 119.33 | 0.4591 | -670.0 | -486.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -9.97 | 302.06 | -24.00 | 118.81 | 0.4591 | -644.0 | -571.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -9.61 | 302.05 | -24.00 | 118.09 | 0.4566 | -730.0 | -504.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -9.40 | 301.77 | -24.29 | 117.42 | 0.4590 | -662.0 | -555.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
