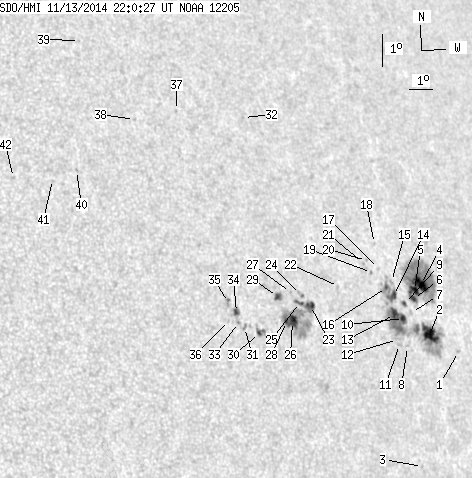

SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.07 | 343.45 | 54.76 | 261.07 | 13.93 | 14.14 | 48.63 | 285.90 | 0.7588 | -322.4 | -208.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.98 | 12.39 | 17.66 | 52.16 | 283.34 | 0.7949 | -417.0 | -380.6 | |
| 15.23 | 57.72 | 12.06 | 45.71 | 12.96 | 16.40 | 50.89 | 284.22 | 0.7824 | -763.3 | -339.3 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 9.04 | 15.13 | 49.63 | 279.30 | 0.7648 | -209.0 | -238.0 | |
| 10.49 | 102.62 | 8.35 | 81.61 | 14.48 | 16.42 | 50.92 | 286.15 | 0.7847 | -788.8 | -196.4 | |
| 3.78 | -4.00 | 2.99 | -4.00 | 14.31 | 16.08 | 50.57 | 285.99 | 0.7809 | -875.2 | 999999 | |
| 3.01 | -4.00 | 2.37 | -4.00 | 14.07 | 15.95 | 50.45 | 285.71 | 0.7792 | -671.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.28 | 13.65 | 15.73 | 50.23 | 285.21 | 0.7763 | -557.0 | -487.1 | |
| 0.00 | 0.60 | 0.00 | 0.47 | 12.64 | 15.26 | 49.75 | 283.98 | 0.7698 | -433.0 | -388.4 | |
| 1.29 | 2.32 | 1.00 | 1.81 | 13.94 | 15.48 | 49.98 | 285.62 | 0.7740 | -584.2 | -535.4 | |
| 3.18 | 36.90 | 2.47 | 28.41 | 13.49 | 15.30 | 49.80 | 285.07 | 0.7714 | -834.6 | -626.8 | |
| 0.00 | 1.81 | 0.00 | 1.39 | 12.72 | 14.90 | 49.39 | 284.13 | 0.7660 | -456.0 | -444.2 | |
| 0.00 | 1.63 | 0.00 | 1.25 | 12.87 | 14.85 | 49.34 | 284.34 | 0.7656 | -463.0 | -443.3 | |
| 6.45 | -10.00 | 4.97 | -10.00 | 13.63 | 14.91 | 49.41 | 285.31 | 0.7675 | -982.9 | 999999 | |
| 3.78 | 21.50 | 2.92 | 16.55 | 14.20 | 15.04 | 49.53 | 286.03 | 0.7697 | -773.1 | -626.8 | |
| 0.00 | 1.63 | 0.00 | 1.26 | 14.62 | 15.07 | 49.57 | 286.57 | 0.7707 | -468.0 | -412.7 | |
| 1.55 | -14.00 | 1.19 | -14.00 | 14.45 | 14.78 | 49.28 | 286.40 | 0.7673 | -774.7 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.19 | 15.04 | 14.58 | 49.08 | 287.20 | 0.7662 | -593.0 | -452.1 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 15.80 | 14.64 | 49.14 | 288.17 | 0.7682 | -463.0 | -473.1 | |
| 0.00 | 1.20 | 0.00 | 0.92 | 14.93 | 14.22 | 48.72 | 287.13 | 0.7621 | -602.0 | -562.9 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 15.30 | 14.10 | 48.60 | 287.64 | 0.7615 | -466.0 | -547.1 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 15.22 | 13.94 | 48.43 | 287.56 | 0.7596 | -437.0 | -496.0 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 14.57 | 12.60 | 47.09 | 286.99 | 0.7436 | -605.0 | -504.1 | |
| 4.73 | 71.83 | 3.40 | 51.02 | 14.04 | 11.21 | 45.70 | 286.58 | 0.7268 | -488.7 | 36.5 | |
| 0.00 | 3.35 | 0.00 | 2.40 | 14.39 | 10.86 | 45.35 | 287.13 | 0.7235 | -482.0 | -415.2 | |
| 1.72 | -23.00 | 1.23 | -23.00 | 14.15 | 10.75 | 45.25 | 286.83 | 0.7218 | -735.8 | 999999 | |
| 8.43 | -23.00 | 5.96 | -23.00 | 13.59 | 10.31 | 44.80 | 286.15 | 0.7155 | 762.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 14.47 | 10.44 | 44.94 | 287.33 | 0.7188 | -269.0 | -363.1 | |
| 2.41 | -23.00 | 1.69 | -23.00 | 13.60 | 10.05 | 44.55 | 286.22 | 0.7125 | 650.1 | 999999 | |
| 2.58 | 4.90 | 1.81 | 3.45 | 14.37 | 9.86 | 44.35 | 287.33 | 0.7118 | 407.3 | 129.2 | |
| 1.29 | 6.71 | 0.89 | 4.62 | 13.28 | 8.83 | 43.33 | 286.06 | 0.6973 | 564.5 | 494.0 | |
| 0.00 | 2.41 | 0.00 | 1.64 | 13.48 | 8.25 | 42.74 | 286.48 | 0.6906 | 663.0 | 498.8 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 19.87 | 10.05 | 44.55 | 294.75 | 0.7288 | 498.0 | 487.3 | |
| 0.00 | 1.38 | 0.00 | 0.94 | 13.64 | 8.03 | 42.53 | 286.77 | 0.6884 | 608.0 | 497.2 | |
| 2.15 | 5.59 | 1.46 | 3.81 | 13.95 | 8.02 | 42.52 | 287.20 | 0.6889 | 689.5 | 534.0 | |
| 0.00 | 3.10 | 0.00 | 2.10 | 14.26 | 7.76 | 42.26 | 287.72 | 0.6865 | 670.0 | 612.6 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 13.72 | 7.64 | 42.13 | 286.97 | 0.6837 | 728.0 | 648.8 | |
| 0.00 | 1.20 | 0.00 | 0.83 | 20.19 | 7.25 | 41.75 | 296.22 | 0.6990 | 469.0 | 375.9 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 19.97 | 5.42 | 39.92 | 296.68 | 0.6773 | 466.0 | 451.5 | |
| 0.00 | 0.34 | 0.00 | 0.23 | 22.50 | 3.97 | 38.46 | 300.91 | 0.6721 | 558.0 | 562.5 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 18.47 | 2.67 | 37.16 | 295.78 | 0.6386 | 365.0 | 463.1 | |
| 0.00 | 0.34 | 0.00 | 0.22 | 18.23 | 1.67 | 36.16 | 295.89 | 0.6253 | 440.0 | 492.0 | |
| 0.00 | 1.55 | 0.00 | 0.96 | 18.33 | 0.19 | 34.69 | 296.81 | 0.6076 | 805.0 | 568.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
