SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.75 | 22.35 | 1.39 | 11.36 | -9.42 | 322.85 | -2.65 | 168.04 | 0.2211 | 888.7 | 756.3 | |
|
previous
or next observation for the same group /

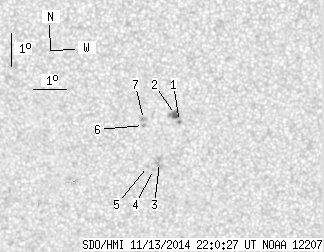

back to the solar disc SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.74 | -8.85 | 323.40 | -2.10 | 170.01 | 0.2097 | 1015.0 | 863.6 | |
| 2.75 | 6.11 | 1.39 | 3.09 | -8.64 | 323.29 | -2.22 | 169.27 | 0.2065 | 1223.3 | 916.6 | |
| 0.00 | 8.34 | 0.00 | 4.25 | -10.10 | 322.79 | -2.71 | 168.39 | 0.2326 | 596.0 | 716.4 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.31 | 322.61 | -2.90 | 167.83 | 0.2368 | 638.0 | 538.7 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.22 | 322.43 | -3.08 | 167.01 | 0.2360 | 798.0 | 612.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.98 | 322.32 | -3.18 | 165.21 | 0.2158 | 849.0 | 681.5 | |
| 0.00 | 2.32 | 0.00 | 1.18 | -8.80 | 322.32 | -3.18 | 164.99 | 0.2128 | 971.0 | 847.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
