SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.72 | 334.75 | 31.20 | 180.25 | -11.75 | 308.24 | -17.27 | 132.05 | 0.3905 | 42.7 | -51.2 | |
|
previous
or next observation for the same group /

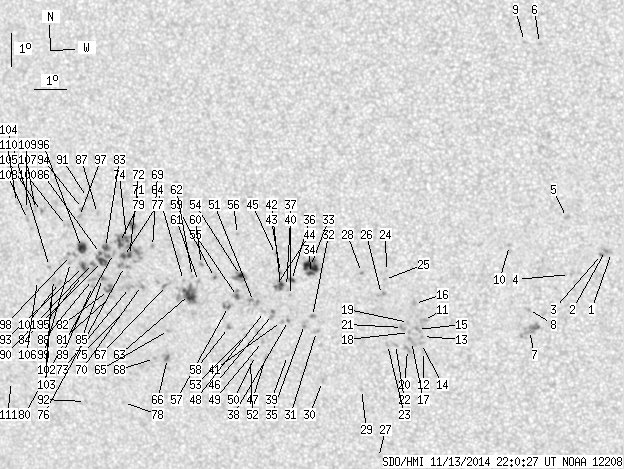

back to the solar disc SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.72 | 320.34 | -5.17 | 159.53 | 0.2543 | 745.0 | 599.0 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -10.66 | 320.16 | -5.35 | 158.79 | 0.2544 | 992.0 | 848.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -10.78 | 320.03 | -5.47 | 158.53 | 0.2571 | 905.0 | 724.7 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -11.39 | 319.05 | -6.46 | 156.07 | 0.2731 | 514.0 | 589.7 | |
| 0.00 | 2.49 | 0.00 | 1.27 | -9.66 | 318.99 | -6.51 | 152.96 | 0.2470 | 869.0 | 728.4 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -4.42 | 318.27 | -7.24 | 135.74 | 0.1809 | 826.0 | 679.6 | |
| 0.00 | 14.11 | 0.00 | 7.34 | -13.12 | 317.77 | -7.73 | 154.73 | 0.3082 | 410.0 | 370.9 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -12.48 | 317.76 | -7.74 | 153.74 | 0.2986 | 970.0 | 778.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.36 | 317.82 | -7.69 | 133.79 | 0.1856 | 658.0 | 535.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -10.52 | 317.24 | -8.26 | 148.82 | 0.2741 | 814.0 | 713.9 | |
| 0.00 | 3.44 | 0.00 | 1.81 | -12.84 | 314.52 | -10.99 | 145.68 | 0.3311 | 978.0 | 812.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.80 | 314.47 | -11.04 | 147.19 | 0.3445 | 605.0 | 525.9 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.33 | 314.46 | -11.04 | 146.40 | 0.3383 | 729.0 | 615.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.55 | 314.42 | -11.09 | 146.66 | 0.3416 | 769.0 | 633.9 | |
| 0.00 | 3.18 | 0.00 | 1.67 | -13.12 | 314.32 | -11.19 | 145.69 | 0.3367 | 1021.0 | 827.4 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -12.32 | 314.26 | -11.24 | 144.13 | 0.3265 | 953.0 | 788.0 | |
| 0.00 | 3.78 | 0.00 | 2.00 | -13.49 | 314.11 | -11.39 | 145.84 | 0.3436 | 951.0 | 722.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.21 | 314.06 | -11.44 | 145.26 | 0.3404 | 829.0 | 729.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.91 | 314.05 | -11.46 | 144.68 | 0.3364 | 865.0 | 795.4 | |
| 0.00 | 3.61 | 0.00 | 1.91 | -13.74 | 313.97 | -11.53 | 145.94 | 0.3482 | 722.0 | 636.6 | |
| 0.00 | 2.49 | 0.00 | 1.31 | -13.06 | 313.85 | -11.65 | 144.50 | 0.3403 | 671.0 | 771.5 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -13.59 | 313.61 | -11.90 | 144.86 | 0.3496 | 871.0 | 663.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -13.59 | 313.36 | -12.15 | 144.30 | 0.3520 | 678.0 | 555.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -11.34 | 313.44 | -12.07 | 140.29 | 0.3223 | 832.0 | 633.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.59 | 313.36 | -12.14 | 140.62 | 0.3262 | 950.0 | 786.7 | |
| 0.00 | 3.27 | 0.00 | 1.72 | -12.05 | 313.25 | -12.26 | 141.26 | 0.3332 | 887.0 | 849.4 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -17.13 | 312.86 | -12.65 | 148.62 | 0.4037 | 615.0 | 533.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -11.38 | 312.66 | -12.84 | 138.62 | 0.3311 | 894.0 | 828.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -15.00 | 312.46 | -13.04 | 144.70 | 0.3789 | 799.0 | 505.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -14.76 | 311.24 | -14.26 | 141.90 | 0.3877 | 763.0 | 620.0 | |
| 0.00 | 2.49 | 0.00 | 1.33 | -13.22 | 311.16 | -14.35 | 139.03 | 0.3696 | 702.0 | 601.4 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -12.75 | 311.06 | -14.45 | 137.99 | 0.3651 | 1019.0 | 909.6 | |
| 8.86 | 18.24 | 4.68 | 9.63 | -11.22 | 311.08 | -14.42 | 134.99 | 0.3470 | 1114.7 | 827.8 | |
| 1.89 | -33.00 | 1.00 | -33.00 | -11.43 | 311.07 | -14.43 | 135.41 | 0.3496 | 906.1 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.28 | -13.00 | 310.79 | -14.71 | 137.94 | 0.3710 | 758.0 | 710.1 | |
| 1.46 | 3.53 | 0.78 | 1.87 | -11.65 | 310.46 | -15.04 | 134.69 | 0.3591 | 960.1 | 688.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -12.12 | 310.41 | -15.10 | 135.50 | 0.3650 | 869.0 | 723.7 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -12.89 | 310.29 | -15.21 | 136.78 | 0.3751 | 895.0 | 755.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.97 | 310.19 | -15.31 | 138.56 | 0.3889 | 765.0 | 528.7 | |
| 0.00 | 2.75 | 0.00 | 1.46 | -11.84 | 310.30 | -15.21 | 134.75 | 0.3632 | 376.0 | 481.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -12.92 | 310.07 | -15.43 | 136.43 | 0.3780 | 622.0 | 571.6 | |
| 2.67 | 7.74 | 1.42 | 4.12 | -11.81 | 310.11 | -15.40 | 134.35 | 0.3650 | 1098.0 | 674.9 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -11.41 | 310.13 | -15.37 | 133.58 | 0.3603 | 969.0 | 799.8 | |
| 0.43 | -42.00 | 0.23 | -42.00 | -11.85 | 309.95 | -15.56 | 134.12 | 0.3672 | 795.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -10.87 | 310.01 | -15.50 | 132.20 | 0.3558 | 898.0 | 765.6 | |
| 0.00 | 3.70 | 0.00 | 1.98 | -12.71 | 309.80 | -15.70 | 135.54 | 0.3786 | 747.0 | 732.4 | |
| 0.00 | 2.24 | 0.00 | 1.21 | -14.04 | 309.49 | -16.02 | 137.42 | 0.3973 | 809.0 | 589.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.62 | 309.55 | -15.95 | 134.93 | 0.3804 | 628.0 | 453.1 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -13.55 | 309.43 | -16.08 | 136.43 | 0.3923 | 697.0 | 583.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -13.98 | 309.17 | -16.33 | 136.77 | 0.4001 | 548.0 | 484.7 | |
| 0.00 | 5.25 | 0.00 | 2.81 | -12.32 | 309.23 | -16.28 | 133.77 | 0.3809 | 693.0 | 750.7 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -14.11 | 309.00 | -16.50 | 136.70 | 0.4034 | 575.0 | 445.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.37 | 308.90 | -16.61 | 135.19 | 0.3962 | 341.0 | 230.3 | |
| 2.24 | 10.06 | 1.19 | 5.38 | -11.52 | 308.87 | -16.64 | 131.57 | 0.3767 | -756.3 | -197.0 | |
| 1.20 | 5.25 | 0.65 | 2.81 | -12.17 | 308.73 | -16.78 | 132.63 | 0.3852 | 958.1 | 692.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -10.27 | 308.85 | -16.66 | 128.90 | 0.3641 | 831.0 | 668.3 | |
| 0.52 | 5.68 | 0.28 | 3.05 | -12.48 | 308.42 | -17.08 | 132.73 | 0.3921 | 841.0 | 696.3 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -13.13 | 308.38 | -17.13 | 133.87 | 0.3996 | -994.0 | -810.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -11.60 | 308.04 | -17.47 | 130.36 | 0.3875 | -848.0 | -745.2 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -11.20 | 307.65 | -17.85 | 128.95 | 0.3884 | -991.0 | -822.2 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -11.73 | 307.52 | -17.98 | 129.81 | 0.3952 | -793.0 | -543.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -11.58 | 307.34 | -18.17 | 129.23 | 0.3960 | -827.0 | -603.8 | |
| 10.24 | 24.77 | 5.54 | 13.40 | -12.13 | 307.20 | -18.30 | 130.12 | 0.4032 | 648.2 | 96.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -11.70 | 307.04 | -18.46 | 129.03 | 0.4009 | -747.0 | -568.2 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -13.25 | 306.44 | -19.06 | 131.10 | 0.4236 | -819.0 | -669.0 | |
| 0.95 | 4.04 | 0.52 | 2.22 | -14.12 | 306.34 | -19.17 | 132.50 | 0.4338 | -1012.2 | -853.3 | |
| 0.00 | 3.53 | 0.00 | 1.91 | -11.87 | 306.49 | -19.02 | 128.54 | 0.4094 | 909.0 | 606.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -14.13 | 305.91 | -19.59 | 131.90 | 0.4388 | -952.0 | -712.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -10.68 | 306.12 | -19.38 | 125.64 | 0.4030 | -947.0 | -813.7 | |
| 0.00 | 2.75 | 0.00 | 1.50 | -11.88 | 305.68 | -19.82 | 127.43 | 0.4197 | 220.0 | -185.9 | |
| 2.41 | 4.39 | 1.30 | 2.38 | -10.05 | 305.52 | -19.98 | 123.53 | 0.4053 | -1113.4 | -912.6 | |
| 1.63 | 35.53 | 0.89 | 19.31 | -10.97 | 305.36 | -20.14 | 125.20 | 0.4154 | -1082.3 | -871.4 | |
| 0.00 | 2.75 | 0.00 | 1.50 | -11.95 | 305.29 | -20.22 | 127.03 | 0.4253 | -760.0 | -747.2 | |
| 1.55 | -72.00 | 0.84 | -72.00 | -10.45 | 305.30 | -20.20 | 124.07 | 0.4117 | -1143.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -12.63 | 305.10 | -20.40 | 128.07 | 0.4339 | -716.0 | -598.0 | |
| 0.00 | 5.68 | 0.00 | 3.10 | -11.31 | 305.18 | -20.33 | 125.63 | 0.4209 | -795.0 | -789.6 | |
| 1.63 | -72.00 | 0.89 | -72.00 | -11.00 | 305.17 | -20.34 | 125.01 | 0.4183 | -970.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -15.52 | 304.76 | -20.74 | 132.67 | 0.4661 | -807.0 | -641.2 | |
| 3.01 | -72.00 | 1.64 | -72.00 | -10.58 | 305.07 | -20.43 | 124.02 | 0.4159 | -1103.1 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -10.92 | 304.85 | -20.65 | 124.43 | 0.4217 | -1073.0 | -839.3 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -12.24 | 304.65 | -20.85 | 126.74 | 0.4360 | -724.0 | -586.1 | |
| 1.12 | 6.02 | 0.61 | 3.31 | -12.05 | 304.60 | -20.90 | 126.33 | 0.4349 | -905.3 | -854.7 | |
| 2.32 | 18.32 | 1.27 | 10.02 | -10.74 | 304.61 | -20.90 | 123.76 | 0.4234 | -1020.2 | -881.6 | |
| 4.30 | -83.00 | 2.36 | -83.00 | -11.17 | 304.48 | -21.03 | 124.46 | 0.4287 | -1033.4 | 999999 | |
| 0.43 | 3.87 | 0.24 | 2.13 | -11.69 | 304.44 | -21.07 | 125.42 | 0.4338 | -1013.0 | -845.2 | |
| 0.60 | -83.00 | 0.33 | -83.00 | -10.92 | 304.43 | -21.07 | 123.92 | 0.4273 | -926.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -9.70 | 304.42 | -21.08 | 121.43 | 0.4173 | -919.0 | -658.4 | |
| 0.00 | 3.10 | 0.00 | 1.70 | -11.72 | 304.11 | -21.40 | 125.08 | 0.4384 | -923.0 | -713.8 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -11.94 | 304.09 | -21.42 | 125.47 | 0.4405 | -715.0 | -626.2 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -11.23 | 304.15 | -21.36 | 124.18 | 0.4336 | -991.0 | -868.4 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -9.22 | 304.13 | -21.37 | 120.08 | 0.4175 | -697.0 | -750.3 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -15.51 | 303.51 | -22.00 | 131.02 | 0.4804 | -662.0 | -474.0 | |
| 2.24 | 5.16 | 1.23 | 2.84 | -11.33 | 303.85 | -21.66 | 124.00 | 0.4384 | -927.7 | -770.1 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -9.56 | 303.95 | -21.56 | 120.58 | 0.4227 | -863.0 | -733.8 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -11.61 | 303.79 | -21.71 | 124.47 | 0.4414 | -714.0 | -545.3 | |
| 6.02 | 8.26 | 3.31 | 4.53 | -10.75 | 303.83 | -21.68 | 122.85 | 0.4338 | -1029.4 | -689.7 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -9.81 | 303.83 | -21.67 | 120.95 | 0.4261 | -848.0 | -734.6 | |
| 0.00 | 6.11 | 0.00 | 3.37 | -11.00 | 303.45 | -22.05 | 122.90 | 0.4408 | -376.0 | -531.6 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -11.22 | 303.43 | -22.07 | 123.29 | 0.4428 | -671.0 | -582.6 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -10.09 | 303.39 | -22.11 | 121.02 | 0.4343 | -622.0 | -654.1 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -11.84 | 303.02 | -22.49 | 123.99 | 0.4534 | -809.0 | -639.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -11.75 | 302.83 | -22.67 | 123.61 | 0.4551 | -734.0 | -641.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -12.21 | 302.72 | -22.78 | 124.34 | 0.4603 | -685.0 | -568.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -11.35 | 302.73 | -22.77 | 122.75 | 0.4531 | -591.0 | -506.4 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -9.68 | 302.61 | -22.90 | 119.34 | 0.4419 | -931.0 | -806.8 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -11.79 | 302.30 | -23.21 | 123.09 | 0.4623 | -656.0 | -524.4 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -9.62 | 302.41 | -23.09 | 119.03 | 0.4441 | -567.0 | -482.7 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -9.93 | 302.13 | -23.38 | 119.35 | 0.4503 | -685.0 | -607.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -9.63 | 302.12 | -23.39 | 118.74 | 0.4482 | -798.0 | -596.1 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -9.42 | 301.80 | -23.70 | 118.01 | 0.4510 | -680.0 | -560.1 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -14.94 | 301.10 | -24.41 | 127.25 | 0.5037 | -630.0 | -503.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
