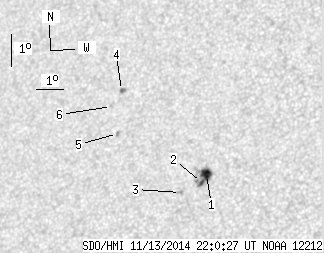

SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.19 | 31.21 | 6.67 | 18.78 | 16.69 | 293.31 | -32.20 | 64.44 | 0.5677 | -400.0 | -132.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.52 | 23.31 | 5.07 | 13.89 | 16.41 | 294.08 | -31.43 | 64.45 | 0.5565 | -979.5 | -382.4 | |
| 2.15 | -1.00 | 1.28 | -1.00 | 16.16 | 293.94 | -31.56 | 64.95 | 0.5571 | -961.2 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.39 | 15.84 | 293.23 | -32.27 | 65.90 | 0.5649 | -628.0 | -457.0 | |
| 0.52 | 2.49 | 0.32 | 1.56 | 18.89 | 290.39 | -35.12 | 62.55 | 0.6156 | 800.5 | 560.7 | |
| 0.00 | 1.89 | 0.00 | 1.18 | 17.57 | 290.54 | -34.96 | 64.51 | 0.6075 | 832.0 | 691.7 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 18.39 | 290.12 | -35.38 | 63.46 | 0.6164 | 668.0 | 534.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
