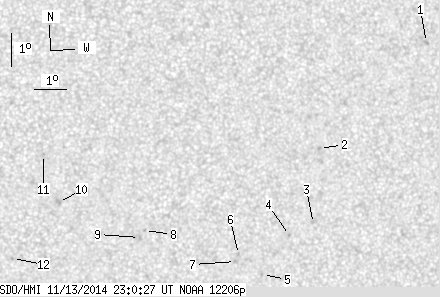

SDO HMI 2014-11-13 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.33 | 0.00 | 8.58 | -9.05 | 339.34 | 14.39 | 228.71 | 0.3274 | 131.1 | 31.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.92 | -4.31 | 346.24 | 21.28 | 251.11 | 0.3842 | 848.0 | 724.8 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -7.43 | 342.96 | 18.00 | 239.76 | 0.3563 | 882.0 | 712.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -9.70 | 342.88 | 17.92 | 234.36 | 0.3749 | 611.0 | 549.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -10.05 | 342.14 | 17.18 | 232.45 | 0.3686 | 823.0 | 632.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -11.23 | 341.35 | 16.40 | 228.64 | 0.3706 | 692.0 | 534.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -10.61 | 340.56 | 15.61 | 228.57 | 0.3544 | 935.0 | 709.5 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -10.82 | 340.48 | 15.53 | 227.96 | 0.3556 | 758.0 | 584.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -9.83 | 337.61 | 12.65 | 224.33 | 0.3103 | -750.0 | -614.4 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -10.04 | 337.46 | 12.51 | 223.52 | 0.3111 | -713.0 | -635.5 | |
| 0.00 | 3.01 | 0.00 | 1.55 | -8.95 | 334.94 | 9.99 | 219.70 | 0.2695 | -783.0 | -719.6 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -7.49 | 334.45 | 9.50 | 222.03 | 0.2455 | -793.0 | -651.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.64 | 333.58 | 8.63 | 212.08 | 0.2790 | -937.0 | -744.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
