SDO HMI 2014-11-13 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.53 | 569.39 | 276.97 | 1745.17 | -14.62 | 245.64 | -79.32 | 105.46 | 0.9817 | 174.9 | -111.0 | |
|
previous
or next observation for the same group /

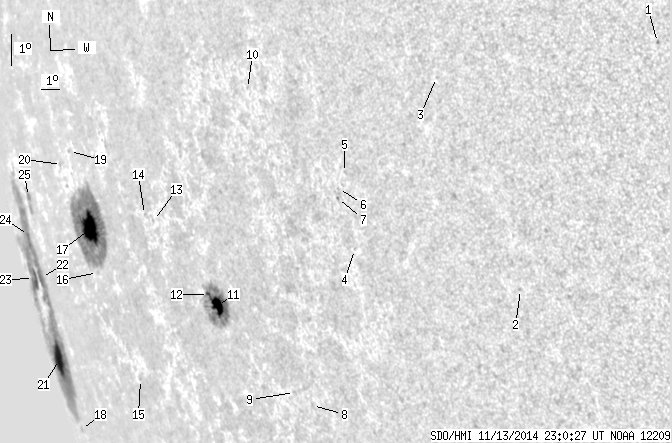

back to the solar disc SDO HMI 2014-11-13 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.78 | -5.22 | 285.26 | -39.69 | 101.64 | 0.6516 | 707.0 | 543.4 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -12.95 | 278.41 | -46.54 | 110.11 | 0.7557 | 456.0 | 376.5 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -6.61 | 275.85 | -49.10 | 101.23 | 0.7679 | 350.0 | 256.8 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -12.04 | 270.69 | -54.26 | 106.71 | 0.8310 | 482.0 | 443.0 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -9.69 | 270.81 | -54.14 | 103.94 | 0.8254 | 618.0 | 523.8 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -10.19 | 270.37 | -54.58 | 104.45 | 0.8304 | 154.0 | 268.6 | |
| 0.00 | 1.29 | 0.00 | 1.15 | -10.50 | 270.24 | -54.71 | 104.78 | 0.8323 | 547.0 | 542.5 | |
| 0.00 | 1.46 | 0.00 | 1.50 | -17.07 | 266.35 | -58.60 | 111.37 | 0.8782 | 146.0 | 205.9 | |
| 0.00 | 1.20 | 0.00 | 1.27 | -16.70 | 265.44 | -59.51 | 110.74 | 0.8845 | 160.0 | 253.4 | |
| 0.00 | 0.95 | 0.00 | 0.93 | -7.36 | 266.03 | -58.92 | 100.33 | 0.8654 | 285.0 | 288.5 | |
| 11.53 | 86.37 | 13.47 | 101.05 | -14.17 | 261.75 | -63.20 | 107.17 | 0.9076 | 749.5 | 142.9 | |
| 1.81 | -11.00 | 2.14 | -11.00 | -13.85 | 261.29 | -63.66 | 106.74 | 0.9104 | 314.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.70 | -11.72 | 258.33 | -66.63 | 103.95 | 0.9277 | 222.0 | 216.3 | |
| 0.00 | 0.60 | 0.00 | 0.81 | -11.57 | 257.70 | -67.25 | 103.70 | 0.9315 | 211.0 | 169.4 | |
| 0.00 | 0.95 | 0.00 | 1.60 | -16.87 | 253.74 | -71.21 | 108.66 | 0.9576 | 55.0 | 46.8 | |
| 0.00 | 1.38 | 0.00 | 2.47 | -13.63 | 252.17 | -72.79 | 105.09 | 0.9627 | -154.0 | -95.4 | |
| 29.33 | 189.43 | 51.53 | 334.51 | -12.26 | 252.47 | -72.49 | 103.72 | 0.9605 | 510.2 | 86.8 | |
| 0.00 | 1.89 | 0.00 | 8.79 | -19.04 | 242.32 | -82.63 | 109.51 | 0.9951 | 191.0 | 66.4 | |
| 0.00 | 1.29 | 0.00 | 2.32 | -9.95 | 251.78 | -73.17 | 101.25 | 0.9625 | -44.0 | -96.0 | |
| 0.00 | 2.06 | 0.00 | 4.01 | -10.41 | 250.62 | -74.34 | 101.59 | 0.9679 | 114.0 | -35.0 | |
| 18.93 | 264.10 | 87.97 | 1248.23 | -16.83 | 242.52 | -82.44 | 107.31 | 0.9944 | -156.6 | -188.7 | |
| 7.66 | -21.00 | 28.48 | -21.00 | -14.22 | 243.72 | -81.24 | 104.80 | 0.9915 | -512.4 | 999999 | |
| 16.00 | -21.00 | 82.34 | -21.00 | -14.37 | 241.52 | -83.43 | 104.77 | 0.9957 | 499.9 | 999999 | |
| 1.03 | -21.00 | 4.07 | -21.00 | -12.97 | 243.04 | -81.91 | 103.48 | 0.9927 | -336.8 | 999999 | |
| 2.24 | 9.72 | 6.97 | 30.59 | -11.68 | 244.88 | -80.07 | 102.34 | 0.9882 | -224.8 | -265.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
