SDO HMI 2014-11-14 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.50 | 30.02 | 7.94 | 17.81 | 16.84 | 293.51 | -30.89 | 63.38 | 0.5516 | -481.9 | -101.9 | |
|
previous
or next observation for the same group /

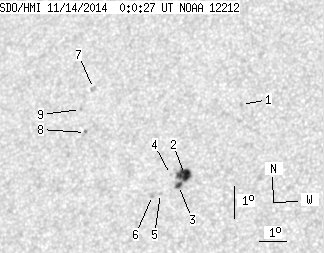

back to the solar disc SDO HMI 2014-11-14 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.00 | 18.59 | 295.96 | -28.44 | 58.67 | 0.5306 | -726.0 | -591.4 | |
| 11.01 | 18.93 | 6.47 | 11.11 | 16.41 | 294.31 | -30.09 | 63.62 | 0.5390 | -919.7 | -545.9 | |
| 2.49 | -2.00 | 1.47 | -2.00 | 16.07 | 294.15 | -30.25 | 64.31 | 0.5393 | -886.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 16.39 | 293.81 | -30.59 | 63.95 | 0.5456 | -565.0 | -410.9 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 15.81 | 293.55 | -30.85 | 65.12 | 0.5460 | -513.0 | -306.5 | |
| 0.00 | 1.46 | 0.00 | 0.87 | 15.74 | 293.27 | -31.13 | 65.41 | 0.5494 | -178.0 | -186.2 | |
| 0.00 | 3.01 | 0.00 | 1.86 | 18.95 | 290.46 | -33.95 | 61.80 | 0.6016 | 773.0 | 610.2 | |
| 0.00 | 1.46 | 0.00 | 0.90 | 17.59 | 290.45 | -33.95 | 63.93 | 0.5948 | 647.0 | 506.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 18.29 | 290.11 | -34.29 | 63.01 | 0.6025 | 616.0 | 477.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
