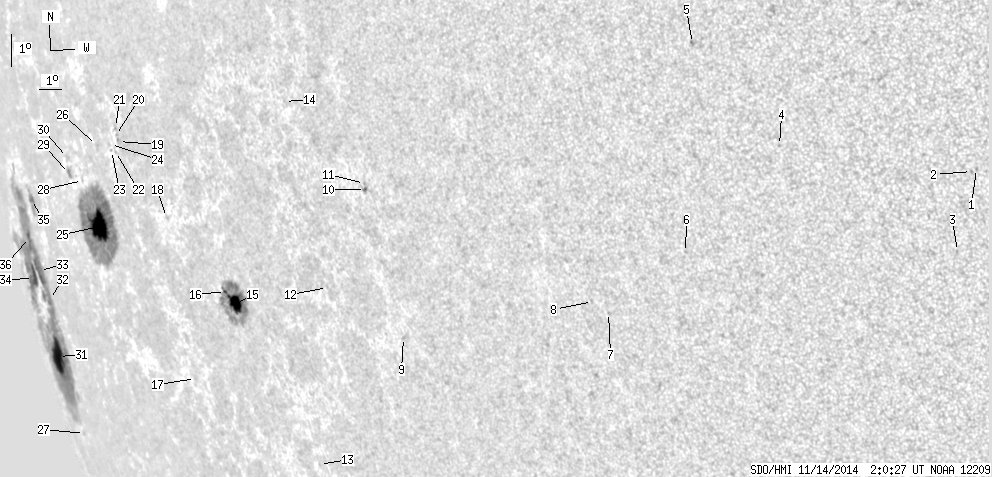

SDO HMI 2014-11-14 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.28 | 682.98 | 300.47 | 1815.46 | -14.56 | 245.78 | -77.52 | 105.57 | 0.9763 | 26.0 | -56.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.69 | -8.85 | 295.13 | -28.17 | 113.11 | 0.5092 | 495.0 | 440.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -8.95 | 294.95 | -28.35 | 113.15 | 0.5122 | 586.0 | 470.5 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -11.40 | 294.22 | -29.08 | 116.93 | 0.5365 | 682.0 | 542.2 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -8.34 | 288.22 | -35.08 | 108.21 | 0.6009 | 617.0 | 492.6 | |
| 0.00 | 1.72 | 0.00 | 1.10 | -5.36 | 285.25 | -38.05 | 102.33 | 0.6305 | 720.0 | 594.7 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -11.72 | 284.20 | -39.10 | 111.44 | 0.6658 | 654.0 | 488.7 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -13.69 | 280.70 | -42.60 | 112.59 | 0.7146 | 588.0 | 445.2 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -13.37 | 280.10 | -43.20 | 111.91 | 0.7201 | 306.0 | 372.2 | |
| 0.00 | 1.81 | 0.00 | 1.55 | -14.84 | 271.05 | -52.25 | 110.55 | 0.8185 | 361.0 | 273.1 | |
| 0.43 | 1.81 | 0.36 | 1.53 | -10.32 | 270.47 | -52.83 | 104.98 | 0.8137 | 693.2 | 597.9 | |
| 0.00 | 0.86 | 0.00 | 0.73 | -10.13 | 270.47 | -52.83 | 104.76 | 0.8134 | 405.0 | 420.6 | |
| 0.00 | 0.95 | 0.00 | 0.88 | -13.44 | 267.56 | -55.74 | 107.96 | 0.8472 | 62.0 | 100.5 | |
| 0.00 | 0.86 | 0.00 | 0.90 | -19.12 | 264.48 | -58.82 | 113.56 | 0.8839 | 320.0 | 340.2 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -7.81 | 266.81 | -56.49 | 101.24 | 0.8443 | 442.0 | 480.7 | |
| 15.14 | 81.83 | 16.70 | 90.51 | -14.20 | 261.81 | -61.50 | 107.52 | 0.8953 | 693.8 | 162.7 | |
| 1.20 | -15.00 | 1.35 | -15.00 | -13.85 | 261.32 | -61.98 | 107.04 | 0.8984 | 211.9 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.81 | -16.73 | 257.57 | -65.73 | 109.43 | 0.9274 | 63.0 | 121.0 | |
| 0.00 | 0.95 | 0.00 | 1.17 | -11.72 | 258.23 | -65.07 | 104.18 | 0.9175 | 185.0 | 177.5 | |
| 0.00 | 2.84 | 0.00 | 3.86 | -9.54 | 255.52 | -67.78 | 101.45 | 0.9330 | -263.0 | -199.8 | |
| 0.00 | 0.69 | 0.00 | 0.94 | -9.37 | 255.35 | -67.95 | 101.25 | 0.9340 | -211.0 | -321.9 | |
| 0.00 | 1.81 | 0.00 | 2.47 | -9.12 | 255.46 | -67.85 | 101.00 | 0.9331 | -231.0 | -243.1 | |
| 0.00 | 0.69 | 0.00 | 0.96 | -9.86 | 255.14 | -68.16 | 101.75 | 0.9356 | -242.0 | -164.5 | |
| 0.00 | 0.77 | 0.00 | 1.09 | -9.85 | 254.82 | -68.48 | 101.69 | 0.9376 | 30.0 | 71.0 | |
| 0.00 | 0.60 | 0.00 | 0.85 | -9.67 | 254.82 | -68.49 | 101.49 | 0.9374 | 286.0 | 349.1 | |
| 31.15 | 204.62 | 49.98 | 330.56 | -12.28 | 252.45 | -70.85 | 103.94 | 0.9524 | 448.4 | 88.2 | |
| 0.00 | 1.38 | 0.00 | 2.05 | -9.76 | 253.58 | -69.73 | 101.44 | 0.9447 | 306.0 | 283.3 | |
| 0.00 | 1.46 | 0.00 | 5.40 | -19.23 | 242.62 | -80.68 | 109.88 | 0.9914 | 205.0 | 187.8 | |
| 0.00 | 0.26 | 0.00 | 0.43 | -10.92 | 251.66 | -71.64 | 102.42 | 0.9556 | 267.0 | 270.7 | |
| 1.55 | 4.39 | 2.75 | 7.78 | -10.76 | 250.45 | -72.85 | 102.12 | 0.9614 | -436.2 | -337.8 | |
| 0.00 | 2.67 | 0.00 | 4.69 | -10.27 | 250.54 | -72.76 | 101.62 | 0.9607 | 60.0 | 7.1 | |
| 25.64 | 344.19 | 95.23 | 1304.82 | -16.82 | 242.39 | -80.91 | 107.43 | 0.9913 | -167.7 | -108.5 | |
| 4.47 | -31.00 | 13.50 | -31.00 | -14.97 | 243.85 | -79.45 | 105.71 | 0.9873 | -660.7 | 999999 | |
| 16.26 | -31.00 | 51.01 | -31.00 | -14.10 | 243.37 | -79.93 | 104.79 | 0.9884 | -545.0 | 999999 | |
| 12.13 | -31.00 | 47.80 | -31.00 | -14.44 | 241.64 | -81.66 | 104.97 | 0.9925 | 575.5 | 999999 | |
| 3.70 | 16.78 | 9.88 | 44.46 | -11.84 | 244.84 | -78.46 | 102.65 | 0.9836 | -316.3 | -249.0 | |
| 3.61 | -31.00 | 11.91 | -31.00 | -13.11 | 242.97 | -80.33 | 103.75 | 0.9892 | -330.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
