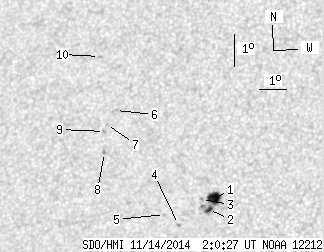

SDO HMI 2014-11-14 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.20 | 34.68 | 8.23 | 20.36 | 16.82 | 293.49 | -29.81 | 62.71 | 0.5374 | -432.6 | -192.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.36 | 23.75 | 6.58 | 13.77 | 16.39 | 294.56 | -28.74 | 62.71 | 0.5212 | -917.7 | -513.5 | |
| 2.84 | -1.00 | 1.65 | -1.00 | 16.05 | 294.40 | -28.90 | 63.42 | 0.5214 | -876.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 16.35 | 294.11 | -29.19 | 63.09 | 0.5270 | -548.0 | -409.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 15.57 | 293.42 | -29.89 | 64.93 | 0.5320 | -588.0 | -469.8 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 15.86 | 292.87 | -30.43 | 64.75 | 0.5408 | -294.0 | -244.1 | |
| 0.00 | 2.15 | 0.00 | 1.31 | 19.00 | 290.47 | -32.83 | 61.04 | 0.5881 | 658.0 | 510.5 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 18.56 | 290.23 | -33.07 | 61.88 | 0.5888 | 460.0 | 252.4 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 17.70 | 290.34 | -32.96 | 63.19 | 0.5830 | 748.0 | 586.1 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 18.34 | 290.20 | -33.10 | 62.24 | 0.5880 | 705.0 | 539.4 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 20.65 | 289.47 | -33.83 | 59.10 | 0.6093 | -677.0 | -588.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
