SDO HMI 2014-11-14 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.64 | 0.00 | 5.42 | 11.63 | 298.32 | -24.44 | 64.37 | 0.4580 | -178.0 | -141.3 | |
|
previous
or next observation for the same group /

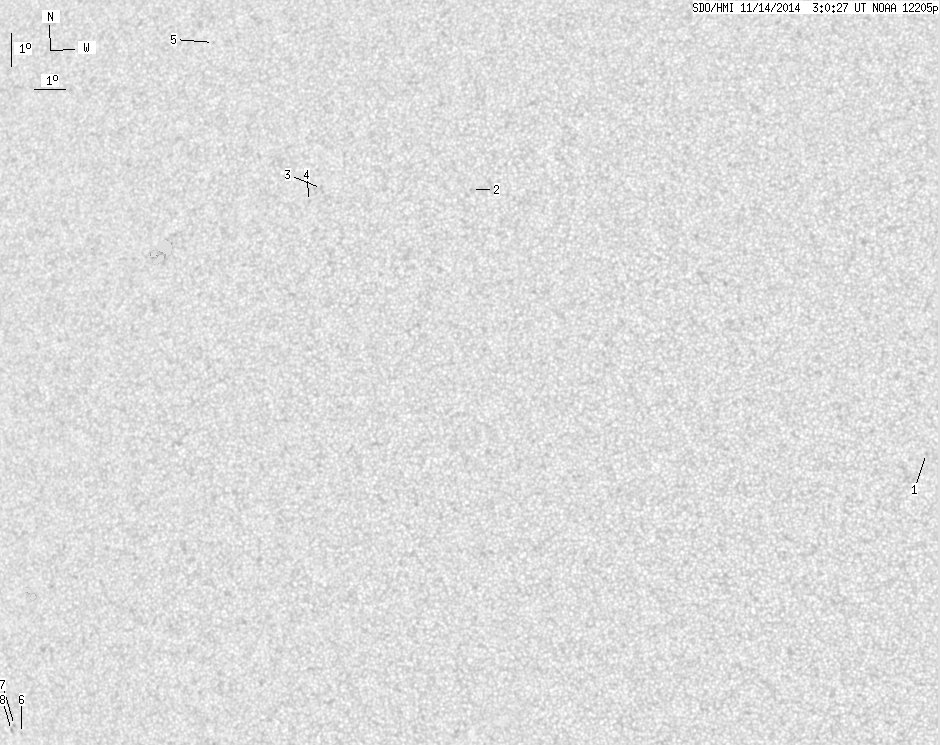

back to the solar disc SDO HMI 2014-11-14 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.48 | 319.40 | -3.35 | 23.74 | 0.1434 | -786.0 | -605.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 18.36 | 304.78 | -17.98 | 47.57 | 0.3985 | -727.0 | -502.9 | |
| 0.00 | 2.24 | 0.00 | 1.25 | 18.31 | 299.78 | -22.98 | 54.09 | 0.4595 | -766.0 | -643.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 17.90 | 299.42 | -23.33 | 55.23 | 0.4607 | -713.0 | -579.3 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 22.77 | 295.20 | -27.55 | 51.11 | 0.5502 | -575.0 | -445.3 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 1.75 | 290.97 | -31.78 | 91.48 | 0.5287 | 785.0 | 663.1 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 1.98 | 290.73 | -32.03 | 91.03 | 0.5322 | 652.0 | 570.2 | |
| 0.00 | 1.81 | 0.00 | 1.06 | 1.83 | 290.62 | -32.13 | 91.30 | 0.5338 | 706.0 | 529.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
