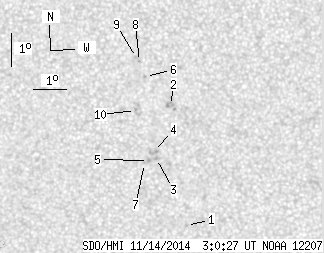

SDO HMI 2014-11-14 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.76 | 0.00 | 9.51 | -9.34 | 322.84 | 0.09 | 180.35 | 0.2144 | 829.2 | 779.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.41 | 323.75 | 1.00 | 183.68 | 0.2671 | 805.0 | 642.8 | |
| 0.00 | 5.51 | 0.00 | 2.79 | -8.75 | 323.27 | 0.51 | 182.50 | 0.2043 | 961.0 | 868.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -10.36 | 322.84 | 0.09 | 180.39 | 0.2317 | 998.0 | 756.4 | |
| 0.00 | 4.04 | 0.00 | 2.06 | -10.14 | 322.75 | 0.00 | 180.01 | 0.2280 | 486.0 | 803.7 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.42 | 322.60 | -0.15 | 179.37 | 0.2327 | 788.0 | 765.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -7.87 | 322.52 | -0.23 | 178.77 | 0.1891 | 903.0 | 704.3 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -10.51 | 322.48 | -0.27 | 178.86 | 0.2343 | 645.0 | 565.3 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -7.42 | 322.34 | -0.41 | 177.73 | 0.1814 | 936.0 | 717.5 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -7.30 | 322.25 | -0.50 | 177.21 | 0.1794 | 845.0 | 684.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -8.90 | 322.22 | -0.54 | 177.43 | 0.2069 | 925.0 | 789.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
