SDO HMI 2014-11-14 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.00 | 723.44 | 232.08 | 1819.18 | -14.82 | 245.67 | -77.08 | 105.88 | 0.9745 | 74.3 | -67.4 | |
|
previous
or next observation for the same group /

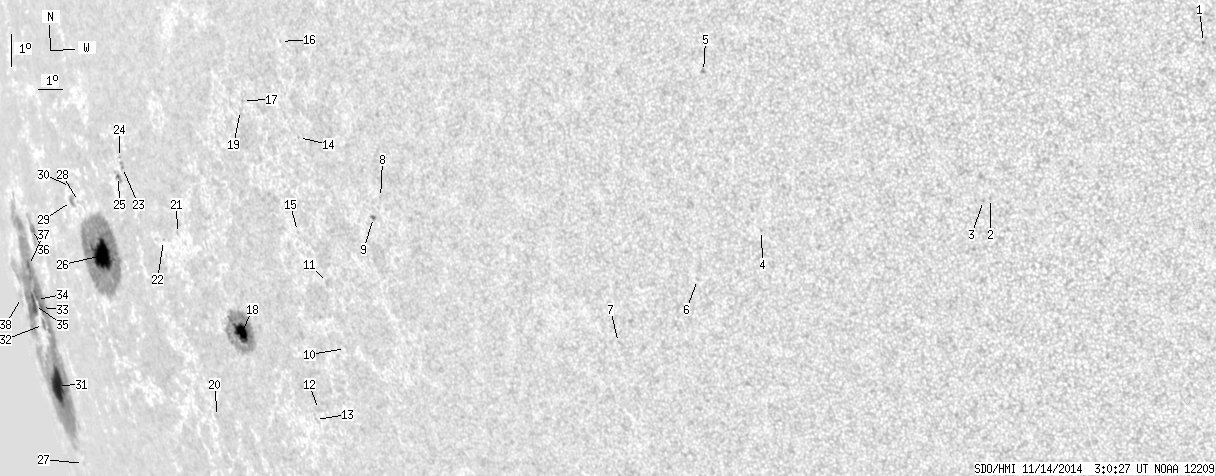

back to the solar disc SDO HMI 2014-11-14 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.69 | -4.07 | 302.38 | -20.37 | 108.99 | 0.3688 | 810.0 | 622.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -8.91 | 295.15 | -27.60 | 113.62 | 0.5016 | 590.0 | 486.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -8.98 | 294.91 | -27.84 | 113.56 | 0.5053 | 667.0 | 582.1 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -10.10 | 286.91 | -35.84 | 110.60 | 0.6182 | 658.0 | 497.3 | |
| 0.00 | 1.89 | 0.00 | 1.20 | -5.36 | 285.23 | -37.53 | 102.48 | 0.6234 | 691.0 | 537.0 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -11.68 | 284.24 | -38.51 | 111.65 | 0.6584 | 689.0 | 533.8 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -13.74 | 280.68 | -42.07 | 112.88 | 0.7088 | 640.0 | 491.7 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -9.67 | 270.97 | -51.79 | 104.44 | 0.8021 | 495.0 | 468.4 | |
| 0.69 | 2.07 | 0.58 | 1.73 | -10.30 | 270.48 | -52.28 | 105.09 | 0.8083 | 733.6 | 621.4 | |
| 0.00 | 0.43 | 0.00 | 0.39 | -14.44 | 267.78 | -54.97 | 109.31 | 0.8424 | 362.0 | 373.4 | |
| 0.00 | 2.58 | 0.00 | 2.35 | -12.41 | 267.52 | -55.23 | 106.89 | 0.8406 | 62.0 | 119.9 | |
| 0.00 | 3.61 | 0.00 | 3.56 | -16.44 | 265.44 | -57.31 | 110.98 | 0.8665 | 79.0 | 139.9 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -16.77 | 265.11 | -57.64 | 111.26 | 0.8699 | 390.0 | 375.0 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -8.02 | 267.14 | -55.62 | 101.64 | 0.8365 | 510.0 | 433.6 | |
| 0.00 | 0.69 | 0.00 | 0.64 | -10.90 | 266.35 | -56.40 | 104.87 | 0.8483 | 468.0 | 354.4 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -5.15 | 266.67 | -56.08 | 98.16 | 0.8371 | 212.0 | 244.2 | |
| 0.00 | 0.86 | 0.00 | 0.83 | -7.03 | 264.23 | -58.52 | 100.00 | 0.8615 | 414.0 | 415.2 | |
| 13.34 | 85.80 | 14.44 | 93.07 | -14.21 | 261.82 | -60.93 | 107.65 | 0.8910 | 712.4 | 191.8 | |
| 0.00 | 0.77 | 0.00 | 0.76 | -7.34 | 264.05 | -58.70 | 100.32 | 0.8634 | 329.0 | 306.0 | |
| 0.00 | 2.24 | 0.00 | 2.75 | -16.97 | 258.71 | -64.05 | 110.01 | 0.9170 | 51.0 | 80.9 | |
| 0.00 | 1.20 | 0.00 | 1.42 | -11.31 | 258.86 | -63.90 | 103.92 | 0.9090 | 271.0 | 248.1 | |
| 0.00 | 0.86 | 0.00 | 1.06 | -11.57 | 257.75 | -65.00 | 104.03 | 0.9169 | 222.0 | 217.9 | |
| 0.34 | 2.67 | 0.46 | 3.54 | -9.46 | 255.56 | -67.19 | 101.44 | 0.9293 | -324.2 | -320.4 | |
| 0.00 | 0.77 | 0.00 | 1.03 | -9.16 | 255.44 | -67.31 | 101.11 | 0.9298 | -407.0 | -370.9 | |
| 1.20 | 5.51 | 1.63 | 7.47 | -9.75 | 255.12 | -67.63 | 101.69 | 0.9323 | -118.1 | 56.6 | |
| 32.18 | 212.12 | 50.22 | 333.27 | -12.29 | 252.44 | -70.31 | 104.02 | 0.9496 | 462.3 | 83.9 | |
| 0.00 | 1.29 | 0.00 | 4.51 | -19.28 | 242.34 | -80.41 | 109.96 | 0.9908 | 270.0 | 183.4 | |
| 0.00 | 1.12 | 0.00 | 1.85 | -10.71 | 251.13 | -71.62 | 102.20 | 0.9553 | -229.0 | -86.4 | |
| 1.89 | 6.11 | 3.25 | 10.46 | -10.74 | 250.42 | -72.33 | 102.16 | 0.9589 | -419.0 | -313.0 | |
| 0.00 | 1.89 | 0.00 | 3.21 | -10.28 | 250.59 | -72.16 | 101.69 | 0.9578 | 87.0 | 29.7 | |
| 25.73 | 360.82 | 90.09 | 1271.14 | -16.84 | 242.19 | -80.56 | 107.48 | 0.9906 | -174.4 | -124.3 | |
| 2.58 | -31.00 | 8.11 | -31.00 | -14.91 | 242.86 | -79.89 | 105.60 | 0.9885 | -466.1 | 999999 | |
| 3.53 | -31.00 | 10.62 | -31.00 | -14.36 | 243.32 | -79.43 | 105.09 | 0.9871 | -511.1 | 999999 | |
| 1.98 | -31.00 | 6.26 | -31.00 | -14.14 | 242.75 | -80.00 | 104.82 | 0.9885 | -306.3 | 999999 | |
| 8.09 | -31.00 | 28.18 | -31.00 | -14.36 | 242.03 | -80.72 | 104.98 | 0.9904 | 411.1 | 999999 | |
| 3.44 | 14.20 | 8.74 | 36.34 | -11.88 | 244.85 | -77.90 | 102.74 | 0.9819 | -310.2 | -292.6 | |
| 3.01 | -31.00 | 9.50 | -31.00 | -13.09 | 242.79 | -79.96 | 103.77 | 0.9882 | -324.2 | 999999 | |
| 0.00 | 5.77 | 0.00 | 30.92 | -14.26 | 239.21 | -83.55 | 104.65 | 0.9958 | -16.0 | -89.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
