SDO HMI 2014-11-14 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.22 | 294.29 | 59.96 | 239.43 | 13.91 | 14.13 | 51.92 | 285.35 | 0.7937 | -374.6 | -175.0 | |
|
previous
or next observation for the same group /

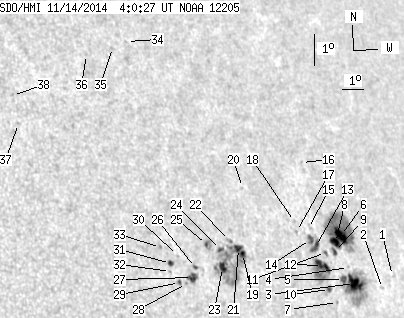

back to the solar disc SDO HMI 2014-11-14 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.54 | 13.13 | 18.72 | 56.51 | 283.76 | 0.8384 | -304.0 | -302.7 | |
| 0.00 | 1.03 | 0.00 | 0.92 | 12.76 | 18.04 | 55.83 | 283.40 | 0.8317 | -271.0 | -248.9 | |
| 14.03 | 58.00 | 12.02 | 49.71 | 12.97 | 16.61 | 54.40 | 283.81 | 0.8182 | -681.2 | -238.8 | |
| 0.00 | 0.86 | 0.00 | 0.74 | 13.46 | 16.46 | 54.25 | 284.43 | 0.8172 | -335.0 | -297.0 | |
| 2.67 | -3.00 | 2.26 | -3.00 | 13.12 | 16.08 | 53.88 | 284.05 | 0.8132 | -814.3 | 999999 | |
| 11.70 | 78.23 | 10.01 | 66.93 | 14.44 | 16.38 | 54.17 | 285.63 | 0.8175 | -702.2 | -133.2 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 12.44 | 15.56 | 53.36 | 283.28 | 0.8073 | -542.0 | -495.2 | |
| 6.80 | -6.00 | 5.77 | -6.00 | 14.24 | 16.04 | 53.84 | 285.44 | 0.8141 | -793.4 | 999999 | |
| 1.89 | -6.00 | 1.60 | -6.00 | 13.97 | 15.90 | 53.69 | 285.13 | 0.8123 | -671.8 | 999999 | |
| 1.20 | 3.44 | 1.00 | 2.86 | 12.85 | 15.27 | 53.07 | 283.82 | 0.8048 | -764.8 | -659.8 | |
| 0.60 | 1.55 | 0.50 | 1.30 | 13.96 | 15.43 | 53.22 | 285.18 | 0.8077 | -585.9 | -530.9 | |
| 8.00 | 28.83 | 6.64 | 23.84 | 13.58 | 15.15 | 52.94 | 284.74 | 0.8044 | -803.9 | -621.2 | |
| 3.87 | 13.08 | 3.21 | 10.82 | 14.16 | 14.99 | 52.78 | 285.49 | 0.8035 | -682.9 | -584.8 | |
| 2.24 | -13.00 | 1.85 | -13.00 | 14.38 | 14.81 | 52.60 | 285.79 | 0.8020 | -795.0 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.28 | 14.72 | 14.82 | 52.62 | 286.20 | 0.8025 | -240.0 | -316.2 | |
| 0.00 | 0.86 | 0.00 | 0.72 | 16.73 | 15.21 | 53.01 | 288.61 | 0.8094 | -497.0 | -423.8 | |
| 0.00 | 0.77 | 0.00 | 0.63 | 14.65 | 14.19 | 51.99 | 286.22 | 0.7961 | -699.0 | -628.4 | |
| 0.00 | 0.86 | 0.00 | 0.70 | 14.96 | 14.20 | 51.99 | 286.60 | 0.7966 | -563.0 | -535.3 | |
| 2.15 | 74.96 | 1.65 | 56.76 | 14.09 | 11.40 | 49.19 | 285.99 | 0.7660 | -596.6 | -34.5 | |
| 0.00 | 0.86 | 0.00 | 0.67 | 16.09 | 12.03 | 49.83 | 288.43 | 0.7762 | -530.0 | -436.6 | |
| 3.44 | -19.00 | 2.63 | -19.00 | 14.25 | 11.25 | 49.05 | 286.22 | 0.7647 | -776.9 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.64 | 14.51 | 10.91 | 48.70 | 286.62 | 0.7614 | -586.0 | -499.7 | |
| 5.16 | -19.00 | 3.88 | -19.00 | 13.71 | 10.35 | 48.15 | 285.68 | 0.7540 | 661.0 | 999999 | |
| 1.29 | -19.00 | 0.97 | -19.00 | 14.25 | 10.42 | 48.21 | 286.38 | 0.7556 | -864.4 | 999999 | |
| 0.95 | 5.77 | 0.71 | 4.30 | 14.43 | 9.82 | 47.62 | 286.73 | 0.7493 | 319.3 | -81.1 | |
| 0.60 | 1.72 | 0.44 | 1.26 | 13.76 | 9.14 | 46.94 | 285.97 | 0.7405 | 273.6 | 137.8 | |
| 4.22 | 7.23 | 3.08 | 5.28 | 13.46 | 8.93 | 46.72 | 285.62 | 0.7375 | 692.5 | 482.5 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 13.29 | 8.62 | 46.41 | 285.45 | 0.7337 | 614.0 | 542.3 | |
| 0.77 | 1.98 | 0.56 | 1.43 | 13.33 | 8.32 | 46.11 | 285.56 | 0.7303 | 618.3 | 457.2 | |
| 0.00 | 0.34 | 0.00 | 0.25 | 14.15 | 8.44 | 46.24 | 286.64 | 0.7332 | 404.0 | 373.5 | |
| 1.64 | 3.10 | 1.18 | 2.23 | 13.92 | 8.07 | 45.86 | 286.41 | 0.7286 | 649.8 | 519.5 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 13.68 | 8.01 | 45.80 | 286.10 | 0.7274 | 687.0 | 579.5 | |
| 0.00 | 1.29 | 0.00 | 0.93 | 14.41 | 7.76 | 45.56 | 287.16 | 0.7260 | 733.0 | 635.5 | |
| 0.00 | 0.43 | 0.00 | 0.32 | 20.75 | 8.33 | 46.12 | 295.42 | 0.7486 | 492.0 | 428.0 | |
| 0.00 | 1.20 | 0.00 | 0.88 | 20.59 | 7.62 | 45.42 | 295.44 | 0.7407 | 428.0 | 283.3 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 20.42 | 6.39 | 44.19 | 295.64 | 0.7269 | 440.0 | 355.8 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 18.39 | 2.83 | 40.62 | 294.21 | 0.6797 | 550.0 | 448.6 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 19.26 | 2.83 | 40.63 | 295.43 | 0.6830 | 465.0 | 366.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
