SDO HMI 2014-11-14 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.83 | 0.00 | 8.04 | -9.52 | 322.85 | 0.64 | 182.94 | 0.2175 | 864.9 | 761.6 | |
|
previous
or next observation for the same group /

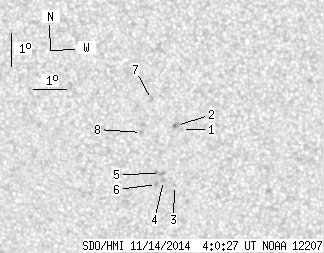

back to the solar disc SDO HMI 2014-11-14 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.57 | -8.84 | 323.41 | 1.20 | 185.80 | 0.2067 | 882.0 | 628.8 | |
| 0.00 | 2.75 | 0.00 | 1.39 | -8.72 | 323.26 | 1.05 | 185.13 | 0.2044 | 1063.0 | 1027.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.55 | 323.20 | 1.00 | 184.19 | 0.2354 | 835.0 | 613.7 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -10.39 | 322.87 | 0.67 | 182.83 | 0.2324 | 923.0 | 707.2 | |
| 0.00 | 3.87 | 0.00 | 1.97 | -10.18 | 322.78 | 0.58 | 182.49 | 0.2287 | 813.0 | 820.1 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -10.51 | 322.66 | 0.45 | 181.92 | 0.2344 | 796.0 | 645.4 | |
| 0.00 | 2.15 | 0.00 | 1.09 | -7.94 | 322.51 | 0.30 | 181.60 | 0.1901 | 718.0 | 656.4 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -8.93 | 322.21 | 0.00 | 180.02 | 0.2072 | 889.0 | 675.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
