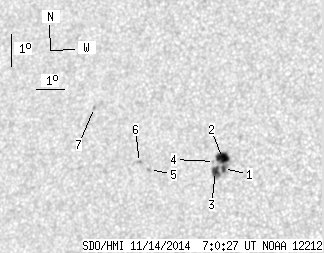

SDO HMI 2014-11-14 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.44 | 31.93 | 9.26 | 18.09 | 16.35 | 294.38 | -26.18 | 60.75 | 0.4871 | -525.1 | -233.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 25.47 | 1.16 | 14.36 | 16.15 | 295.02 | -25.54 | 60.62 | 0.4773 | -1133.0 | -689.4 | |
| 9.21 | -1.00 | 5.19 | -1.00 | 16.45 | 294.95 | -25.62 | 60.11 | 0.4803 | -979.2 | 999999 | |
| 5.16 | -1.00 | 2.91 | -1.00 | 16.05 | 294.76 | -25.80 | 61.02 | 0.4802 | -900.0 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 16.35 | 294.69 | -25.88 | 60.51 | 0.4832 | -223.0 | -350.4 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 16.06 | 292.47 | -28.09 | 62.78 | 0.5109 | 845.0 | 544.5 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 16.27 | 292.09 | -28.48 | 62.69 | 0.5172 | 670.0 | 695.9 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 17.91 | 290.20 | -30.37 | 61.16 | 0.5513 | 761.0 | 599.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
