SDO HMI 2014-11-14 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.75 | 38.63 | 8.83 | 21.78 | 16.47 | 294.45 | -25.57 | 59.99 | 0.4797 | -505.9 | -331.1 | |
|
previous
or next observation for the same group /

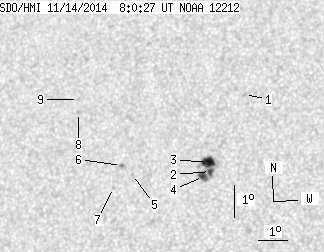

back to the solar disc SDO HMI 2014-11-14 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.82 | 18.56 | 295.95 | -24.07 | 54.73 | 0.4756 | -755.0 | -562.4 | |
| 2.24 | 31.24 | 1.25 | 17.52 | 16.18 | 295.12 | -24.90 | 59.98 | 0.4690 | -1012.5 | -573.3 | |
| 9.04 | -2.00 | 5.07 | -2.00 | 16.46 | 295.02 | -25.01 | 59.55 | 0.4722 | -952.1 | 999999 | |
| 4.47 | -2.00 | 2.51 | -2.00 | 16.03 | 294.90 | -25.12 | 60.47 | 0.4708 | -901.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 16.04 | 292.45 | -27.57 | 62.43 | 0.5038 | 672.0 | 493.2 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 16.30 | 292.03 | -27.99 | 62.26 | 0.5110 | 816.0 | 774.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 15.63 | 291.85 | -28.17 | 63.62 | 0.5095 | -694.0 | -538.3 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 17.89 | 290.23 | -29.79 | 60.79 | 0.5438 | 553.0 | 429.6 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 18.28 | 290.16 | -29.86 | 60.17 | 0.5471 | 261.0 | 250.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
