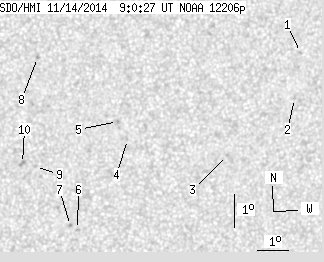

SDO HMI 2014-11-14 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.98 | 0.00 | 6.98 | -10.29 | 337.49 | 18.02 | 232.93 | 0.3832 | -350.3 | -351.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.71 | -7.62 | 343.23 | 23.75 | 245.87 | 0.4393 | 803.0 | 611.1 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -9.01 | 343.12 | 23.64 | 242.90 | 0.4468 | 644.0 | 482.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -10.70 | 341.05 | 21.58 | 237.28 | 0.4314 | 792.0 | 649.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -10.15 | 337.81 | 18.33 | 234.14 | 0.3837 | -729.0 | -547.9 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -9.59 | 337.46 | 17.98 | 234.84 | 0.3740 | -853.0 | -721.3 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -12.88 | 336.39 | 16.92 | 226.38 | 0.3935 | -691.0 | -515.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -12.75 | 336.16 | 16.69 | 226.23 | 0.3895 | -898.0 | -674.3 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -7.61 | 334.86 | 15.39 | 235.43 | 0.3209 | -896.0 | -698.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -10.92 | 334.95 | 15.47 | 227.78 | 0.3553 | -800.0 | -653.6 | |
| 0.00 | 2.67 | 0.00 | 1.41 | -10.82 | 334.54 | 15.06 | 227.22 | 0.3492 | -875.0 | -743.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
