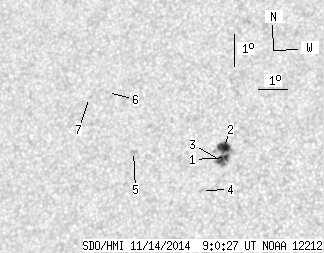

SDO HMI 2014-11-14 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.66 | 33.91 | 8.74 | 19.00 | 16.33 | 294.49 | -24.99 | 59.75 | 0.4711 | -540.8 | -265.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.58 | 27.02 | 1.44 | 15.08 | 16.16 | 295.19 | -24.28 | 59.44 | 0.4606 | -1039.9 | -601.1 | |
| 8.52 | -1.00 | 4.76 | -1.00 | 16.47 | 295.05 | -24.43 | 58.99 | 0.4646 | -945.2 | 999999 | |
| 4.56 | -1.00 | 2.54 | -1.00 | 16.07 | 295.00 | -24.47 | 59.81 | 0.4625 | -935.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 15.14 | 294.47 | -25.00 | 62.09 | 0.4636 | -746.0 | -632.8 | |
| 0.00 | 3.10 | 0.00 | 1.77 | 16.28 | 291.98 | -27.50 | 61.93 | 0.5043 | 856.0 | 669.9 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 18.06 | 290.77 | -28.71 | 59.69 | 0.5311 | 622.0 | 503.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 17.90 | 290.16 | -29.32 | 60.43 | 0.5379 | 752.0 | 665.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
