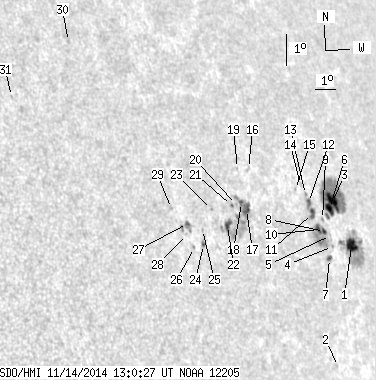

SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.15 | 229.82 | 46.98 | 213.16 | 13.85 | 14.64 | 57.36 | 284.60 | 0.8461 | -414.6 | -141.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.75 | 52.98 | 10.56 | 52.13 | 12.99 | 16.85 | 59.56 | 283.35 | 0.8655 | -601.7 | -154.7 | |
| 0.00 | 0.86 | 0.00 | 0.79 | 9.42 | 14.91 | 57.62 | 279.31 | 0.8464 | -439.0 | -382.3 | |
| 11.87 | 67.95 | 11.51 | 65.93 | 14.35 | 16.27 | 58.98 | 284.98 | 0.8615 | -577.4 | -50.4 | |
| 0.00 | 1.03 | 0.00 | 0.98 | 13.01 | 15.72 | 58.43 | 283.47 | 0.8557 | -443.0 | -469.7 | |
| 0.00 | 1.03 | 0.00 | 0.98 | 13.34 | 15.73 | 58.45 | 283.86 | 0.8561 | -484.0 | -462.1 | |
| 6.02 | -3.00 | 5.79 | -3.00 | 14.15 | 16.00 | 58.72 | 284.77 | 0.8591 | -689.1 | 999999 | |
| 1.38 | 2.58 | 1.30 | 2.43 | 12.66 | 15.42 | 58.13 | 283.08 | 0.8528 | -615.8 | -565.9 | |
| 1.72 | 23.14 | 1.62 | 21.69 | 13.48 | 15.44 | 58.15 | 284.04 | 0.8536 | -659.8 | -547.8 | |
| 0.00 | 1.29 | 0.00 | 1.22 | 13.84 | 15.46 | 58.18 | 284.46 | 0.8541 | -445.0 | -423.3 | |
| 2.67 | -8.00 | 2.50 | -8.00 | 13.55 | 15.12 | 57.83 | 284.16 | 0.8508 | -782.7 | 999999 | |
| 3.27 | 10.06 | 3.05 | 9.39 | 14.04 | 14.97 | 57.68 | 284.76 | 0.8499 | -696.8 | -558.9 | |
| 1.72 | -11.00 | 1.61 | -11.00 | 14.38 | 14.87 | 57.58 | 285.16 | 0.8493 | -600.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.36 | 14.63 | 14.80 | 57.51 | 285.46 | 0.8489 | -493.0 | -419.1 | |
| 0.00 | 1.55 | 0.00 | 1.44 | 14.94 | 14.65 | 57.36 | 285.85 | 0.8478 | -342.0 | -339.8 | |
| 0.00 | 0.69 | 0.00 | 0.63 | 14.80 | 14.30 | 57.01 | 285.73 | 0.8446 | -580.0 | -528.0 | |
| 0.00 | 1.55 | 0.00 | 1.35 | 15.54 | 12.01 | 54.72 | 286.92 | 0.8243 | -461.0 | -400.1 | |
| 4.56 | 43.69 | 3.90 | 36.87 | 14.31 | 11.44 | 54.15 | 285.51 | 0.8173 | -715.8 | -52.5 | |
| 0.95 | -17.00 | 0.81 | -17.00 | 14.53 | 11.25 | 53.97 | 285.81 | 0.8158 | -677.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.81 | 15.57 | 11.43 | 54.14 | 287.04 | 0.8188 | -480.0 | -370.7 | |
| 0.00 | 0.95 | 0.00 | 0.80 | 14.48 | 10.98 | 53.69 | 285.79 | 0.8130 | -729.0 | -624.6 | |
| 0.34 | 1.46 | 0.29 | 1.23 | 14.47 | 10.71 | 53.42 | 285.80 | 0.8104 | -672.0 | -616.2 | |
| 3.44 | -17.00 | 2.86 | -17.00 | 13.87 | 10.30 | 53.01 | 285.13 | 0.8056 | 613.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.57 | 14.39 | 9.66 | 52.37 | 285.86 | 0.7998 | 124.0 | 176.5 | |
| 0.60 | 2.49 | 0.49 | 2.01 | 13.35 | 8.93 | 51.64 | 284.68 | 0.7910 | 598.4 | 479.7 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 13.80 | 9.02 | 51.73 | 285.23 | 0.7925 | 257.0 | 210.0 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 13.28 | 8.47 | 51.18 | 284.65 | 0.7860 | 549.0 | 458.5 | |
| 0.86 | 8.00 | 0.69 | 6.36 | 14.01 | 8.35 | 51.06 | 285.60 | 0.7858 | 361.6 | 420.9 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 13.68 | 8.20 | 50.91 | 285.21 | 0.7838 | 607.0 | 534.3 | |
| 0.00 | 1.55 | 0.00 | 1.22 | 14.49 | 7.72 | 50.43 | 286.32 | 0.7800 | 750.0 | 569.1 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 19.75 | 4.71 | 47.42 | 293.76 | 0.7595 | 78.0 | 105.4 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 18.16 | 1.56 | 44.27 | 292.63 | 0.7210 | 394.0 | 353.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
