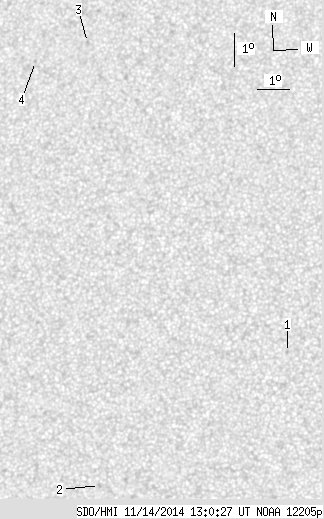

SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.50 | 0.00 | 2.89 | 12.04 | 301.66 | -15.63 | 60.83 | 0.3177 | 19.2 | 16.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.65 | 9.05 | 306.93 | -10.36 | 58.81 | 0.2086 | 751.0 | 627.6 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 5.03 | 301.26 | -16.02 | 81.97 | 0.2790 | 808.0 | 500.0 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 18.34 | 300.07 | -17.22 | 46.34 | 0.3900 | -748.0 | -614.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 17.74 | 298.43 | -18.86 | 50.00 | 0.4036 | -734.0 | -577.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
