SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.10 | 292.73 | 23.99 | 152.50 | -11.67 | 307.39 | -9.90 | 147.01 | 0.3099 | -135.3 | -231.1 | |
|
previous
or next observation for the same group /

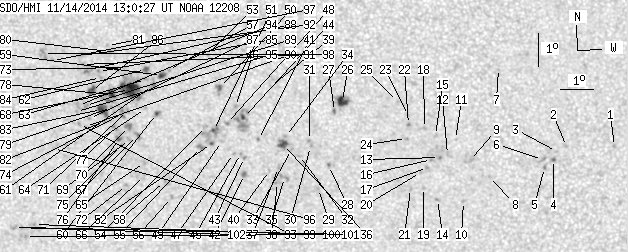

back to the solar disc SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.47 | 319.87 | 2.58 | 189.40 | 0.2702 | 877.0 | 664.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.46 | 318.41 | 1.12 | 184.12 | 0.2672 | 798.0 | 565.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.62 | 318.11 | 0.82 | 182.97 | 0.2695 | 783.0 | 654.2 | |
| 0.34 | 1.55 | 0.18 | 0.80 | -12.86 | 318.01 | 0.73 | 182.60 | 0.2735 | 803.2 | 712.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -13.11 | 317.74 | 0.45 | 181.60 | 0.2775 | -372.0 | -398.0 | |
| 0.00 | 2.92 | 0.00 | 1.51 | -12.86 | 317.68 | 0.39 | 181.40 | 0.2733 | 723.0 | 586.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -10.07 | 316.35 | -0.93 | 175.92 | 0.2265 | 656.0 | 605.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.39 | 316.06 | -1.22 | 175.77 | 0.2828 | 736.0 | 644.6 | |
| 0.00 | 4.99 | 0.00 | 2.57 | -12.89 | 315.46 | -1.83 | 173.49 | 0.2755 | 748.0 | 679.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.16 | 315.26 | -2.02 | 173.35 | 0.2970 | 870.0 | 620.7 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -12.25 | 315.04 | -2.25 | 171.66 | 0.2656 | 838.0 | 700.1 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -12.71 | 314.79 | -2.50 | 171.04 | 0.2739 | 947.0 | 679.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.80 | 314.55 | -2.74 | 170.23 | 0.2761 | 995.0 | 836.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -14.10 | 314.47 | -2.82 | 170.74 | 0.2978 | 900.0 | 706.9 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.12 | 314.43 | -2.85 | 169.37 | 0.2652 | 808.0 | 747.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.86 | 314.30 | -2.99 | 169.42 | 0.2779 | 930.0 | 789.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.11 | 314.18 | -3.11 | 169.16 | 0.2824 | 857.0 | 672.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.91 | 314.10 | -3.19 | 168.00 | 0.2628 | 956.0 | 780.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.73 | 314.05 | -3.24 | 169.14 | 0.2930 | 793.0 | 598.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.26 | 313.96 | -3.33 | 168.54 | 0.2856 | 743.0 | 551.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -13.76 | 313.65 | -3.64 | 167.87 | 0.2948 | 846.0 | 689.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -11.79 | 313.62 | -3.67 | 166.13 | 0.2626 | 1090.0 | 885.8 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -11.51 | 313.62 | -3.67 | 165.89 | 0.2581 | 995.0 | 795.0 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.22 | 313.55 | -3.74 | 166.29 | 0.2699 | 997.0 | 892.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.08 | 313.30 | -3.99 | 164.23 | 0.2525 | 829.0 | 671.5 | |
| 6.36 | 10.23 | 3.27 | 5.25 | -11.09 | 311.63 | -5.66 | 158.19 | 0.2617 | 1174.0 | 832.6 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -11.40 | 311.38 | -5.91 | 157.78 | 0.2681 | 838.0 | 687.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.06 | 311.15 | -6.13 | 159.27 | 0.2953 | 864.0 | 751.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.77 | 310.83 | -6.46 | 159.15 | 0.3084 | 800.0 | 682.5 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -12.47 | 310.62 | -6.67 | 156.85 | 0.2897 | 915.0 | 742.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.29 | 310.59 | -6.69 | 156.51 | 0.2870 | 968.0 | 758.3 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -12.75 | 310.28 | -7.01 | 156.18 | 0.2962 | 760.0 | 650.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -12.57 | 310.04 | -7.25 | 155.20 | 0.2951 | 830.0 | 637.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.17 | 309.86 | -7.42 | 154.08 | 0.2903 | 939.0 | 725.2 | |
| 0.00 | 4.04 | 0.00 | 2.10 | -13.43 | 309.79 | -7.49 | 155.72 | 0.3099 | 808.0 | 743.0 | |
| 3.10 | 6.88 | 1.60 | 3.56 | -12.42 | 309.80 | -7.49 | 154.26 | 0.2945 | 1104.8 | 807.0 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -13.13 | 309.62 | -7.67 | 154.79 | 0.3064 | 695.0 | 519.0 | |
| 0.00 | 2.49 | 0.00 | 1.30 | -13.59 | 309.57 | -7.71 | 155.30 | 0.3137 | 401.0 | 363.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.64 | 309.45 | -7.84 | 150.20 | 0.2709 | 740.0 | 522.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.22 | 309.34 | -7.95 | 154.13 | 0.3099 | 619.0 | 452.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.27 | 309.03 | -8.25 | 151.79 | 0.2981 | 771.0 | 607.4 | |
| 0.00 | 2.58 | 0.00 | 1.35 | -13.35 | 308.57 | -8.72 | 152.18 | 0.3176 | -621.0 | -696.3 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -12.82 | 308.58 | -8.70 | 151.42 | 0.3098 | 895.0 | 710.9 | |
| 1.29 | 19.87 | 0.67 | 10.29 | -11.60 | 308.60 | -8.69 | 149.38 | 0.2919 | -1012.1 | -402.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.70 | 308.47 | -8.82 | 150.89 | 0.3089 | 879.0 | 704.2 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -11.26 | 308.36 | -8.93 | 148.09 | 0.2892 | -890.0 | -752.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.70 | 308.25 | -9.04 | 150.31 | 0.3107 | 805.0 | 605.7 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -11.78 | 308.07 | -9.22 | 148.22 | 0.2992 | -1052.0 | -826.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.34 | 307.90 | -9.39 | 148.73 | 0.3085 | 774.0 | 605.0 | |
| 0.86 | 5.07 | 0.44 | 2.62 | -10.68 | 307.89 | -9.40 | 145.63 | 0.2855 | 1149.6 | 814.5 | |
| 0.77 | 14.62 | 0.40 | 7.61 | -12.00 | 307.66 | -9.63 | 147.51 | 0.3058 | -732.3 | -76.9 | |
| 0.52 | -51.00 | 0.27 | -51.00 | -12.40 | 307.58 | -9.70 | 148.01 | 0.3121 | 928.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -9.68 | 307.56 | -9.73 | 142.54 | 0.2752 | -842.0 | -589.2 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -11.88 | 307.42 | -9.87 | 146.64 | 0.3064 | -639.0 | -468.2 | |
| 0.00 | 3.53 | 0.00 | 1.84 | -12.53 | 307.24 | -10.05 | 147.33 | 0.3169 | 974.0 | 809.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -14.08 | 306.27 | -11.02 | 147.55 | 0.3469 | -936.0 | -703.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.15 | 306.35 | -10.94 | 140.32 | 0.2939 | -867.0 | -677.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -13.58 | 306.08 | -11.21 | 146.28 | 0.3420 | -931.0 | -845.3 | |
| 2.06 | 3.96 | 1.07 | 2.05 | -10.33 | 306.13 | -11.16 | 140.17 | 0.2986 | -1042.4 | -862.8 | |
| 0.69 | 3.18 | 0.36 | 1.66 | -11.49 | 305.93 | -11.36 | 142.10 | 0.3157 | -932.1 | -727.1 | |
| 0.00 | 5.59 | 0.00 | 2.91 | -10.64 | 305.84 | -11.45 | 140.12 | 0.3056 | -1011.0 | -744.3 | |
| 1.12 | 3.18 | 0.58 | 1.65 | -10.15 | 305.64 | -11.65 | 138.57 | 0.3017 | -1050.0 | -894.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -10.46 | 305.63 | -11.66 | 139.22 | 0.3056 | -1046.0 | -851.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -11.34 | 305.59 | -11.70 | 140.99 | 0.3172 | -794.0 | -596.6 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -13.00 | 305.48 | -11.80 | 143.90 | 0.3398 | -884.0 | -636.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -13.41 | 305.46 | -11.82 | 144.56 | 0.3453 | -832.0 | -671.0 | |
| 0.00 | 3.78 | 0.00 | 1.99 | -12.17 | 305.31 | -11.98 | 141.96 | 0.3308 | -1046.0 | -819.7 | |
| 17.63 | 38.62 | 9.20 | 20.13 | -10.77 | 305.12 | -12.16 | 138.69 | 0.3150 | -1172.4 | -681.4 | |
| 0.00 | 2.32 | 0.00 | 1.22 | -12.30 | 305.05 | -12.23 | 141.62 | 0.3350 | -877.0 | -688.7 | |
| 0.00 | 4.04 | 0.00 | 2.12 | -11.90 | 305.04 | -12.25 | 140.82 | 0.3300 | -1007.0 | -945.7 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -11.41 | 305.03 | -12.25 | 139.82 | 0.3239 | -220.0 | -242.4 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -13.72 | 304.89 | -12.40 | 143.82 | 0.3550 | -958.0 | -754.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.10 | 305.00 | -12.29 | 136.92 | 0.3082 | -858.0 | -671.5 | |
| 0.00 | 4.04 | 0.00 | 2.12 | -11.50 | 304.87 | -12.41 | 139.65 | 0.3268 | -815.0 | -828.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.49 | 304.80 | -12.49 | 141.40 | 0.3400 | -747.0 | -624.2 | |
| 0.77 | 2.24 | 0.41 | 1.18 | -12.30 | 304.71 | -12.58 | 140.86 | 0.3385 | -940.8 | -836.8 | |
| 0.00 | 2.58 | 0.00 | 1.36 | -11.94 | 304.64 | -12.65 | 139.98 | 0.3347 | -694.0 | -871.6 | |
| 3.53 | 26.75 | 1.84 | 14.01 | -10.93 | 304.56 | -12.73 | 137.74 | 0.3232 | -1124.4 | -839.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -11.32 | 304.54 | -12.75 | 138.54 | 0.3282 | -1086.0 | -837.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.62 | 304.55 | -12.73 | 134.80 | 0.3077 | -1040.0 | -776.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -9.44 | 304.50 | -12.79 | 134.25 | 0.3062 | -874.0 | -640.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -11.75 | 304.30 | -12.98 | 138.89 | 0.3361 | -773.0 | -665.5 | |
| 3.96 | -78.00 | 2.08 | -78.00 | -11.39 | 304.23 | -13.06 | 137.98 | 0.3324 | -973.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -10.41 | 304.24 | -13.05 | 135.93 | 0.3206 | -973.0 | -752.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.23 | 304.19 | -13.10 | 135.40 | 0.3191 | -1102.0 | -930.3 | |
| 3.10 | 5.50 | 1.62 | 2.89 | -10.81 | 303.95 | -13.34 | 136.16 | 0.3287 | -982.1 | -813.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.67 | 303.84 | -13.45 | 137.73 | 0.3401 | -877.0 | -778.3 | |
| 0.00 | 5.25 | 0.00 | 2.74 | -10.17 | 303.88 | -13.41 | 134.61 | 0.3220 | -747.0 | -830.5 | |
| 0.00 | 2.49 | 0.00 | 1.31 | -11.27 | 303.74 | -13.55 | 136.69 | 0.3365 | -762.0 | -726.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.91 | 303.70 | -13.58 | 137.94 | 0.3446 | -771.0 | -580.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.02 | 303.70 | -13.59 | 133.90 | 0.3224 | -931.0 | -817.5 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -9.75 | 303.65 | -13.64 | 133.16 | 0.3200 | -778.0 | -593.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -11.86 | 303.52 | -13.77 | 137.44 | 0.3459 | -1019.0 | -807.8 | |
| 0.00 | 2.58 | 0.00 | 1.36 | -11.27 | 303.52 | -13.77 | 136.24 | 0.3390 | -660.0 | -618.4 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -11.46 | 303.45 | -13.84 | 136.48 | 0.3420 | -755.0 | -594.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.60 | 302.66 | -14.62 | 137.20 | 0.3642 | -849.0 | -676.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -9.91 | 302.78 | -14.51 | 131.77 | 0.3325 | -791.0 | -688.4 | |
| 0.00 | 6.54 | 0.00 | 3.43 | -9.70 | 302.51 | -14.78 | 130.77 | 0.3336 | -825.0 | -694.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.97 | 301.90 | -15.38 | 139.99 | 0.4004 | -880.0 | -735.6 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -15.34 | 301.59 | -15.70 | 140.05 | 0.4082 | -746.0 | -546.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -15.06 | 301.51 | -15.77 | 139.46 | 0.4056 | -804.0 | -671.3 | |
| 0.00 | 2.15 | 0.00 | 1.17 | -15.07 | 301.26 | -16.03 | 139.02 | 0.4083 | -736.0 | -646.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
