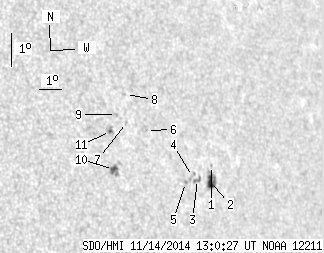

SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.91 | 34.74 | 5.80 | 25.34 | 8.65 | 4.39 | 47.10 | 279.12 | 0.7356 | -76.5 | -103.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.65 | 8.61 | 6.19 | 48.90 | 278.88 | 0.7564 | -397.0 | -327.0 | |
| 5.16 | 12.21 | 3.88 | 9.19 | 8.14 | 6.06 | 48.77 | 278.26 | 0.7547 | -811.9 | -511.4 | |
| 0.00 | 3.78 | 0.00 | 2.81 | 8.22 | 5.48 | 48.20 | 278.41 | 0.7481 | -768.0 | -615.0 | |
| 0.00 | 2.67 | 0.00 | 1.97 | 8.32 | 5.28 | 47.99 | 278.56 | 0.7458 | -731.0 | -570.1 | |
| 0.00 | 1.38 | 0.00 | 1.01 | 8.15 | 4.93 | 47.65 | 278.37 | 0.7417 | -605.0 | -579.7 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 9.76 | 3.49 | 46.20 | 280.71 | 0.7263 | 443.0 | 415.1 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 10.03 | 2.67 | 45.38 | 281.19 | 0.7169 | 511.0 | 398.3 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 10.87 | 2.78 | 45.50 | 282.34 | 0.7193 | 394.0 | 375.8 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 10.28 | 2.29 | 45.00 | 281.60 | 0.7126 | 736.0 | 655.7 | |
| 2.06 | 6.36 | 1.44 | 4.44 | 8.65 | 1.88 | 44.60 | 279.35 | 0.7058 | 850.6 | 642.5 | |
| 0.69 | 3.78 | 0.48 | 2.64 | 9.79 | 1.94 | 44.65 | 280.95 | 0.7078 | 818.1 | 544.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
