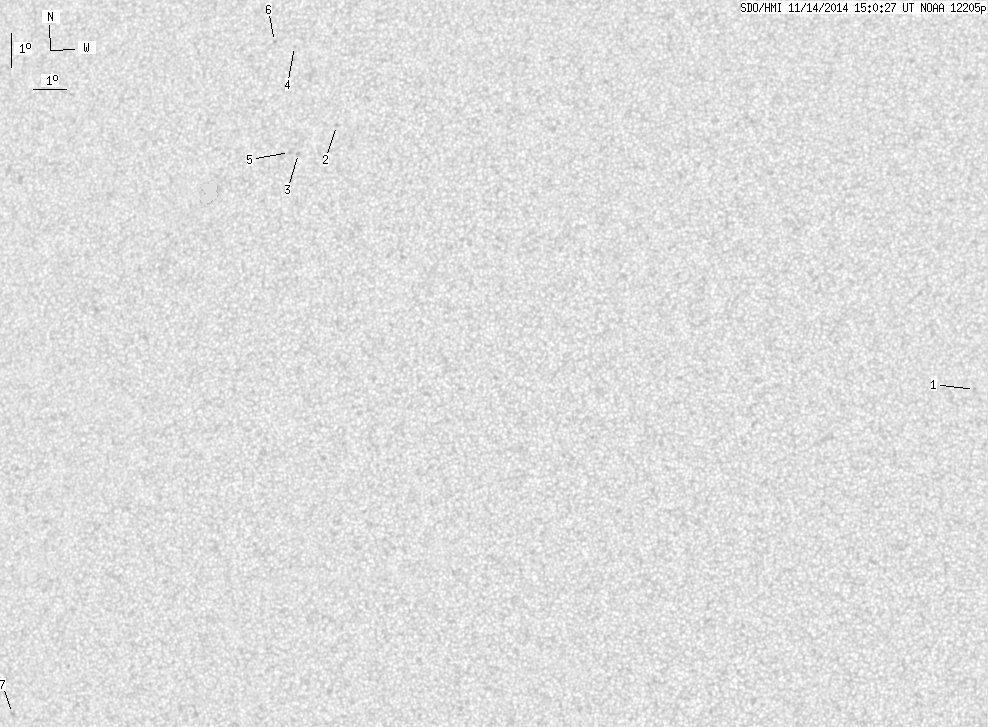

SDO HMI 2014-11-14 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.09 | 0.00 | 4.35 | 14.30 | 299.33 | -16.86 | 93.21 | 0.3799 | -561.9 | -398.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.53 | 319.44 | 3.25 | 337.18 | 0.1445 | -882.0 | -711.5 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 18.44 | 299.39 | -16.80 | 45.48 | 0.3862 | -732.0 | -558.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 17.56 | 298.24 | -17.95 | 49.03 | 0.3909 | -887.0 | -786.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 20.87 | 297.73 | -18.46 | 43.61 | 0.4308 | -777.0 | -615.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 17.59 | 297.94 | -18.25 | 49.42 | 0.3948 | -737.0 | -562.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 21.01 | 297.04 | -19.15 | 44.36 | 0.4399 | -779.0 | -590.5 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 0.64 | 289.94 | -26.25 | 94.45 | 0.4455 | 861.0 | 598.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
