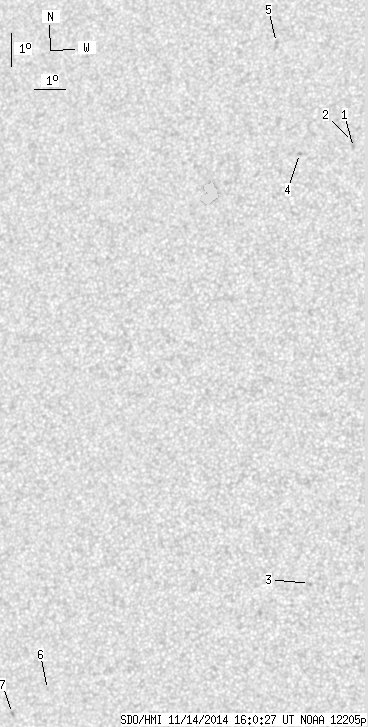

SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.72 | 0.00 | 5.21 | 11.19 | 296.60 | -19.03 | 65.72 | 0.3793 | -162.9 | -81.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.50 | 17.77 | 300.01 | -15.63 | 44.81 | 0.3656 | -830.0 | -638.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 17.96 | 299.96 | -15.68 | 44.53 | 0.3682 | -869.0 | -712.0 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 4.67 | 299.35 | -16.29 | 83.34 | 0.2827 | 812.0 | 616.6 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 17.57 | 298.28 | -17.36 | 48.11 | 0.3838 | -957.0 | -738.3 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 20.99 | 297.13 | -18.51 | 43.47 | 0.4326 | -794.0 | -582.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 1.39 | 291.09 | -24.54 | 93.04 | 0.4176 | 675.0 | 579.7 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 0.65 | 289.95 | -25.69 | 94.55 | 0.4366 | 823.0 | 644.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
