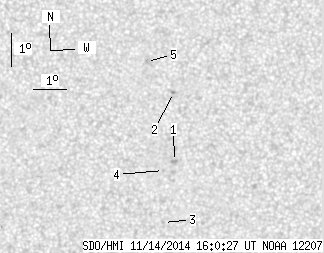

SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.49 | 0.00 | 3.83 | -10.13 | 323.17 | 7.53 | 210.02 | 0.2610 | 892.2 | 729.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.84 | 0.00 | 1.46 | -10.75 | 323.42 | 7.78 | 209.42 | 0.2720 | 889.0 | 803.8 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -8.66 | 323.34 | 7.70 | 213.50 | 0.2412 | 974.0 | 774.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.62 | 323.13 | 7.49 | 205.45 | 0.2975 | 796.0 | 592.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.03 | 323.09 | 7.45 | 207.89 | 0.2734 | 850.0 | 580.4 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -7.71 | 322.51 | 6.87 | 212.78 | 0.2200 | 952.0 | 740.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
