SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.17 | 256.32 | 22.35 | 133.14 | -11.84 | 307.00 | -8.64 | 150.72 | 0.3016 | -217.6 | -303.4 | |
|
previous
or next observation for the same group /

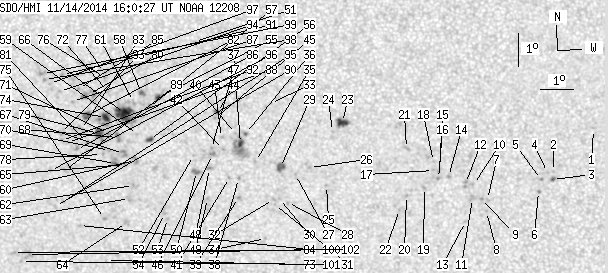

back to the solar disc SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.22 | -11.25 | 319.33 | 3.69 | 194.47 | 0.2538 | 530.0 | 617.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.53 | 318.13 | 2.49 | 189.05 | 0.2709 | 831.0 | 714.7 | |
| 0.69 | 1.72 | 0.35 | 0.89 | -12.78 | 318.10 | 2.46 | 188.81 | 0.2749 | 855.4 | 746.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.56 | 317.95 | 2.31 | 188.38 | 0.2709 | 846.0 | 692.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.77 | 317.77 | 2.13 | 187.63 | 0.2741 | 934.0 | 789.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.14 | 317.68 | 2.04 | 187.14 | 0.2801 | -675.0 | -475.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -13.39 | 316.12 | 0.49 | 181.68 | 0.2821 | 924.0 | 741.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.76 | 316.09 | 0.46 | 181.54 | 0.2884 | 766.0 | 569.0 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.36 | 315.94 | 0.30 | 181.05 | 0.2815 | 887.0 | 753.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.92 | 315.70 | 0.06 | 180.21 | 0.2742 | 856.0 | 678.1 | |
| 0.00 | 3.78 | 0.00 | 1.95 | -13.36 | 315.67 | 0.03 | 180.10 | 0.2815 | 777.0 | 690.1 | |
| 0.00 | 2.32 | 0.00 | 1.20 | -12.89 | 315.45 | -0.18 | 179.34 | 0.2737 | 815.0 | 828.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.07 | 315.45 | -0.19 | 179.38 | 0.2935 | 856.0 | 570.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.68 | 314.94 | -0.70 | 177.46 | 0.2703 | 945.0 | 741.2 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -12.49 | 314.67 | -0.97 | 176.43 | 0.2674 | 739.0 | 674.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.74 | 314.63 | -1.00 | 176.38 | 0.2716 | 990.0 | 868.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.49 | 314.48 | -1.15 | 175.77 | 0.2676 | 955.0 | 802.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.22 | 314.49 | -1.15 | 175.69 | 0.2630 | 978.0 | 688.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.02 | 314.21 | -1.43 | 174.93 | 0.2768 | 812.0 | 687.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.26 | 313.66 | -1.98 | 173.11 | 0.2819 | 886.0 | 721.0 | |
| 0.00 | 2.41 | 0.00 | 1.23 | -11.82 | 313.67 | -1.97 | 172.47 | 0.2577 | 1024.0 | 768.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.70 | 313.44 | -2.20 | 172.57 | 0.2896 | 845.0 | 716.1 | |
| 4.81 | 7.65 | 2.46 | 3.91 | -11.02 | 311.74 | -3.90 | 164.51 | 0.2510 | 1217.9 | 918.2 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -11.30 | 311.43 | -4.20 | 163.67 | 0.2569 | 740.0 | 662.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.96 | 311.22 | -4.42 | 164.65 | 0.2848 | 987.0 | 713.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.41 | 310.71 | -4.92 | 162.39 | 0.2783 | 1012.0 | 747.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.62 | 310.28 | -5.35 | 161.21 | 0.2840 | 846.0 | 634.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.49 | 310.02 | -5.62 | 161.35 | 0.2992 | 969.0 | 793.2 | |
| 3.01 | 5.85 | 1.55 | 3.02 | -12.41 | 309.83 | -5.81 | 159.48 | 0.2832 | 1120.2 | 854.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.36 | 309.78 | -5.86 | 160.47 | 0.2985 | 851.0 | 683.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.55 | 309.62 | -6.02 | 160.20 | 0.3024 | 804.0 | 637.1 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.40 | 309.59 | -6.05 | 159.94 | 0.3001 | 716.0 | 605.7 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -10.45 | 309.57 | -6.07 | 155.77 | 0.2544 | 953.0 | 771.9 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -14.61 | 309.31 | -6.33 | 160.48 | 0.3206 | 731.0 | 569.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.23 | 309.07 | -6.57 | 156.82 | 0.2852 | 856.0 | 670.1 | |
| 0.34 | 1.38 | 0.18 | 0.71 | -11.37 | 308.79 | -6.85 | 154.62 | 0.2740 | -722.8 | -547.8 | |
| 2.15 | 22.35 | 1.11 | 11.54 | -11.68 | 308.63 | -7.01 | 154.60 | 0.2798 | -970.3 | -279.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.75 | 308.54 | -7.10 | 155.92 | 0.2968 | 829.0 | 664.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.34 | 308.52 | -7.12 | 156.67 | 0.3058 | -924.0 | -770.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.37 | 308.48 | -7.15 | 153.65 | 0.2763 | -842.0 | -603.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.72 | 308.26 | -7.38 | 155.05 | 0.2982 | 790.0 | 626.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.86 | 308.10 | -7.53 | 153.26 | 0.2865 | -875.0 | -617.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.50 | 308.05 | -7.58 | 152.51 | 0.2814 | -844.0 | -633.8 | |
| 0.69 | 2.49 | 0.35 | 1.28 | -10.73 | 307.95 | -7.68 | 150.85 | 0.2709 | 1012.1 | 822.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.92 | 307.86 | -7.78 | 150.88 | 0.2744 | 870.0 | 638.8 | |
| 0.00 | 2.92 | 0.00 | 1.51 | -12.02 | 307.76 | -7.87 | 152.49 | 0.2914 | -841.0 | -752.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.84 | 307.74 | -7.90 | 152.11 | 0.2889 | -893.0 | -749.4 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -12.45 | 307.66 | -7.98 | 152.87 | 0.2986 | 1034.0 | 739.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.38 | 307.57 | -8.07 | 154.00 | 0.3130 | -879.0 | -611.8 | |
| 0.00 | 4.47 | 0.00 | 2.32 | -12.55 | 307.26 | -8.38 | 151.86 | 0.3031 | 995.0 | 796.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -8.58 | 307.31 | -8.33 | 144.23 | 0.2462 | -705.0 | -658.4 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -12.05 | 307.18 | -8.46 | 150.84 | 0.2965 | 777.0 | 625.4 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -14.00 | 306.31 | -9.33 | 151.55 | 0.3318 | -675.0 | -557.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.85 | 306.22 | -9.42 | 151.10 | 0.3302 | -783.0 | -619.4 | |
| 1.38 | 4.56 | 0.71 | 2.35 | -10.29 | 306.14 | -9.50 | 144.51 | 0.2810 | -1113.9 | -780.2 | |
| 1.63 | 3.18 | 0.85 | 1.65 | -11.57 | 305.85 | -9.79 | 146.27 | 0.3014 | -1020.6 | -868.6 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -10.60 | 305.85 | -9.79 | 144.35 | 0.2880 | -859.0 | -828.5 | |
| 0.77 | 2.58 | 0.40 | 1.33 | -10.14 | 305.65 | -9.99 | 142.84 | 0.2838 | -1095.1 | -974.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.42 | 305.48 | -10.15 | 145.01 | 0.3027 | -821.0 | -690.9 | |
| 0.00 | 3.61 | 0.00 | 1.88 | -12.22 | 305.39 | -10.25 | 146.27 | 0.3145 | -590.0 | -770.1 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -10.42 | 305.40 | -10.24 | 142.74 | 0.2901 | -503.0 | -499.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.99 | 305.30 | -10.34 | 147.38 | 0.3259 | -947.0 | -790.5 | |
| 0.00 | 3.18 | 0.00 | 1.67 | -13.39 | 305.16 | -10.48 | 147.71 | 0.3327 | -786.0 | -661.2 | |
| 0.00 | 3.61 | 0.00 | 1.90 | -14.14 | 305.03 | -10.61 | 148.59 | 0.3442 | -908.0 | -718.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -12.35 | 305.08 | -10.56 | 145.70 | 0.3191 | -965.0 | -718.9 | |
| 15.48 | 30.35 | 8.03 | 15.74 | -10.78 | 305.11 | -10.53 | 142.75 | 0.2979 | -1216.3 | -715.0 | |
| 0.00 | 4.47 | 0.00 | 2.33 | -12.01 | 305.03 | -10.61 | 144.96 | 0.3150 | -939.0 | -966.7 | |
| 0.00 | 4.56 | 0.00 | 2.37 | -11.52 | 304.87 | -10.77 | 143.60 | 0.3100 | -914.0 | -840.8 | |
| 0.52 | 5.67 | 0.27 | 2.97 | -12.32 | 304.77 | -10.87 | 144.88 | 0.3216 | -943.2 | -813.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.92 | 304.60 | -11.04 | 143.72 | 0.3179 | -1012.0 | -900.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.40 | 304.59 | -11.04 | 142.68 | 0.3112 | -1022.0 | -896.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.12 | 304.64 | -11.00 | 140.11 | 0.2941 | -901.0 | -628.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -15.33 | 304.34 | -11.30 | 148.81 | 0.3664 | -712.0 | -531.8 | |
| 3.87 | 13.33 | 2.01 | 6.93 | -10.91 | 304.52 | -11.12 | 141.51 | 0.3056 | -1144.2 | -864.4 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -14.02 | 304.35 | -11.29 | 146.81 | 0.3485 | -887.0 | -786.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -9.69 | 304.53 | -11.10 | 138.87 | 0.2899 | -1023.0 | -844.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -9.54 | 304.54 | -11.10 | 138.53 | 0.2880 | -907.0 | -655.3 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -12.05 | 304.35 | -11.29 | 143.34 | 0.3221 | -491.0 | -508.8 | |
| 4.73 | 8.51 | 2.47 | 4.44 | -11.40 | 304.28 | -11.35 | 141.93 | 0.3143 | -1031.9 | -809.8 | |
| 0.00 | 7.05 | 0.00 | 3.66 | -10.22 | 304.02 | -11.61 | 138.78 | 0.3020 | -774.0 | -847.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.68 | 303.93 | -11.71 | 141.64 | 0.3216 | -927.0 | -801.7 | |
| 3.10 | 5.42 | 1.61 | 2.82 | -10.86 | 303.94 | -11.70 | 139.96 | 0.3110 | -994.7 | -780.6 | |
| 0.00 | 3.96 | 0.00 | 2.07 | -11.29 | 303.76 | -11.87 | 140.44 | 0.3183 | -869.0 | -669.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -14.24 | 303.56 | -12.08 | 145.39 | 0.3588 | -657.0 | -506.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -10.04 | 303.72 | -11.91 | 137.66 | 0.3032 | -964.0 | -843.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -11.90 | 303.58 | -12.06 | 141.25 | 0.3280 | -1103.0 | -914.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.43 | 303.52 | -12.12 | 138.07 | 0.3103 | -698.0 | -578.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.69 | 303.31 | -12.32 | 140.21 | 0.3281 | -792.0 | -596.3 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -12.55 | 303.18 | -12.46 | 141.58 | 0.3404 | -732.0 | -579.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.51 | 303.10 | -12.54 | 143.13 | 0.3535 | -740.0 | -619.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.61 | 303.25 | -12.39 | 135.57 | 0.3036 | -945.0 | -850.3 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -11.63 | 303.13 | -12.51 | 139.68 | 0.3293 | -603.0 | -499.5 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -11.41 | 303.11 | -12.53 | 139.20 | 0.3269 | -678.0 | -569.0 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -10.13 | 303.13 | -12.50 | 136.50 | 0.3110 | -872.0 | -610.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -13.66 | 302.84 | -12.80 | 142.85 | 0.3581 | -900.0 | -755.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -12.55 | 302.74 | -12.90 | 140.63 | 0.3450 | -899.0 | -571.4 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -9.89 | 302.84 | -12.80 | 135.28 | 0.3116 | -818.0 | -772.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -9.77 | 302.69 | -12.95 | 134.68 | 0.3120 | -940.0 | -840.7 | |
| 0.00 | 2.92 | 0.00 | 1.52 | -9.59 | 302.63 | -13.01 | 134.13 | 0.3106 | -893.0 | -746.1 | |
| 0.00 | 6.36 | 0.00 | 3.41 | -15.16 | 301.86 | -13.77 | 143.36 | 0.3867 | -560.0 | -745.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -15.39 | 301.66 | -13.98 | 143.31 | 0.3915 | -547.0 | -467.1 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -15.11 | 301.42 | -14.21 | 142.41 | 0.3903 | -740.0 | -666.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
