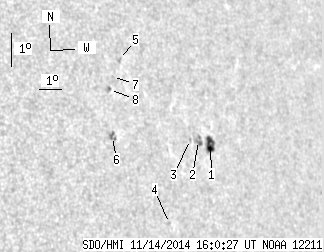

SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.82 | 28.29 | 6.11 | 21.48 | 8.52 | 4.85 | 49.21 | 278.76 | 0.7596 | -226.8 | -64.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.82 | 11.44 | 6.11 | 8.94 | 8.15 | 6.32 | 50.68 | 278.15 | 0.7759 | -659.3 | -389.0 | |
| 0.00 | 5.93 | 0.00 | 4.59 | 8.29 | 5.78 | 50.14 | 278.37 | 0.7701 | -675.0 | -643.2 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 8.33 | 5.41 | 49.77 | 278.45 | 0.7660 | -718.0 | -659.7 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 5.88 | 4.09 | 48.45 | 275.27 | 0.7499 | -460.0 | -389.6 | |
| 0.00 | 1.98 | 0.00 | 1.44 | 10.84 | 2.66 | 47.02 | 282.07 | 0.7372 | 595.0 | 495.4 | |
| 0.00 | 4.13 | 0.00 | 2.96 | 8.56 | 1.93 | 46.29 | 279.05 | 0.7262 | 851.0 | 650.3 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 10.34 | 2.25 | 46.61 | 281.46 | 0.7318 | 669.0 | 545.5 | |
| 0.00 | 2.06 | 0.00 | 1.49 | 9.96 | 2.04 | 46.41 | 280.96 | 0.7289 | 793.0 | 651.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
