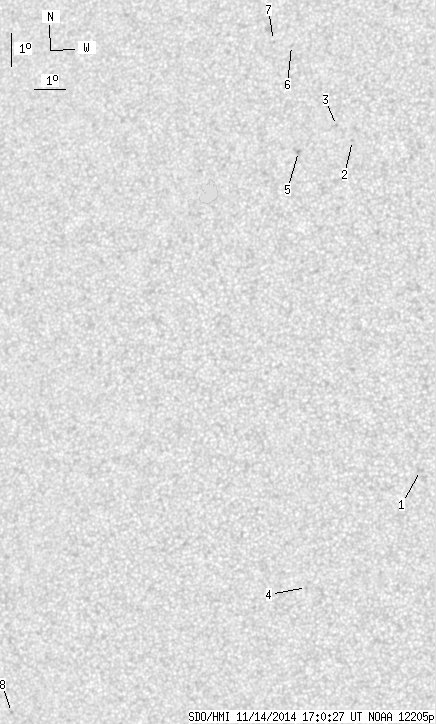

SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.68 | 0.00 | 5.64 | 12.98 | 298.88 | -16.20 | 58.73 | 0.3405 | -191.9 | -93.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.84 | 0.00 | 1.44 | 8.04 | 302.71 | -12.37 | 66.91 | 0.2317 | 847.0 | 629.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 17.96 | 300.02 | -15.06 | 43.41 | 0.3613 | -810.0 | -699.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 18.42 | 299.47 | -15.62 | 43.52 | 0.3727 | -750.0 | -678.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 4.53 | 299.30 | -15.79 | 83.68 | 0.2741 | 704.0 | 627.2 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 17.60 | 298.31 | -16.78 | 47.11 | 0.3772 | -966.0 | -834.9 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 20.88 | 297.73 | -17.36 | 41.91 | 0.4191 | -757.0 | -540.7 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 21.02 | 297.11 | -17.97 | 42.61 | 0.4273 | -603.0 | -588.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 0.66 | 289.99 | -25.09 | 94.65 | 0.4273 | 800.0 | 671.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
