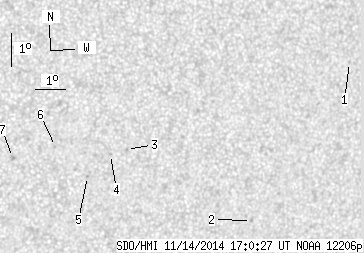

SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.57 | 0.00 | 4.13 | -8.97 | 337.12 | 22.03 | 240.88 | 0.4247 | -334.0 | -352.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.49 | -6.35 | 344.34 | 29.25 | 252.34 | 0.5117 | 667.0 | 496.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -11.06 | 341.38 | 26.30 | 241.47 | 0.4969 | 654.0 | 514.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -8.81 | 337.08 | 21.99 | 241.67 | 0.4222 | -636.0 | -513.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -8.95 | 336.57 | 21.49 | 240.82 | 0.4162 | -713.0 | -563.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -9.60 | 335.87 | 20.78 | 238.62 | 0.4116 | -721.0 | -601.6 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -8.67 | 334.79 | 19.71 | 239.30 | 0.3893 | -804.0 | -717.1 | |
| 0.00 | 2.24 | 0.00 | 1.19 | -8.98 | 333.44 | 18.36 | 236.80 | 0.3734 | -785.0 | -765.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
