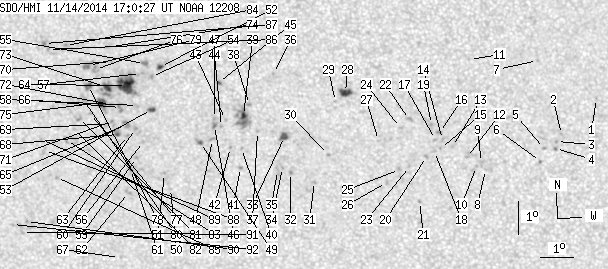

SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.35 | 242.47 | 21.39 | 125.59 | -11.77 | 307.34 | -7.75 | 153.31 | 0.2943 | -163.9 | -286.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | -11.22 | 319.35 | 4.27 | 196.65 | 0.2559 | 882.0 | 759.4 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -12.32 | 318.30 | 3.22 | 191.79 | 0.2696 | 807.0 | 671.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.53 | 318.15 | 3.07 | 191.10 | 0.2726 | 904.0 | 813.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -12.75 | 318.13 | 3.04 | 190.85 | 0.2761 | 936.0 | 798.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.75 | 317.79 | 2.71 | 189.68 | 0.2751 | 928.0 | 783.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.15 | 317.67 | 2.59 | 189.03 | 0.2814 | -692.0 | -566.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.05 | 317.56 | 2.47 | 190.72 | 0.2294 | 799.0 | 592.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.39 | 316.00 | 0.91 | 183.16 | 0.2825 | 932.0 | 698.0 | |
| 0.00 | 3.27 | 0.00 | 1.68 | -13.17 | 315.88 | 0.79 | 182.78 | 0.2787 | 921.0 | 661.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.30 | 315.73 | 0.64 | 182.23 | 0.2807 | 946.0 | 739.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -10.02 | 315.51 | 0.42 | 181.87 | 0.2250 | 769.0 | 527.0 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.02 | 315.42 | 0.33 | 181.19 | 0.2758 | 842.0 | 702.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.68 | 314.99 | -0.09 | 179.67 | 0.2701 | 908.0 | 746.7 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.46 | 314.69 | -0.39 | 178.55 | 0.2665 | 909.0 | 720.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.74 | 314.63 | -0.46 | 178.35 | 0.2712 | 986.0 | 809.7 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -12.25 | 314.60 | -0.48 | 178.19 | 0.2629 | 904.0 | 752.1 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.46 | 314.48 | -0.61 | 177.77 | 0.2666 | 830.0 | 713.2 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.83 | 314.45 | -0.64 | 177.71 | 0.2729 | 770.0 | 704.0 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -12.00 | 314.36 | -0.73 | 177.24 | 0.2589 | 902.0 | 797.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.99 | 314.20 | -0.88 | 176.86 | 0.2756 | 933.0 | 723.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.38 | 313.98 | -1.10 | 176.41 | 0.2992 | 757.0 | 573.6 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -11.85 | 313.69 | -1.39 | 174.67 | 0.2571 | 889.0 | 835.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.29 | 313.68 | -1.40 | 175.12 | 0.2814 | 904.0 | 747.1 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -12.09 | 313.42 | -1.67 | 173.73 | 0.2617 | 781.0 | 669.9 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -13.39 | 313.38 | -1.71 | 174.10 | 0.2835 | 820.0 | 661.6 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -13.79 | 312.98 | -2.11 | 172.91 | 0.2909 | 811.0 | 677.4 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -12.49 | 312.75 | -2.34 | 171.47 | 0.2699 | 627.0 | 540.4 | |
| 5.24 | 7.82 | 2.68 | 4.00 | -11.02 | 311.76 | -3.32 | 166.71 | 0.2486 | 1218.0 | 856.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.30 | 311.46 | -3.63 | 165.81 | 0.2543 | 803.0 | 554.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.93 | 311.22 | -3.87 | 166.46 | 0.2820 | 906.0 | 712.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -13.76 | 310.78 | -4.31 | 165.73 | 0.2973 | 845.0 | 650.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.49 | 310.05 | -5.04 | 163.16 | 0.2961 | 864.0 | 801.4 | |
| 2.75 | 5.50 | 1.42 | 2.84 | -12.38 | 309.89 | -5.20 | 161.44 | 0.2793 | 1123.7 | 868.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.33 | 309.81 | -5.28 | 162.25 | 0.2949 | 778.0 | 691.8 | |
| 0.00 | 3.27 | 0.00 | 1.69 | -13.43 | 309.65 | -5.43 | 161.86 | 0.2972 | 768.0 | 657.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.45 | 309.59 | -5.49 | 157.83 | 0.2505 | 820.0 | 615.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.23 | 309.07 | -6.02 | 158.57 | 0.2816 | 937.0 | 721.2 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -11.40 | 308.85 | -6.24 | 156.66 | 0.2702 | -779.0 | -632.9 | |
| 2.58 | 20.46 | 1.33 | 10.55 | -11.74 | 308.66 | -6.43 | 156.54 | 0.2767 | -835.0 | -333.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.75 | 308.57 | -6.52 | 157.68 | 0.2929 | 864.0 | 672.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.34 | 308.52 | -6.57 | 158.30 | 0.3022 | -963.0 | -788.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.72 | 308.23 | -6.85 | 156.62 | 0.2946 | 792.0 | 651.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.86 | 308.10 | -6.98 | 154.96 | 0.2824 | -795.0 | -640.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.08 | 307.98 | -7.11 | 154.89 | 0.2866 | -647.0 | -555.8 | |
| 0.52 | 1.29 | 0.27 | 0.66 | -10.73 | 307.92 | -7.17 | 152.51 | 0.2668 | 975.5 | 903.8 | |
| 0.00 | 3.01 | 0.00 | 1.56 | -12.05 | 307.76 | -7.32 | 154.19 | 0.2877 | -834.0 | -740.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.83 | 307.77 | -7.32 | 153.87 | 0.2844 | -959.0 | -736.3 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -12.48 | 307.69 | -7.40 | 154.62 | 0.2947 | 917.0 | 733.2 | |
| 0.60 | 3.52 | 0.31 | 1.83 | -12.57 | 307.32 | -7.77 | 153.67 | 0.2988 | 1033.4 | 797.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.00 | 306.34 | -8.74 | 153.07 | 0.3272 | -632.0 | -561.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.54 | 306.18 | -8.91 | 151.95 | 0.3217 | -969.0 | -756.7 | |
| 1.38 | 2.84 | 0.71 | 1.46 | -10.26 | 306.17 | -8.92 | 146.12 | 0.2750 | -1108.0 | -928.5 | |
| 1.89 | 3.61 | 0.98 | 1.87 | -11.57 | 305.85 | -9.24 | 147.78 | 0.2963 | -988.8 | -777.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.56 | 305.88 | -9.20 | 145.92 | 0.2819 | -1069.0 | -906.9 | |
| 0.00 | 2.67 | 0.00 | 1.37 | -10.17 | 305.68 | -9.41 | 144.52 | 0.2784 | -1101.0 | -994.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.55 | 305.57 | -9.52 | 148.75 | 0.3126 | -722.0 | -601.6 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -10.47 | 305.55 | -9.54 | 144.79 | 0.2838 | -800.0 | -804.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.45 | 305.42 | -9.66 | 146.38 | 0.2985 | -796.0 | -614.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.05 | 305.33 | -9.75 | 148.97 | 0.3216 | -968.0 | -814.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -12.16 | 305.34 | -9.75 | 147.45 | 0.3090 | -1010.0 | -898.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -13.42 | 305.13 | -9.96 | 149.06 | 0.3285 | -851.0 | -763.4 | |
| 0.00 | 2.58 | 0.00 | 1.36 | -14.13 | 305.04 | -10.05 | 149.94 | 0.3394 | -708.0 | -704.0 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -12.37 | 305.08 | -10.00 | 147.16 | 0.3144 | -921.0 | -672.1 | |
| 16.08 | 29.92 | 8.33 | 15.49 | -10.84 | 305.11 | -9.98 | 144.33 | 0.2931 | -1201.4 | -747.3 | |
| 0.00 | 3.70 | 0.00 | 1.92 | -12.04 | 305.06 | -10.02 | 146.51 | 0.3098 | -1006.0 | -974.4 | |
| 0.00 | 4.56 | 0.00 | 2.37 | -11.52 | 304.90 | -10.19 | 145.10 | 0.3043 | -873.0 | -760.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -16.17 | 304.65 | -10.43 | 151.93 | 0.3712 | -482.0 | -444.4 | |
| 0.77 | 4.99 | 0.40 | 2.60 | -12.35 | 304.77 | -10.31 | 146.32 | 0.3168 | -961.1 | -857.9 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -12.01 | 304.66 | -10.42 | 145.43 | 0.3132 | -629.0 | -681.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.11 | 304.70 | -10.38 | 141.70 | 0.2875 | -913.0 | -819.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.95 | 304.61 | -10.48 | 145.16 | 0.3129 | -965.0 | -821.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.43 | 304.60 | -10.49 | 144.14 | 0.3060 | -1095.0 | -862.8 | |
| 3.18 | 13.41 | 1.65 | 6.96 | -10.91 | 304.52 | -10.56 | 142.91 | 0.2998 | -1222.9 | -872.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -9.69 | 304.50 | -10.58 | 140.22 | 0.2842 | -903.0 | -682.5 | |
| 4.64 | 9.46 | 2.42 | 4.92 | -11.37 | 304.32 | -10.77 | 143.32 | 0.3079 | -1035.2 | -750.8 | |
| 0.00 | 4.04 | 0.00 | 2.09 | -10.36 | 304.17 | -10.91 | 140.86 | 0.2963 | -835.0 | -951.7 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.71 | 303.97 | -11.12 | 143.10 | 0.3159 | -923.0 | -741.3 | |
| 1.72 | 5.50 | 0.89 | 2.86 | -10.85 | 303.94 | -11.15 | 141.31 | 0.3051 | -1021.7 | -820.8 | |
| 0.00 | 5.50 | 0.00 | 2.85 | -10.24 | 303.96 | -11.12 | 140.06 | 0.2970 | -1049.0 | -840.1 | |
| 0.00 | 5.24 | 0.00 | 2.73 | -11.28 | 303.77 | -11.32 | 141.77 | 0.3124 | -813.0 | -667.3 | |
| 0.00 | 2.84 | 0.00 | 1.48 | -11.87 | 303.59 | -11.50 | 142.49 | 0.3218 | -963.0 | -806.7 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -12.20 | 303.42 | -11.67 | 142.74 | 0.3279 | -764.0 | -527.6 | |
| 0.00 | 2.67 | 0.00 | 1.40 | -12.54 | 303.19 | -11.90 | 142.84 | 0.3346 | -786.0 | -608.4 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -9.64 | 303.28 | -11.81 | 137.00 | 0.2971 | -971.0 | -804.3 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -13.69 | 302.82 | -12.27 | 144.04 | 0.3532 | -944.0 | -781.3 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -9.77 | 302.75 | -12.33 | 136.05 | 0.3047 | -879.0 | -684.4 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -9.59 | 302.64 | -12.45 | 135.36 | 0.3039 | -827.0 | -738.1 | |
| 0.00 | 2.67 | 0.00 | 1.41 | -12.86 | 302.49 | -12.60 | 141.84 | 0.3457 | -704.0 | -565.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -12.52 | 302.41 | -12.68 | 141.05 | 0.3422 | -807.0 | -675.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -15.07 | 301.79 | -13.29 | 144.16 | 0.3809 | -886.0 | -731.1 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -15.41 | 301.64 | -13.44 | 144.41 | 0.3867 | -599.0 | -517.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -15.17 | 301.34 | -13.74 | 143.42 | 0.3864 | -767.0 | -569.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
