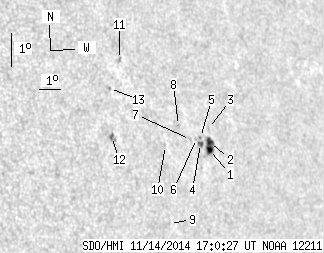

SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.32 | 28.38 | 8.09 | 21.89 | 8.44 | 5.09 | 50.00 | 278.60 | 0.7684 | -358.8 | -91.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.56 | 11.18 | 3.60 | 8.85 | 8.04 | 6.32 | 51.23 | 277.97 | 0.7819 | -693.4 | -374.0 | |
| 3.44 | -1.00 | 2.72 | -1.00 | 8.24 | 6.36 | 51.27 | 278.23 | 0.7824 | -599.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 8.66 | 6.39 | 51.30 | 278.76 | 0.7829 | -344.0 | -234.4 | |
| 1.55 | 2.92 | 1.21 | 2.29 | 8.23 | 5.92 | 50.84 | 278.24 | 0.7777 | -748.8 | -611.3 | |
| 0.00 | 0.86 | 0.00 | 0.67 | 8.41 | 5.95 | 50.87 | 278.47 | 0.7781 | -678.0 | -618.9 | |
| 0.00 | 1.55 | 0.00 | 1.21 | 8.39 | 5.76 | 50.67 | 278.46 | 0.7760 | -687.0 | -425.6 | |
| 0.00 | 1.55 | 0.00 | 1.20 | 8.37 | 5.47 | 50.39 | 278.45 | 0.7728 | -637.0 | -586.4 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 8.81 | 4.99 | 49.90 | 279.06 | 0.7678 | -163.0 | -147.8 | |
| 0.00 | 0.95 | 0.00 | 0.71 | 5.91 | 4.13 | 49.04 | 275.30 | 0.7567 | -580.0 | -422.8 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 8.24 | 4.28 | 49.20 | 278.37 | 0.7595 | 342.0 | 335.2 | |
| 0.00 | 1.63 | 0.00 | 1.21 | 10.87 | 2.70 | 47.61 | 282.04 | 0.7440 | 546.0 | 490.2 | |
| 0.77 | 3.87 | 0.56 | 2.81 | 8.59 | 1.91 | 46.82 | 279.05 | 0.7325 | 797.8 | 581.2 | |
| 0.00 | 1.29 | 0.00 | 0.94 | 10.03 | 2.08 | 46.99 | 280.98 | 0.7358 | 656.0 | 589.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
