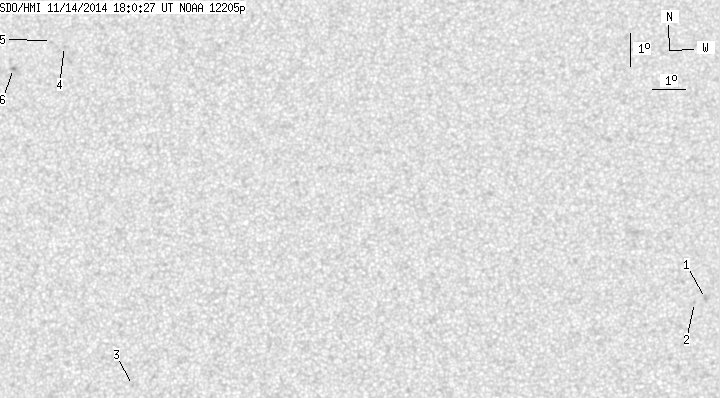

SDO HMI 2014-11-14 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.97 | 0.00 | 3.61 | 13.88 | 307.69 | -6.84 | 158.59 | 0.2693 | -487.0 | -535.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.32 | 0.00 | 1.17 | 10.73 | 319.91 | 5.37 | 325.96 | 0.1651 | -866.0 | -683.6 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 10.61 | 319.57 | 5.04 | 327.24 | 0.1602 | -784.0 | -640.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 8.10 | 302.61 | -11.92 | 65.89 | 0.2251 | 873.0 | 659.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.31 | 299.92 | -14.61 | 41.89 | 0.3602 | -764.0 | -613.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 18.49 | 299.49 | -15.05 | 42.35 | 0.3671 | -370.0 | -473.4 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 17.61 | 298.33 | -16.20 | 46.13 | 0.3705 | -1011.0 | -841.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
