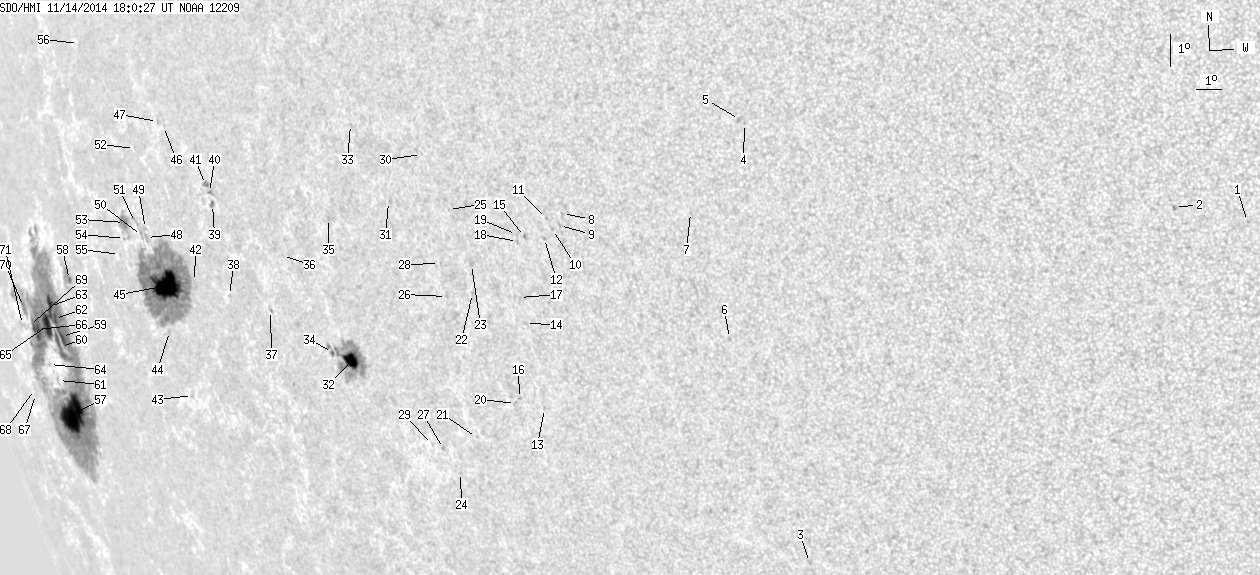

SDO HMI 2014-11-14 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.27 | 1174.45 | 285.08 | 1756.44 | -14.50 | 245.60 | -68.93 | 106.63 | 0.9375 | 74.6 | -44.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | -9.02 | 296.72 | -17.82 | 124.06 | 0.3664 | 807.0 | 666.2 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -8.63 | 294.42 | -20.11 | 120.10 | 0.3946 | 945.0 | 683.4 | |
| 0.00 | 1.98 | 0.00 | 1.29 | -19.98 | 280.24 | -34.29 | 125.72 | 0.6545 | 639.0 | 450.0 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -6.42 | 280.04 | -34.49 | 105.25 | 0.5855 | 665.0 | 555.4 | |
| 0.00 | 3.27 | 0.00 | 2.00 | -6.31 | 279.87 | -34.66 | 104.98 | 0.5874 | 128.0 | 217.8 | |
| 0.00 | 1.89 | 0.00 | 1.21 | -12.99 | 278.68 | -35.85 | 114.88 | 0.6314 | 411.0 | 415.4 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -9.17 | 277.77 | -36.76 | 108.65 | 0.6258 | 598.0 | 463.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -9.37 | 272.77 | -41.77 | 106.92 | 0.6893 | 256.0 | 239.7 | |
| 0.00 | 2.06 | 0.00 | 1.41 | -9.74 | 272.59 | -41.95 | 107.38 | 0.6927 | 797.0 | 401.6 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -9.87 | 272.28 | -42.25 | 107.45 | 0.6968 | 516.0 | 347.2 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -9.54 | 272.09 | -42.45 | 106.92 | 0.6980 | -571.0 | -440.6 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -10.15 | 271.91 | -42.63 | 107.71 | 0.7021 | 468.0 | 460.5 | |
| 0.00 | 1.38 | 0.00 | 1.00 | -15.42 | 270.77 | -43.77 | 114.29 | 0.7340 | 562.0 | 505.0 | |
| 0.00 | 2.15 | 0.00 | 1.54 | -12.80 | 270.60 | -43.93 | 110.79 | 0.7261 | 377.0 | 364.0 | |
| 0.00 | 1.63 | 0.00 | 1.15 | -10.12 | 271.08 | -43.45 | 107.38 | 0.7117 | 765.0 | 588.7 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -15.15 | 269.76 | -44.77 | 113.51 | 0.7437 | 695.0 | 527.9 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -12.00 | 270.52 | -44.02 | 109.71 | 0.7243 | 570.0 | 527.7 | |
| 0.00 | 1.38 | 0.00 | 0.97 | -10.29 | 270.76 | -43.77 | 107.49 | 0.7160 | 537.0 | 477.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -10.07 | 270.76 | -43.77 | 107.20 | 0.7154 | 634.0 | 594.0 | |
| 0.00 | 1.55 | 0.00 | 1.15 | -15.31 | 269.54 | -44.99 | 113.63 | 0.7467 | 593.0 | 504.3 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -16.45 | 267.46 | -47.07 | 114.23 | 0.7724 | 529.0 | 452.2 | |
| 0.00 | 1.38 | 0.00 | 1.02 | -11.95 | 268.50 | -46.03 | 108.92 | 0.7467 | 402.0 | 308.4 | |
| 0.00 | 2.24 | 0.00 | 1.65 | -11.06 | 268.65 | -45.88 | 107.81 | 0.7424 | 112.0 | 182.3 | |
| 0.00 | 1.12 | 0.00 | 0.89 | -17.59 | 266.33 | -48.20 | 115.19 | 0.7875 | 516.0 | 371.2 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -9.42 | 267.96 | -46.57 | 105.44 | 0.7456 | 538.0 | 427.9 | |
| 0.00 | 1.72 | 0.00 | 1.30 | -12.09 | 267.32 | -47.21 | 108.70 | 0.7600 | 522.0 | 395.6 | |
| 0.00 | 1.81 | 0.00 | 1.45 | -16.86 | 265.79 | -48.74 | 114.10 | 0.7903 | 588.0 | 515.0 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -11.08 | 267.23 | -47.30 | 107.39 | 0.7581 | 581.0 | 563.7 | |
| 0.00 | 0.95 | 0.00 | 0.77 | -16.75 | 265.31 | -49.22 | 113.79 | 0.7947 | 647.0 | 502.3 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -7.79 | 267.04 | -47.50 | 103.05 | 0.7522 | 545.0 | 421.7 | |
| 0.00 | 0.95 | 0.00 | 0.74 | -9.27 | 265.28 | -49.25 | 104.52 | 0.7747 | 281.0 | 265.9 | |
| 14.27 | 87.35 | 12.21 | 74.85 | -14.26 | 262.20 | -52.33 | 109.80 | 0.8176 | 876.2 | 287.7 | |
| 0.00 | 1.38 | 0.00 | 1.09 | -7.00 | 263.90 | -50.64 | 101.33 | 0.7849 | 569.0 | 421.2 | |
| 0.86 | -32.00 | 0.75 | -32.00 | -14.05 | 261.31 | -53.23 | 109.29 | 0.8255 | 333.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.29 | -9.91 | 262.28 | -52.25 | 104.57 | 0.8071 | 579.0 | 440.8 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -11.14 | 259.61 | -54.92 | 105.43 | 0.8352 | 336.0 | 326.8 | |
| 0.00 | 1.12 | 0.00 | 1.04 | -12.88 | 258.42 | -56.12 | 107.18 | 0.8492 | 305.0 | 233.9 | |
| 0.00 | 1.29 | 0.00 | 1.27 | -12.51 | 256.23 | -58.30 | 106.27 | 0.8673 | -446.0 | -384.9 | |
| 1.12 | 2.84 | 1.09 | 2.77 | -9.74 | 256.14 | -58.39 | 103.09 | 0.8638 | -295.8 | -185.2 | |
| 0.52 | 2.58 | 0.50 | 2.51 | -9.38 | 256.07 | -58.47 | 102.67 | 0.8640 | -546.2 | -377.5 | |
| 0.00 | 3.27 | 0.00 | 3.20 | -9.15 | 255.90 | -58.63 | 102.37 | 0.8651 | -592.0 | -418.6 | |
| 0.00 | 1.03 | 0.00 | 1.08 | -12.17 | 254.26 | -60.27 | 105.49 | 0.8828 | 185.0 | 185.3 | |
| 0.00 | 1.29 | 0.00 | 1.46 | -15.77 | 252.48 | -62.06 | 109.10 | 0.9015 | 117.0 | 160.7 | |
| 0.00 | 1.89 | 0.00 | 2.16 | -13.81 | 251.95 | -62.59 | 106.85 | 0.9026 | -176.0 | -152.3 | |
| 44.79 | 300.47 | 49.81 | 335.72 | -12.38 | 252.46 | -62.07 | 105.37 | 0.8969 | 728.4 | 123.4 | |
| 0.00 | 0.43 | 0.00 | 0.45 | -7.49 | 253.81 | -60.73 | 100.15 | 0.8806 | -468.0 | -456.0 | |
| 0.00 | 1.12 | 0.00 | 1.17 | -7.35 | 253.47 | -61.07 | 99.95 | 0.8832 | -382.0 | -349.1 | |
| 0.00 | 2.84 | 0.00 | 3.21 | -10.95 | 251.65 | -62.89 | 103.66 | 0.9012 | 404.0 | 344.9 | |
| 0.00 | 1.29 | 0.00 | 1.46 | -10.67 | 251.69 | -62.85 | 103.36 | 0.9006 | 103.0 | -1.9 | |
| 0.00 | 2.75 | 0.00 | 3.15 | -10.90 | 251.33 | -63.20 | 103.56 | 0.9035 | 456.0 | 330.0 | |
| 0.00 | 3.52 | 0.00 | 4.06 | -10.52 | 251.07 | -63.46 | 103.09 | 0.9049 | -237.0 | -152.2 | |
| 0.00 | 0.69 | 0.00 | 0.77 | -8.24 | 251.76 | -62.78 | 100.70 | 0.8975 | 316.0 | 226.8 | |
| 5.33 | 18.23 | 6.33 | 21.67 | -10.55 | 250.29 | -64.24 | 103.01 | 0.9105 | 371.0 | 317.4 | |
| 0.00 | 0.86 | 0.00 | 1.03 | -11.05 | 250.09 | -64.44 | 103.52 | 0.9124 | 469.0 | 416.8 | |
| 0.00 | 0.69 | 0.00 | 0.85 | -11.56 | 249.51 | -65.02 | 103.99 | 0.9169 | 200.0 | 110.8 | |
| 0.00 | 1.29 | 0.00 | 1.59 | -5.23 | 248.61 | -65.92 | 97.01 | 0.9178 | -156.0 | -122.5 | |
| 52.27 | 666.79 | 95.45 | 1213.66 | -16.87 | 241.95 | -72.59 | 108.44 | 0.9637 | -470.2 | -130.4 | |
| 1.89 | 15.65 | 2.83 | 23.76 | -12.54 | 245.03 | -69.50 | 104.37 | 0.9453 | 192.4 | -246.8 | |
| 6.10 | -57.00 | 10.29 | -57.00 | -14.39 | 243.01 | -71.52 | 106.02 | 0.9571 | -790.8 | 999999 | |
| 12.47 | -57.00 | 21.51 | -57.00 | -14.72 | 242.65 | -71.88 | 106.31 | 0.9591 | -461.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 3.37 | -15.83 | 241.46 | -73.07 | 107.30 | 0.9652 | -245.0 | -150.3 | |
| 4.21 | -57.00 | 7.17 | -57.00 | -13.85 | 242.74 | -71.79 | 105.43 | 0.9581 | -703.1 | 999999 | |
| 9.46 | -57.00 | 16.28 | -57.00 | -13.49 | 242.51 | -72.02 | 105.03 | 0.9589 | -464.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.65 | -15.36 | 240.92 | -73.61 | 106.75 | 0.9672 | 273.0 | 247.5 | |
| 13.07 | -57.00 | 23.51 | -57.00 | -14.11 | 241.82 | -72.71 | 105.58 | 0.9626 | 166.1 | 999999 | |
| 14.53 | -57.00 | 28.31 | -57.00 | -14.30 | 240.57 | -73.96 | 105.61 | 0.9681 | 901.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 2.23 | -16.44 | 238.04 | -76.49 | 107.50 | 0.9788 | 344.0 | 302.0 | |
| 0.00 | 1.03 | 0.00 | 2.43 | -16.28 | 238.11 | -76.43 | 107.35 | 0.9785 | 368.0 | 372.1 | |
| 0.00 | 2.06 | 0.00 | 4.24 | -14.22 | 239.72 | -74.81 | 105.43 | 0.9716 | 99.0 | 171.4 | |
| 4.38 | -57.00 | 9.04 | -57.00 | -13.64 | 239.55 | -74.99 | 104.82 | 0.9720 | 471.2 | 999999 | |
| 0.00 | 3.70 | 0.00 | 8.07 | -14.23 | 238.85 | -75.68 | 105.34 | 0.9749 | -297.0 | -233.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
