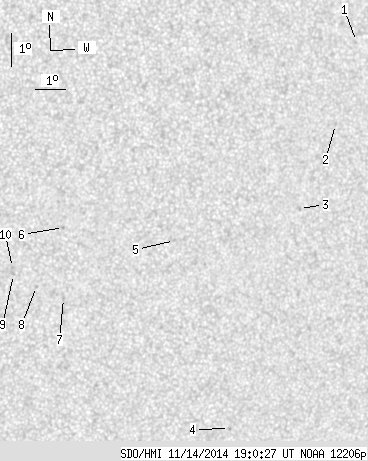

SDO HMI 2014-11-14 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.26 | 0.00 | 6.33 | -10.04 | 338.79 | 24.81 | 241.50 | 0.4722 | -214.7 | -128.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.30 | -3.95 | 345.00 | 31.02 | 257.69 | 0.5283 | 484.0 | 465.8 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -6.42 | 344.40 | 30.42 | 252.86 | 0.5287 | 559.0 | 515.1 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -8.92 | 343.35 | 29.37 | 247.71 | 0.5258 | 658.0 | 518.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -15.64 | 341.72 | 27.74 | 235.12 | 0.5485 | 674.0 | 580.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -9.79 | 339.19 | 25.21 | 242.87 | 0.4736 | -741.0 | -501.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -9.31 | 335.52 | 21.54 | 240.11 | 0.4196 | -785.0 | -592.2 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -11.48 | 335.67 | 21.69 | 235.93 | 0.4392 | -713.0 | -535.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -11.09 | 334.77 | 20.79 | 235.57 | 0.4240 | -718.0 | -580.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -10.71 | 334.00 | 20.02 | 235.34 | 0.4107 | -760.0 | -658.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -10.50 | 333.95 | 19.97 | 235.72 | 0.4082 | -805.0 | -673.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
