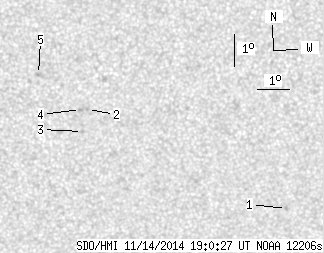

SDO HMI 2014-11-14 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.39 | 0.00 | 3.94 | -15.86 | 324.10 | 10.12 | 207.31 | 0.3649 | -515.4 | -465.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.62 | -18.67 | 330.05 | 16.07 | 215.62 | 0.4521 | 861.0 | 696.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.46 | 323.49 | 9.51 | 206.85 | 0.3541 | -919.0 | -711.2 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -16.15 | 323.37 | 9.39 | 205.67 | 0.3632 | -733.0 | -589.2 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -15.46 | 323.27 | 9.29 | 206.32 | 0.3525 | -994.0 | -761.0 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -14.36 | 321.93 | 7.95 | 204.31 | 0.3267 | -792.0 | -654.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
