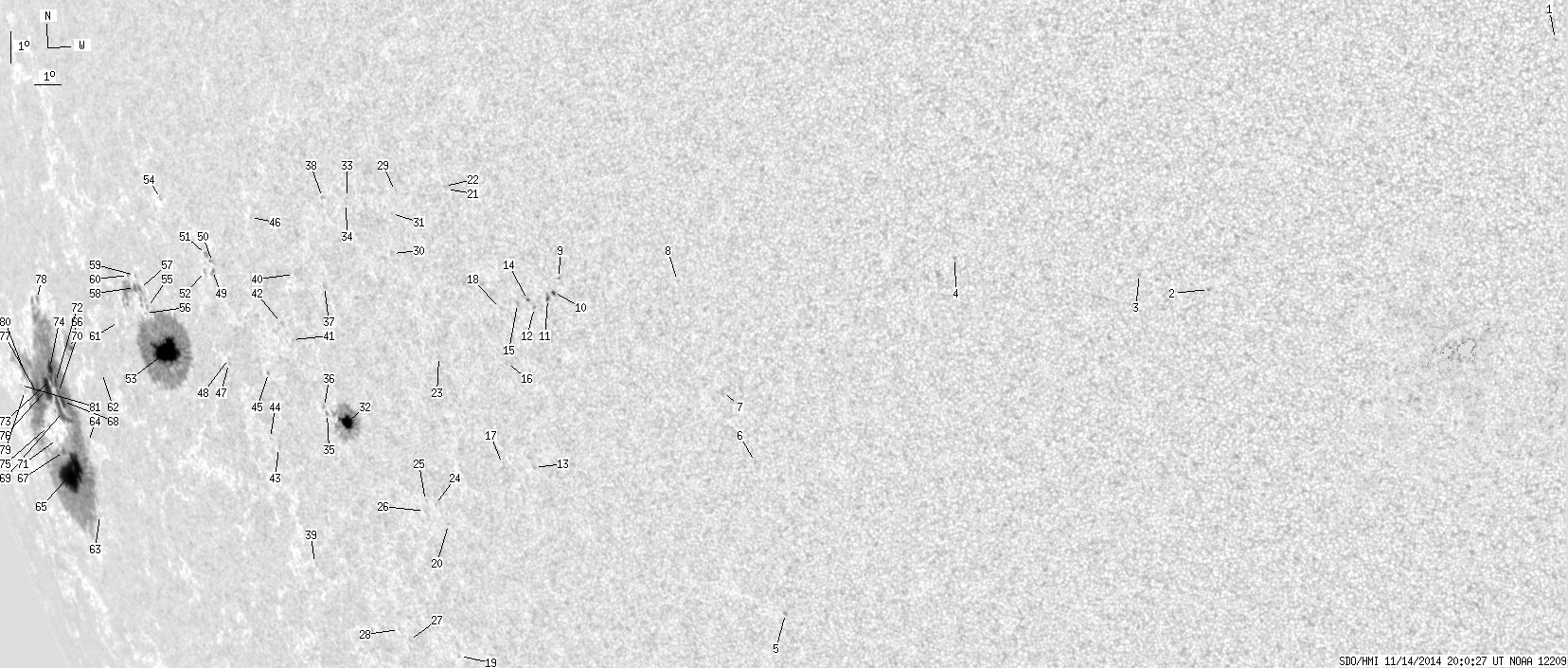

SDO HMI 2014-11-14 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.69 | 1245.74 | 284.33 | 1767.03 | -14.54 | 245.64 | -67.78 | 106.85 | 0.9312 | 34.6 | -51.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.39 | -1.03 | 308.06 | -5.37 | 126.22 | 0.1164 | -858.0 | -672.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -9.04 | 296.77 | -16.66 | 125.89 | 0.3510 | 856.0 | 731.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -8.59 | 294.49 | -18.93 | 121.49 | 0.3779 | 928.0 | 742.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -8.19 | 288.20 | -25.22 | 113.98 | 0.4636 | 731.0 | 482.9 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -20.02 | 280.19 | -33.24 | 126.56 | 0.6434 | 752.0 | 625.5 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -14.97 | 280.06 | -33.37 | 119.36 | 0.6120 | 634.0 | 498.7 | |
| 0.00 | 2.49 | 0.00 | 1.56 | -12.71 | 279.18 | -34.24 | 115.39 | 0.6099 | 601.0 | 527.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -9.17 | 277.90 | -35.53 | 109.22 | 0.6098 | 635.0 | 511.5 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -9.23 | 273.11 | -40.31 | 107.26 | 0.6710 | 685.0 | 509.9 | |
| 0.86 | 2.06 | 0.58 | 1.38 | -9.70 | 272.81 | -40.62 | 107.81 | 0.6764 | 517.5 | 452.0 | |
| 0.95 | 3.01 | 0.64 | 2.03 | -9.92 | 272.54 | -40.89 | 108.02 | 0.6805 | 720.3 | 425.3 | |
| 0.00 | 1.20 | 0.00 | 0.82 | -10.21 | 271.93 | -41.50 | 108.20 | 0.6888 | 528.0 | 343.4 | |
| 0.00 | 1.38 | 0.00 | 0.98 | -15.45 | 270.83 | -42.59 | 114.84 | 0.7212 | 660.0 | 544.9 | |
| 0.52 | 1.55 | 0.35 | 1.06 | -9.98 | 271.68 | -41.74 | 107.78 | 0.6910 | -449.8 | -338.4 | |
| 0.00 | 1.46 | 0.00 | 1.01 | -10.12 | 271.21 | -42.21 | 107.80 | 0.6971 | 793.0 | 524.0 | |
| 0.00 | 2.15 | 0.00 | 1.51 | -12.07 | 270.40 | -43.03 | 110.16 | 0.7132 | 472.0 | 409.4 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -15.37 | 269.41 | -44.02 | 114.12 | 0.7364 | 360.0 | 318.2 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -10.29 | 270.44 | -42.98 | 107.77 | 0.7068 | 636.0 | 502.2 | |
| 0.00 | 1.12 | 0.00 | 0.93 | -22.00 | 265.00 | -48.43 | 120.29 | 0.8056 | 329.0 | 292.3 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -17.50 | 266.23 | -47.19 | 115.46 | 0.7773 | 562.0 | 492.5 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -6.55 | 268.61 | -44.82 | 102.06 | 0.7185 | 488.0 | 462.4 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -6.46 | 268.53 | -44.90 | 101.93 | 0.7192 | 628.0 | 559.2 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -11.96 | 267.35 | -46.08 | 108.91 | 0.7472 | 465.0 | 406.5 | |
| 0.00 | 0.69 | 0.00 | 0.54 | -16.85 | 265.81 | -47.62 | 114.51 | 0.7792 | 677.0 | 617.0 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -16.74 | 265.38 | -48.05 | 114.21 | 0.7831 | 552.0 | 433.8 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -17.10 | 265.21 | -48.21 | 114.57 | 0.7860 | 360.0 | 389.0 | |
| 0.00 | 0.86 | 0.00 | 0.75 | -21.54 | 262.59 | -50.84 | 118.80 | 0.8252 | 319.0 | 314.4 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -21.20 | 262.19 | -51.24 | 118.26 | 0.8275 | 461.0 | 415.0 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -6.70 | 266.26 | -47.17 | 101.69 | 0.7461 | 414.0 | 296.8 | |
| 0.00 | 2.49 | 0.00 | 1.88 | -8.70 | 265.82 | -47.60 | 104.21 | 0.7554 | 63.0 | 161.0 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -7.43 | 265.98 | -47.45 | 102.59 | 0.7508 | 606.0 | 504.7 | |
| 13.67 | 75.83 | 11.40 | 63.25 | -14.28 | 262.23 | -51.20 | 110.15 | 0.8067 | 907.3 | 321.9 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -7.00 | 263.91 | -49.52 | 101.55 | 0.7728 | 536.0 | 454.6 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -7.18 | 263.84 | -49.59 | 101.77 | 0.7740 | 276.0 | 294.9 | |
| 0.00 | 2.15 | 0.00 | 1.83 | -14.04 | 261.27 | -52.16 | 109.58 | 0.8154 | 316.0 | 263.6 | |
| 0.00 | 2.06 | 0.00 | 1.76 | -13.83 | 261.18 | -52.24 | 109.30 | 0.8156 | 419.0 | 273.0 | |
| 0.00 | 2.41 | 0.00 | 1.96 | -9.90 | 262.25 | -51.18 | 104.82 | 0.7962 | 638.0 | 454.9 | |
| 0.00 | 1.29 | 0.00 | 1.03 | -7.04 | 262.69 | -50.74 | 101.35 | 0.7861 | 413.0 | 341.2 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -19.11 | 258.52 | -54.91 | 114.63 | 0.8527 | 260.0 | 218.4 | |
| 0.00 | 0.69 | 0.00 | 0.58 | -9.57 | 260.75 | -52.68 | 104.05 | 0.8106 | 366.0 | 245.1 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -11.69 | 260.11 | -53.32 | 106.46 | 0.8211 | 354.0 | 343.2 | |
| 0.00 | 0.95 | 0.00 | 0.82 | -11.16 | 259.64 | -53.78 | 105.72 | 0.8245 | 421.0 | 346.1 | |
| 0.00 | 2.24 | 0.00 | 2.07 | -15.29 | 258.16 | -55.27 | 110.17 | 0.8467 | 561.0 | 421.8 | |
| 0.00 | 0.77 | 0.00 | 0.72 | -14.99 | 257.78 | -55.64 | 109.73 | 0.8493 | 433.0 | 373.4 | |
| 0.00 | 1.46 | 0.00 | 1.32 | -12.83 | 258.46 | -54.97 | 107.40 | 0.8388 | 354.0 | 255.2 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -7.83 | 258.77 | -54.65 | 101.55 | 0.8270 | 327.0 | 331.3 | |
| 0.00 | 1.29 | 0.00 | 1.24 | -12.62 | 256.23 | -57.20 | 106.63 | 0.8582 | -391.0 | -356.3 | |
| 0.00 | 0.60 | 0.00 | 0.58 | -12.47 | 256.28 | -57.15 | 106.47 | 0.8574 | -304.0 | -243.3 | |
| 0.52 | 3.09 | 0.49 | 2.92 | -9.64 | 256.20 | -57.23 | 103.19 | 0.8535 | -397.5 | -290.4 | |
| 0.00 | 2.41 | 0.00 | 2.27 | -9.36 | 256.27 | -57.16 | 102.88 | 0.8525 | -457.0 | -404.8 | |
| 0.00 | 3.27 | 0.00 | 3.10 | -9.13 | 255.94 | -57.49 | 102.55 | 0.8551 | -507.0 | -371.5 | |
| 0.00 | 2.24 | 0.00 | 2.14 | -9.69 | 255.73 | -57.69 | 103.16 | 0.8577 | -192.0 | -88.3 | |
| 43.59 | 316.63 | 46.71 | 341.20 | -12.39 | 252.44 | -60.99 | 105.59 | 0.8887 | 817.8 | 138.9 | |
| 0.00 | 1.55 | 0.00 | 1.56 | -7.45 | 253.56 | -59.87 | 100.23 | 0.8735 | -461.0 | -318.7 | |
| 0.00 | 1.12 | 0.00 | 1.22 | -11.02 | 251.62 | -61.80 | 103.92 | 0.8932 | 429.0 | 422.0 | |
| 0.00 | 0.95 | 0.00 | 1.04 | -11.21 | 251.42 | -62.00 | 104.10 | 0.8949 | 218.0 | 211.6 | |
| 1.20 | 36.97 | 1.32 | 41.50 | -10.43 | 251.32 | -62.11 | 103.21 | 0.8947 | -65.4 | 240.5 | |
| 1.98 | -57.00 | 2.20 | -57.00 | -10.41 | 251.00 | -62.43 | 103.14 | 0.8972 | -337.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.86 | -10.01 | 251.14 | -62.29 | 102.72 | 0.8956 | -223.0 | -233.0 | |
| 0.00 | 1.46 | 0.00 | 1.64 | -10.03 | 250.67 | -62.76 | 102.67 | 0.8992 | -191.0 | -183.2 | |
| 0.00 | 1.46 | 0.00 | 1.73 | -11.58 | 249.39 | -64.04 | 104.16 | 0.9102 | -24.0 | -92.9 | |
| 0.00 | 1.29 | 0.00 | 1.68 | -13.34 | 247.22 | -66.20 | 105.70 | 0.9265 | -84.0 | -88.3 | |
| 0.00 | 1.72 | 0.00 | 2.73 | -18.18 | 243.61 | -69.82 | 110.21 | 0.9516 | -249.0 | -257.8 | |
| 0.00 | 2.15 | 0.00 | 3.19 | -15.72 | 244.56 | -68.86 | 107.80 | 0.9444 | -378.0 | -332.0 | |
| 58.46 | 708.41 | 100.40 | 1211.87 | -16.88 | 241.94 | -71.48 | 108.60 | 0.9587 | -530.7 | -149.1 | |
| 1.98 | 18.57 | 2.82 | 26.75 | -12.65 | 244.97 | -68.45 | 104.63 | 0.9395 | 219.5 | -205.4 | |
| 2.58 | -65.00 | 4.44 | -65.00 | -16.17 | 241.79 | -71.63 | 107.85 | 0.9589 | -241.5 | 999999 | |
| 4.04 | -65.00 | 6.41 | -65.00 | -14.46 | 243.08 | -70.34 | 106.26 | 0.9513 | -877.3 | 999999 | |
| 16.25 | -65.00 | 26.27 | -65.00 | -14.81 | 242.82 | -70.61 | 106.59 | 0.9529 | -577.2 | 999999 | |
| 0.26 | -65.00 | 0.41 | -65.00 | -14.20 | 242.81 | -70.61 | 105.94 | 0.9525 | -741.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 1.36 | -15.78 | 241.44 | -71.99 | 107.40 | 0.9603 | -267.0 | -190.1 | |
| 3.87 | -65.00 | 6.19 | -65.00 | -13.86 | 242.78 | -70.65 | 105.59 | 0.9524 | -820.7 | 999999 | |
| 0.26 | -65.00 | 0.42 | -65.00 | -13.79 | 242.36 | -71.07 | 105.46 | 0.9545 | -343.7 | 999999 | |
| 4.90 | -65.00 | 7.91 | -65.00 | -13.41 | 242.53 | -70.90 | 105.09 | 0.9533 | -682.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 2.62 | -15.38 | 240.87 | -72.55 | 106.90 | 0.9626 | 265.0 | 224.2 | |
| 15.22 | -65.00 | 25.78 | -65.00 | -14.13 | 241.71 | -71.72 | 105.72 | 0.9579 | 145.6 | 999999 | |
| 15.13 | -65.00 | 27.58 | -65.00 | -14.34 | 240.51 | -72.91 | 105.79 | 0.9636 | 936.3 | 999999 | |
| 1.12 | 3.52 | 1.76 | 5.55 | -11.17 | 242.75 | -70.68 | 102.77 | 0.9507 | 222.3 | 150.2 | |
| 0.00 | 1.20 | 0.00 | 2.40 | -14.32 | 239.10 | -74.33 | 105.59 | 0.9697 | -181.0 | -134.0 | |
| 5.33 | -65.00 | 10.25 | -65.00 | -13.65 | 239.58 | -73.84 | 104.96 | 0.9673 | 462.6 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.53 | -14.16 | 238.67 | -74.76 | 105.37 | 0.9713 | -403.0 | -361.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
