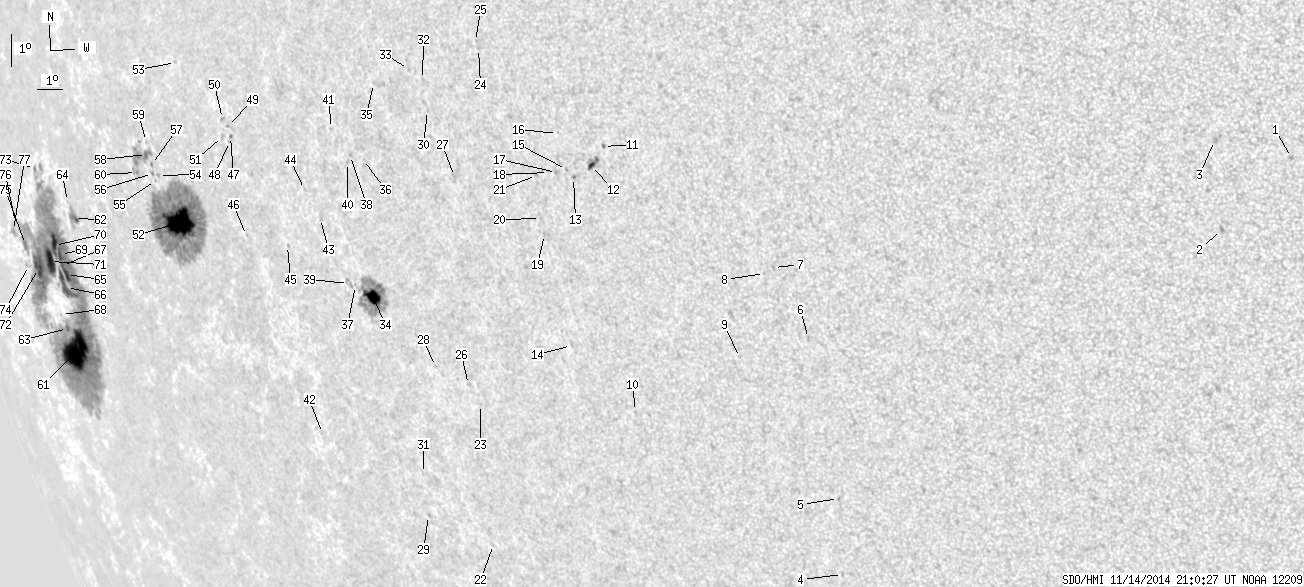

SDO HMI 2014-11-14 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 194.30 | 1253.26 | 275.51 | 1741.91 | -14.54 | 245.69 | -67.18 | 106.97 | 0.9274 | -26.9 | -35.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.91 | -9.06 | 296.85 | -16.03 | 126.99 | 0.3429 | 904.0 | 702.6 | |
| 0.00 | 2.75 | 0.00 | 1.48 | -11.29 | 294.51 | -18.36 | 128.14 | 0.3946 | 795.0 | 594.5 | |
| 0.00 | 3.52 | 0.00 | 1.88 | -8.58 | 294.45 | -18.43 | 122.17 | 0.3708 | 775.0 | 721.4 | |
| 0.00 | 1.38 | 0.00 | 0.90 | -22.49 | 279.69 | -33.19 | 129.79 | 0.6605 | 597.0 | 529.9 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -20.01 | 280.17 | -32.71 | 126.95 | 0.6376 | 771.0 | 630.2 | |
| 0.00 | 1.38 | 0.00 | 0.85 | -14.96 | 280.09 | -32.78 | 119.75 | 0.6047 | 702.0 | 556.5 | |
| 0.00 | 1.89 | 0.00 | 1.17 | -12.79 | 279.17 | -33.70 | 115.85 | 0.6036 | 745.0 | 560.3 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -12.98 | 278.81 | -34.06 | 115.92 | 0.6091 | 536.0 | 557.2 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -15.63 | 277.40 | -35.47 | 118.92 | 0.6408 | 552.0 | 405.5 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -17.47 | 272.89 | -39.98 | 118.79 | 0.7017 | 377.0 | 370.3 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -9.27 | 273.27 | -39.61 | 107.59 | 0.6624 | 688.0 | 521.1 | |
| 2.24 | 8.68 | 1.49 | 5.78 | -9.87 | 272.71 | -40.17 | 108.23 | 0.6714 | 618.6 | 251.0 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -10.26 | 271.93 | -40.94 | 108.48 | 0.6822 | 524.0 | 281.1 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -15.47 | 270.78 | -42.09 | 115.09 | 0.7158 | 704.0 | 548.8 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -10.02 | 271.69 | -41.19 | 108.05 | 0.6844 | -372.0 | -452.9 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -8.94 | 271.49 | -41.39 | 106.44 | 0.6833 | -523.0 | -339.6 | |
| 0.00 | 1.89 | 0.00 | 1.29 | -10.13 | 271.27 | -41.61 | 108.04 | 0.6898 | 348.0 | 403.7 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -10.14 | 270.94 | -41.93 | 107.93 | 0.6938 | 374.0 | 318.6 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -12.05 | 270.43 | -42.44 | 110.37 | 0.7063 | 436.0 | 502.1 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -11.56 | 270.36 | -42.51 | 109.68 | 0.7054 | 725.0 | 597.7 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -10.25 | 270.44 | -42.44 | 107.90 | 0.7002 | 607.0 | 488.1 | |
| 0.00 | 0.86 | 0.00 | 0.71 | -22.01 | 265.07 | -47.81 | 120.57 | 0.8001 | 202.0 | 222.4 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -17.48 | 266.24 | -46.64 | 115.66 | 0.7716 | 566.0 | 520.3 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -6.48 | 268.57 | -44.31 | 102.09 | 0.7121 | 656.0 | 489.4 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -6.27 | 268.47 | -44.41 | 101.78 | 0.7129 | 601.0 | 538.8 | |
| 0.00 | 1.63 | 0.00 | 1.27 | -16.86 | 265.90 | -46.98 | 114.77 | 0.7728 | 375.0 | 345.0 | |
| 0.00 | 1.98 | 0.00 | 1.45 | -10.40 | 266.95 | -45.93 | 106.92 | 0.7410 | 367.0 | 364.2 | |
| 0.00 | 0.95 | 0.00 | 0.75 | -16.35 | 264.54 | -48.33 | 113.62 | 0.7846 | 399.0 | 402.1 | |
| 0.00 | 1.12 | 0.00 | 0.97 | -21.18 | 262.26 | -50.61 | 118.47 | 0.8220 | 497.0 | 338.5 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -8.43 | 266.11 | -46.76 | 104.08 | 0.7453 | 443.0 | 370.5 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -19.81 | 262.64 | -50.24 | 117.03 | 0.8141 | 360.0 | 390.7 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -7.50 | 266.04 | -46.84 | 102.83 | 0.7440 | 347.0 | 257.4 | |
| 0.00 | 2.32 | 0.00 | 1.73 | -7.22 | 265.46 | -47.42 | 102.32 | 0.7500 | 115.0 | 99.2 | |
| 14.70 | 75.57 | 12.11 | 62.26 | -14.29 | 262.26 | -50.61 | 110.34 | 0.8010 | 914.4 | 302.0 | |
| 0.00 | 0.77 | 0.00 | 0.60 | -7.70 | 263.81 | -49.07 | 102.56 | 0.7693 | 496.0 | 432.9 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -10.04 | 262.91 | -49.97 | 105.29 | 0.7839 | 541.0 | 506.5 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -13.95 | 261.49 | -51.39 | 109.70 | 0.8077 | 475.0 | 384.1 | |
| 0.00 | 1.46 | 0.00 | 1.17 | -9.94 | 262.31 | -50.56 | 105.02 | 0.7899 | 644.0 | 498.9 | |
| 0.00 | 4.21 | 0.00 | 3.54 | -13.90 | 261.16 | -51.72 | 109.54 | 0.8108 | 340.0 | 300.9 | |
| 0.00 | 0.77 | 0.00 | 0.62 | -10.16 | 262.12 | -50.75 | 105.24 | 0.7924 | 475.0 | 397.1 | |
| 0.00 | 1.81 | 0.00 | 1.47 | -9.15 | 261.57 | -51.31 | 103.86 | 0.7960 | 74.0 | 158.5 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -18.73 | 257.88 | -55.00 | 114.18 | 0.8524 | 345.0 | 347.9 | |
| 0.00 | 2.49 | 0.00 | 2.11 | -11.94 | 260.35 | -52.52 | 106.96 | 0.8140 | 112.0 | 201.8 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -11.08 | 259.78 | -53.09 | 105.78 | 0.8177 | 332.0 | 252.4 | |
| 0.00 | 0.60 | 0.00 | 0.54 | -12.85 | 258.38 | -54.49 | 107.53 | 0.8345 | 268.0 | 191.1 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -12.63 | 256.23 | -56.64 | 106.77 | 0.8533 | -392.0 | -345.0 | |
| 0.43 | 1.29 | 0.40 | 1.20 | -9.61 | 256.26 | -56.61 | 103.28 | 0.8479 | -445.2 | -406.0 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -9.77 | 256.17 | -56.71 | 103.44 | 0.8491 | -331.0 | -270.3 | |
| 0.00 | 1.12 | 0.00 | 1.04 | -9.31 | 256.18 | -56.70 | 102.91 | 0.8483 | -564.0 | -459.0 | |
| 0.00 | 1.46 | 0.00 | 1.36 | -9.08 | 255.96 | -56.92 | 102.60 | 0.8499 | -492.0 | -435.6 | |
| 0.00 | 2.75 | 0.00 | 2.59 | -9.63 | 255.82 | -57.06 | 103.21 | 0.8520 | -19.0 | -42.8 | |
| 44.45 | 312.00 | 46.83 | 330.02 | -12.40 | 252.45 | -60.43 | 105.71 | 0.8843 | 840.3 | 160.4 | |
| 0.00 | 1.38 | 0.00 | 1.36 | -7.49 | 253.65 | -59.22 | 100.37 | 0.8680 | -455.0 | -369.9 | |
| 0.00 | 1.20 | 0.00 | 1.29 | -11.00 | 251.59 | -61.28 | 103.99 | 0.8891 | 514.0 | 452.9 | |
| 0.00 | 0.69 | 0.00 | 0.75 | -11.17 | 251.34 | -61.53 | 104.13 | 0.8913 | 254.0 | 200.6 | |
| 0.00 | 1.55 | 0.00 | 1.68 | -10.96 | 251.23 | -61.65 | 103.88 | 0.8919 | 383.0 | 372.8 | |
| 0.00 | 1.29 | 0.00 | 1.40 | -10.68 | 251.26 | -61.61 | 103.58 | 0.8913 | 425.0 | 362.9 | |
| 3.44 | 29.32 | 3.74 | 32.47 | -10.39 | 251.04 | -61.83 | 103.21 | 0.8926 | -309.5 | 208.3 | |
| 0.00 | 0.86 | 0.00 | 0.93 | -9.99 | 251.18 | -61.69 | 102.79 | 0.8911 | -121.0 | -186.6 | |
| 0.34 | -58.00 | 0.39 | -58.00 | -10.97 | 250.17 | -62.70 | 103.72 | 0.8998 | 530.2 | 999999 | |
| 55.97 | 732.60 | 93.20 | 1215.81 | -16.85 | 242.01 | -70.87 | 108.66 | 0.9557 | -573.8 | -122.6 | |
| 5.16 | 14.44 | 7.23 | 20.31 | -12.63 | 244.85 | -68.03 | 104.67 | 0.9369 | -106.1 | -198.4 | |
| 2.49 | -61.00 | 4.17 | -61.00 | -16.18 | 241.73 | -71.15 | 107.92 | 0.9566 | -228.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.97 | -12.12 | 244.55 | -68.32 | 104.09 | 0.9383 | -403.0 | -426.1 | |
| 4.90 | -61.00 | 7.57 | -61.00 | -14.44 | 243.00 | -69.87 | 106.30 | 0.9488 | -884.6 | 999999 | |
| 16.94 | -61.00 | 26.66 | -61.00 | -14.86 | 242.70 | -70.17 | 106.69 | 0.9507 | -578.2 | 999999 | |
| 1.72 | -61.00 | 2.69 | -61.00 | -14.17 | 242.83 | -70.04 | 106.00 | 0.9494 | -671.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 1.31 | -15.75 | 241.51 | -71.37 | 107.45 | 0.9573 | -259.0 | -210.8 | |
| 4.90 | -61.00 | 7.60 | -61.00 | -13.83 | 242.89 | -69.98 | 105.65 | 0.9489 | -880.8 | 999999 | |
| 9.72 | -61.00 | 15.32 | -61.00 | -13.57 | 242.52 | -70.35 | 105.33 | 0.9506 | -568.9 | 999999 | |
| 14.44 | -61.00 | 23.74 | -61.00 | -14.10 | 241.77 | -71.11 | 105.77 | 0.9549 | 119.9 | 999999 | |
| 7.39 | -61.00 | 13.21 | -61.00 | -14.39 | 240.35 | -72.53 | 105.88 | 0.9619 | 883.7 | 999999 | |
| 1.03 | -61.00 | 1.63 | -61.00 | -11.23 | 242.16 | -70.72 | 102.83 | 0.9509 | -29.2 | 999999 | |
| 0.00 | 2.41 | 0.00 | 4.57 | -14.34 | 239.31 | -73.56 | 105.71 | 0.9664 | 65.0 | 66.1 | |
| 4.04 | -61.00 | 7.53 | -61.00 | -13.69 | 239.55 | -73.32 | 105.06 | 0.9650 | 503.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 2.14 | -13.04 | 238.99 | -73.89 | 104.32 | 0.9671 | -397.0 | -363.4 | |
| 0.00 | 6.36 | 0.00 | 12.57 | -13.31 | 238.54 | -74.34 | 104.55 | 0.9692 | -582.0 | -468.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
