SDO HMI 2014-11-14 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.77 | 24.26 | 7.32 | 19.85 | 8.53 | 5.64 | 52.76 | 278.53 | 0.7982 | -201.6 | -151.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

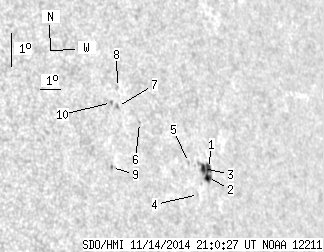

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.92 | 17.11 | 2.45 | 14.27 | 8.25 | 6.62 | 53.74 | 278.11 | 0.8083 | -496.4 | -470.6 | |
| 3.10 | -1.00 | 2.58 | -1.00 | 7.99 | 6.51 | 53.64 | 277.79 | 0.8072 | -632.4 | 999999 | |
| 2.75 | -1.00 | 2.29 | -1.00 | 8.27 | 6.36 | 53.49 | 278.14 | 0.8057 | -722.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.71 | 7.50 | 5.97 | 53.09 | 277.21 | 0.8014 | -601.0 | -504.3 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 8.47 | 5.65 | 52.78 | 278.44 | 0.7985 | -403.0 | -395.6 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 9.76 | 3.53 | 50.65 | 280.24 | 0.7768 | 309.0 | 272.0 | |
| 0.00 | 1.38 | 0.00 | 1.06 | 10.27 | 2.60 | 49.72 | 281.00 | 0.7671 | 631.0 | 563.9 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 10.84 | 2.72 | 49.85 | 281.72 | 0.7690 | 546.0 | 446.9 | |
| 0.00 | 1.12 | 0.00 | 0.85 | 8.47 | 1.97 | 49.09 | 278.69 | 0.7585 | 487.0 | 539.3 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 10.40 | 2.35 | 49.47 | 281.20 | 0.7644 | 646.0 | 576.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
