SDO HMI 2014-11-14 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.46 | 0.00 | 4.88 | 9.50 | 303.78 | -7.99 | 128.84 | 0.2647 | -44.5 | -62.8 | |
|
previous
or next observation for the same group /

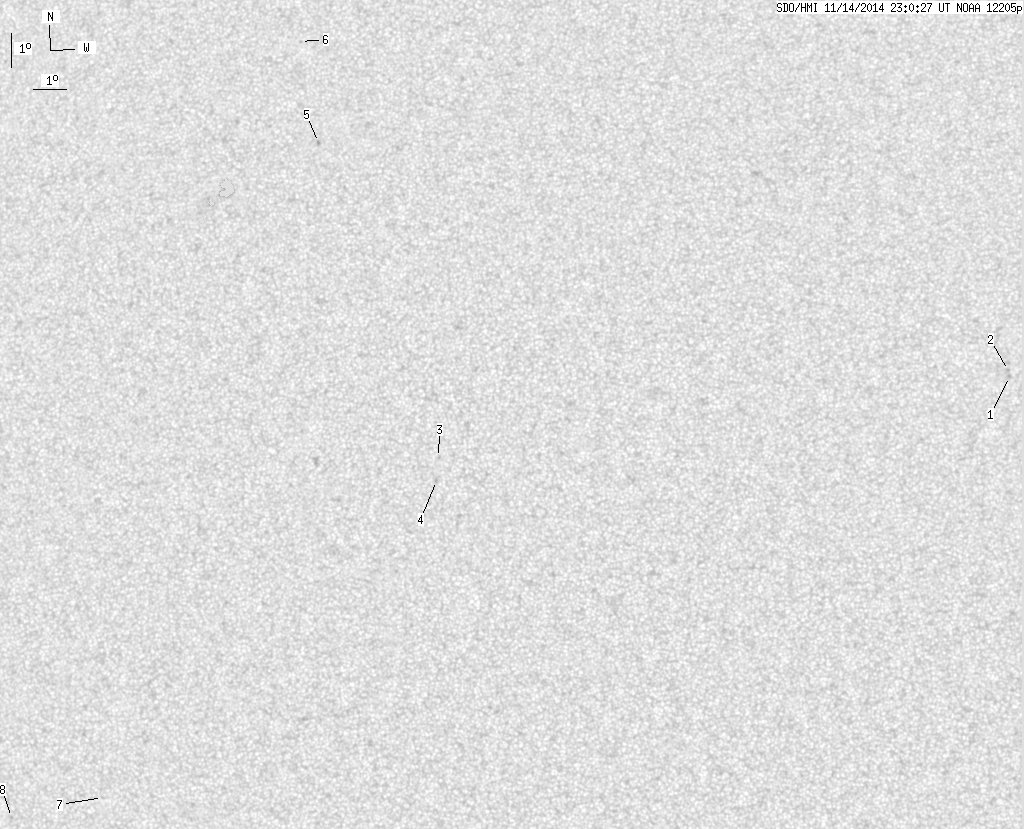

back to the solar disc SDO HMI 2014-11-14 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.66 | 319.93 | 8.16 | 314.19 | 0.1955 | -934.0 | -753.9 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.84 | 319.91 | 8.14 | 314.94 | 0.1973 | -895.0 | -755.1 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 8.25 | 302.70 | -9.07 | 58.89 | 0.1830 | 857.0 | 721.7 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 7.57 | 302.66 | -9.11 | 62.36 | 0.1780 | 846.0 | 629.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 17.72 | 298.55 | -13.22 | 40.27 | 0.3385 | -945.0 | -783.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 20.83 | 297.70 | -14.06 | 36.27 | 0.3855 | -760.0 | -588.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -1.95 | 292.49 | -19.28 | 103.89 | 0.3415 | 685.0 | 538.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -2.60 | 289.59 | -22.18 | 103.70 | 0.3899 | 790.0 | 597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
