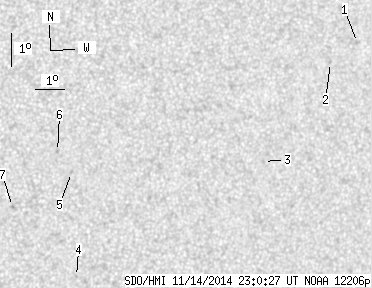

SDO HMI 2014-11-14 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.20 | 0.00 | 5.30 | -8.46 | 339.74 | 27.97 | 246.89 | 0.5059 | -153.9 | -89.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.24 | -5.75 | 345.42 | 33.66 | 255.58 | 0.5716 | 433.0 | 323.5 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -6.32 | 344.50 | 32.73 | 254.20 | 0.5607 | 710.0 | 532.6 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -9.25 | 342.38 | 30.61 | 247.98 | 0.5443 | 753.0 | 562.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -12.60 | 336.33 | 24.56 | 237.08 | 0.4853 | -678.0 | -559.0 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -9.42 | 335.89 | 24.12 | 242.62 | 0.4559 | -723.0 | -508.9 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -8.77 | 335.38 | 23.61 | 243.44 | 0.4445 | -791.0 | -622.4 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -10.41 | 334.03 | 22.26 | 238.72 | 0.4378 | -781.0 | -650.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
