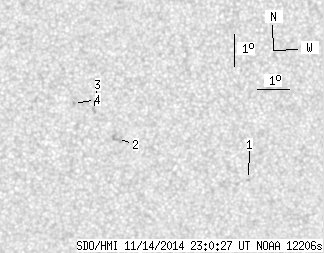

SDO HMI 2014-11-14 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.93 | 0.00 | 5.82 | -15.36 | 323.61 | 11.84 | 212.20 | 0.3713 | -467.5 | -550.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-14 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.75 | -16.85 | 327.67 | 15.90 | 217.97 | 0.4280 | 662.0 | 553.8 | |
| 0.00 | 5.85 | 0.00 | 3.12 | -15.51 | 323.41 | 11.64 | 211.71 | 0.3714 | -757.0 | -723.1 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -14.62 | 322.61 | 10.84 | 211.23 | 0.3525 | -840.0 | -667.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -14.40 | 321.98 | 10.21 | 210.07 | 0.3441 | -935.0 | -749.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
