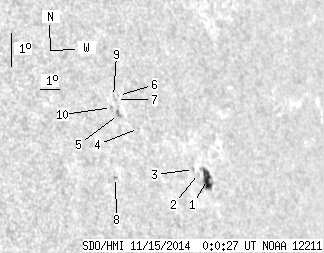

SDO HMI 2014-11-15 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.46 | 24.34 | 8.25 | 20.64 | 8.70 | 5.47 | 54.26 | 278.68 | 0.8135 | -148.5 | 23.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.46 | 15.48 | 8.25 | 13.49 | 8.15 | 6.66 | 55.45 | 277.91 | 0.8253 | -601.7 | -325.4 | |
| 0.00 | 0.69 | 0.00 | 0.59 | 8.34 | 6.23 | 55.01 | 278.17 | 0.8211 | -507.0 | -539.8 | |
| 0.00 | 0.86 | 0.00 | 0.74 | 8.47 | 6.00 | 54.78 | 278.34 | 0.8189 | -468.0 | -472.2 | |
| 0.00 | 0.69 | 0.00 | 0.56 | 9.80 | 3.49 | 52.27 | 280.16 | 0.7941 | 219.0 | 197.6 | |
| 0.00 | 2.41 | 0.00 | 1.92 | 10.26 | 2.62 | 51.40 | 280.82 | 0.7852 | 584.0 | 550.2 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 10.83 | 2.75 | 51.53 | 281.53 | 0.7871 | 275.0 | 231.0 | |
| 0.00 | 0.60 | 0.00 | 0.48 | 10.71 | 2.62 | 51.41 | 281.39 | 0.7857 | 567.0 | 444.1 | |
| 0.00 | 1.29 | 0.00 | 1.01 | 8.39 | 2.08 | 50.87 | 278.47 | 0.7781 | 655.0 | 530.0 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 10.81 | 2.50 | 51.28 | 281.53 | 0.7845 | 443.0 | 435.0 | |
| 0.00 | 1.20 | 0.00 | 0.95 | 10.48 | 2.33 | 51.11 | 281.13 | 0.7823 | 634.0 | 528.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
